AISENS ASPC-500ATX-PSE power supply unit 20+4 pin ATX
AISENS ASPC-500ATX-PSE power supply unit 20+4 pin ATX
- Brand:
- Aisens
- Part number:
- ASPC-500ATX-PSE
- EAN:
- 8435739905104
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: AISENS EUROPE S.L., Calle Laguna del Marquesado 39-41, Nave 1 (P.I. La Resina), 28021 Madrid, España · aisenstech.com
Description
> OEM ATX power supply ideal for PC repairs.
> Power: 500W
> Includes power button: Yes
> Version: ATX 2.0
> Protections: OCP, OVP, UVP, SCP, OPP, OTP
> Cooling: 120mm silent fan with automatic speed control
> Rails: 1x +12V

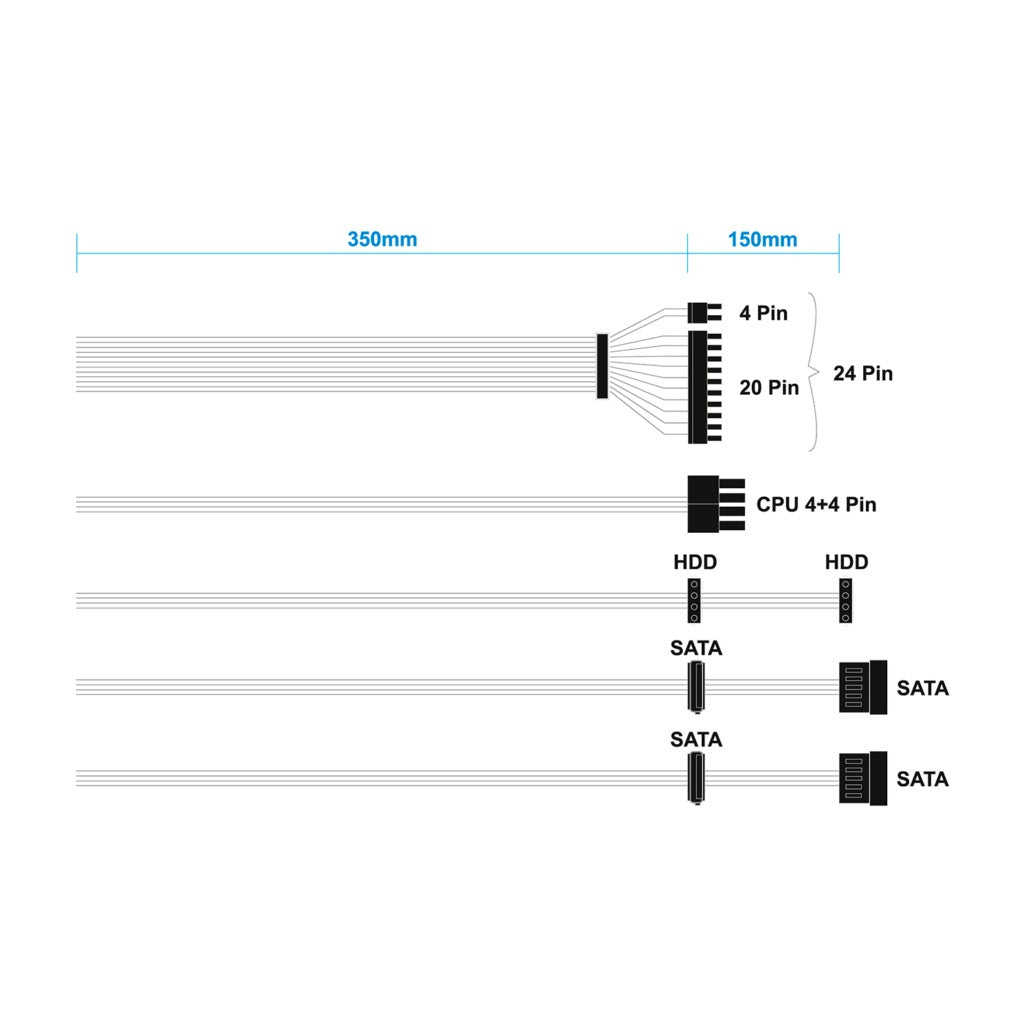

> Connectors:
> 1 ATX connector (20 + 4 pin) 350mm
> 1 CPU connector (4 + 4 pin) 350mm
> 2 Molex connectors 350+150mm
> 4 SATA connectors (350+150mm)x2
> Includes 1.2m EU power cord
> Certifications: CE / RoHS

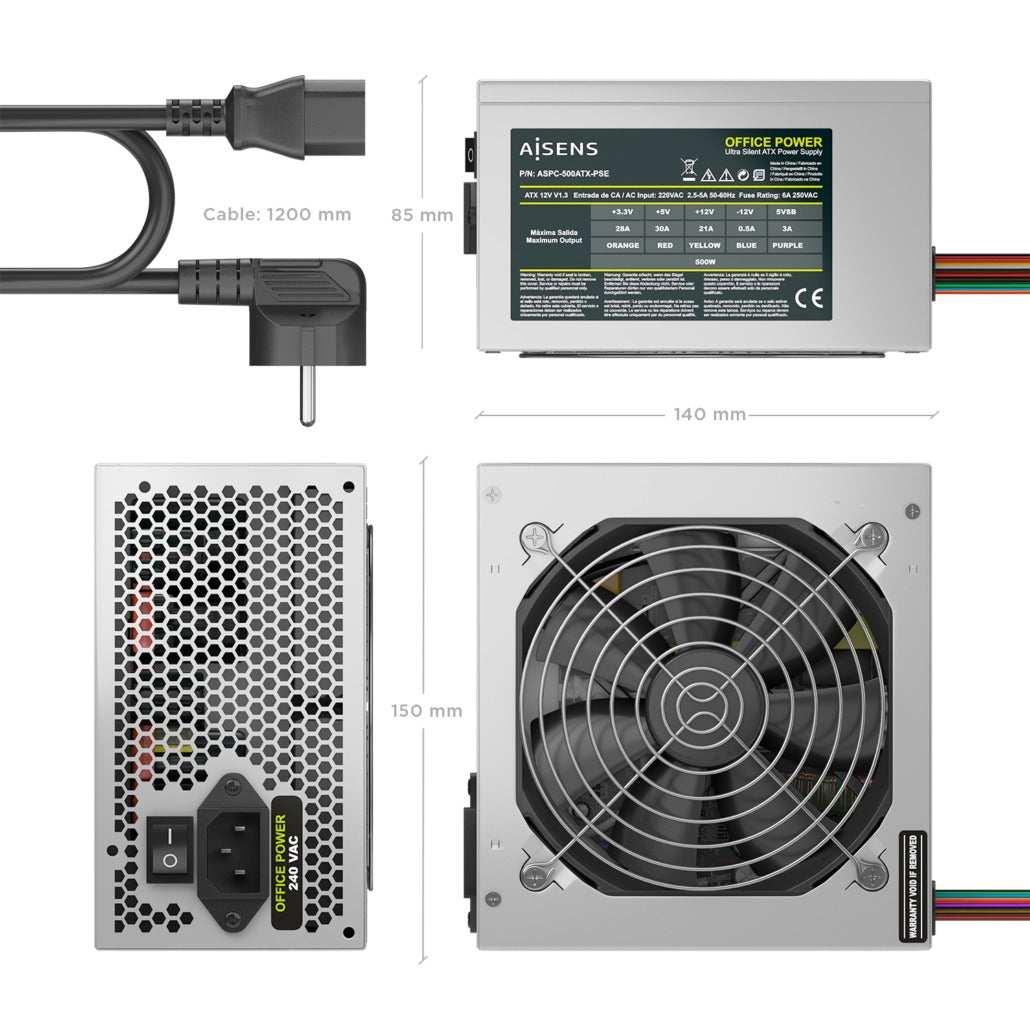

> Dimensions: 140x150x85mm
> Color: Silver
Package Contents:
> 1 x ATX Power Supply
> 1 x 1.2m EU Power Cord
> 1 x User manual
500W ATX Power Supply with OEM Power Cord, Silver
- 500 W 220 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX
- 12 cm
- Silver
Specifications
| Power management | |
|---|---|
| Total power | 500 W |
| AC input voltage | 220 V |
| AC input frequency | 50/60 Hz |
| Input current | 2.5 - 5 A |
| Max output current (+3.3V) | 28 A |
| Max output current (+12V) | 21 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Overcurrent, Overvoltage, Undervoltage, Short circuit, Overpower, Overtemperature |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 350,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 350,500 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 35 cm |
| ATX power connector (20+4 pin) | Yes |
| Performance | |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.0 |
| Design | |
| Product color | Silver |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Packaging content | |
| Cables included | AC |
| Regulatory approvals | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 85 mm |
| Packaging data | |
| User manual | Yes |
| Package width | 157 mm |
| Package depth | 230 mm |
| Package height | 95 mm |
| Package weight | 1.18 kg |
| Package type | Box |
| Logistics data | |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 265 mm |
| Master (outer) case net weight | 11.8 kg |
| Master (outer) case volume | 43944 cm³ |
| Quantity per master (outer) case | 10 piece(s) |
| Other features | |
| Package volume | 3430 cm³ |
