AISENS ASUC-7P032-GR laptop docking station wired USB
AISENS ASUC-7P032-GR laptop docking station wired USB
- Brand:
- Aisens
- Part number:
- ASUC-7P032-GR
- EAN:
- 8435739903605
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: AISENS EUROPE S.L., Calle Laguna del Marquesado 39-41, Nave 1 (P.I. La Resina), 28021 Madrid, España · aisenstech.com
Description
USB-C to 1xHDMI, 1xRJ45, 1xUSB-A 10G, 2xUSB-C 10G, 1xSD card reader, 1xMICRO SD card reader converter.
This multi-function product features an aluminum housing, making it very lightweight, compact in size, and modern in design.
It is excellent for connecting expansion accessories to computers with a USB-C interface.
Turn your laptop into a powerful workstation wherever you are.
Connect a display via the HDMI port with a resolution of up to 3840×2160@60Hz. The Ethernet port allows you to reliably access a wired network. Connect your mouse, keyboard, external hard drive, etc., and power your smartphone, e-book reader, etc., using the USB-A and/or USB-C ports. You can also read memory cards.
Never carry multiple single-function adapters again!
7-in-1 USB-C Dock, USB-C to 1xHDMI, 1xRJ45, 1xUSB-A 10G, 2xUSB-C 10G, 1xSD, 1xMicroSD, Gray, 20cm
- Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Ethernet 10, 100, 1000 Mbit/s
- MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, RS-MMC, SD, SDHC, SDXC
- Plug and Play
Specifications
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Microphone in | No |
| HDCP | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, RS-MMC, SD, SDHC, SDXC |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 Pixels |
| Maximum refresh rate | 60 Hz |
| Product color | Gray |
| Plug and Play | Yes |
| Charging function | Yes |
| Housing material | Aluminum |
| Power | |
| Power source type | USB |
| Power connector | USB Type-C |
| USB cable length | 0.2 m |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | iPadOS |
| Weight & dimensions | |

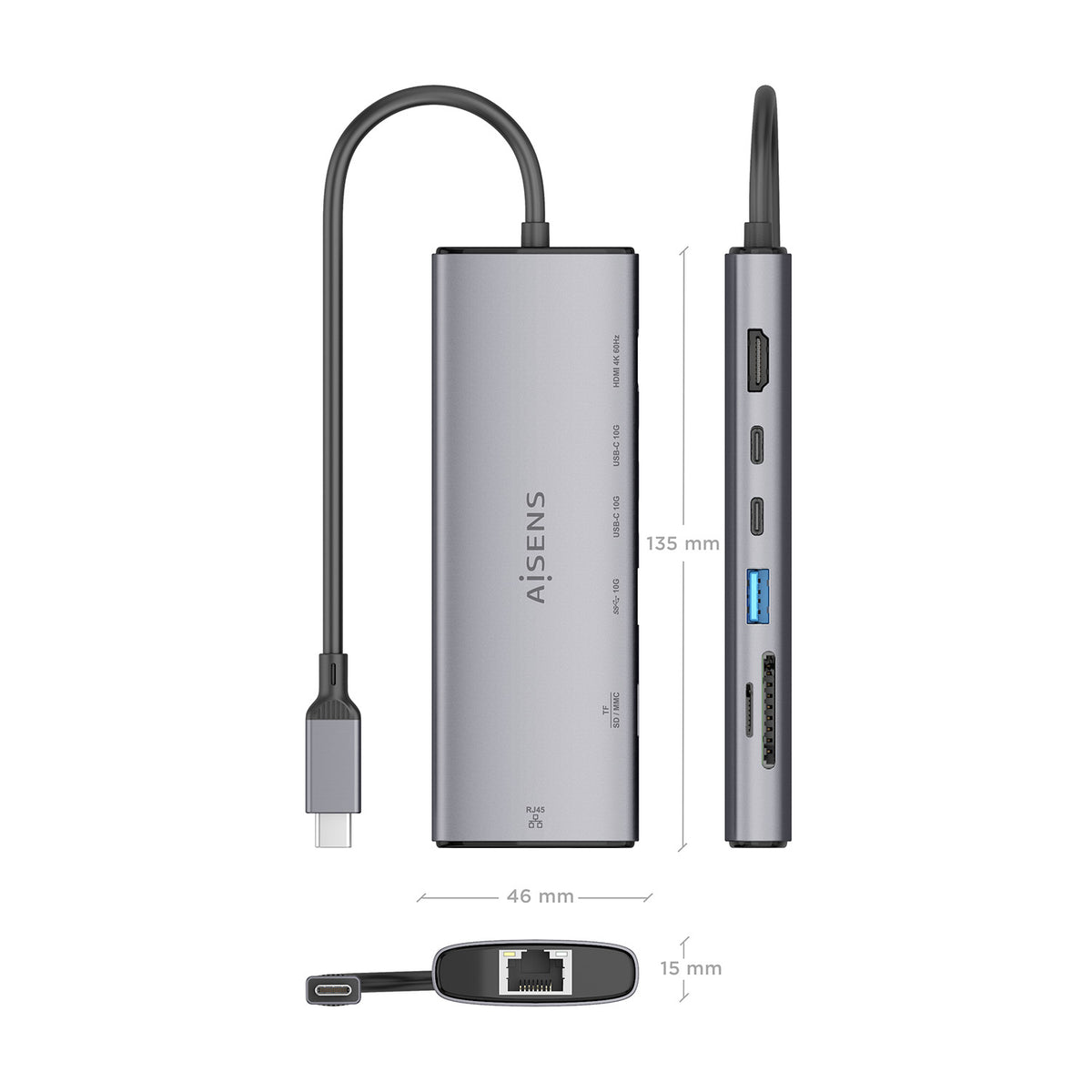

| Width | 46 mm |
| Depth | 135 mm |
| Height | 15 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 190 mm |
| Package depth | 103 mm |
| Package height | 20 mm |
| Package weight | 136 g |
| Packaging content | |
| User guide | Yes |
| Technical details | |
| Package volume | 391 cm³ |
| Master (outer) case volume | 29700 cm³ |
| Sustainability certificates | CE, RoHS |
| Logistics data | |
| Quantity per master (outer) case | 50 pc(s) |
| Master (outer) case width | 220 mm |
| Master (outer) case length | 540 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case net weight | 6.8 kg |
| Other features | |
| Chipset | RTL8153B |
