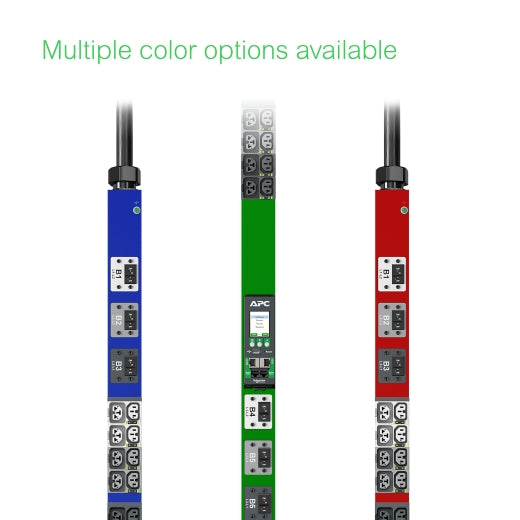

APC NetShelter Rack PDU Advanced power distribution unit
€3.647,99
€3.014,87 excl. VAT
· VAT 21 % included in the price
Skip to product information
APC NetShelter Rack PDU Advanced power distribution unit
- Brand:
- APC
- Part number:
- APDU10250SM
- EAN:
- 0731304439707
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
€3.647,99
€3.014,87 excl. VAT
· VAT 21 % included in the price
Manufacturer: Schneider Electric IT Logistics Europe Limited, City East Business Park, Ballybrit, Galway, Irlanda · www.se.com
Description
- Three-phase Regulated, Outlet-metered, Switched 0U Black
- LCD
- 48 AC outlets C13 coupler, C15 coupler, C19 coupler, C21 coupler
- 11500 W
Specifications
| Design | |
|---|---|
| PDU types | Regulated, Outlet-metered, Switched |
| Type | Three-phase |
| Form factor | Rack-mount or Rack-mount |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product color | Black |
| Display | LCD |
| On/off switch | Yes |
| Regulatory approval | CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1 |
| Ports & interfaces | |
| AC outlets quantity | 48 AC outlets |
| Connector | IEC 60309 |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports quantity | 2 |
| USB ports quantity | 1 |
| Features | |
| Daisy chain | Yes |
| Reset button | Yes |
| LED indicators | Activity, Network, Power |
| Color-coded power strips | Yes |
| Cable length | 1.8 m |
| Security algorithms supported | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3 |
| Password protection | Yes |
| Compatible products | Compatible with most NetShelter SX enclosures and third-party racks |
| Management features | |
| Monitoring | Current, Humidity, Power, Temperature, Voltage |
| Control output | Lock, Recycle, Turn off, Turn on |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | Network, USB |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz | Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 11500 VA |
| Number of phases | 3 |
| Maximum total current per phase | 16 A |
| Power protection features | Overload |
| Maximum power | 11500 W |
| Overload protection | Yes |
| Regulatory certifications | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature range | -5 - 60 °C |
| Storage temperature range | -25 - 65 °C |
| Operating relative humidity range | 5 - 95% |
| Storage relative humidity range | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Operating temperature range | 23 - 140 °F |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1490 mm |
| Weight | 7.7 kg |
| Packaging data | |
| Package weight | 9.7 kg |
| Package width | 208 mm |
| Package depth | 116 mm | Package height | 1720 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 12176.66 |
