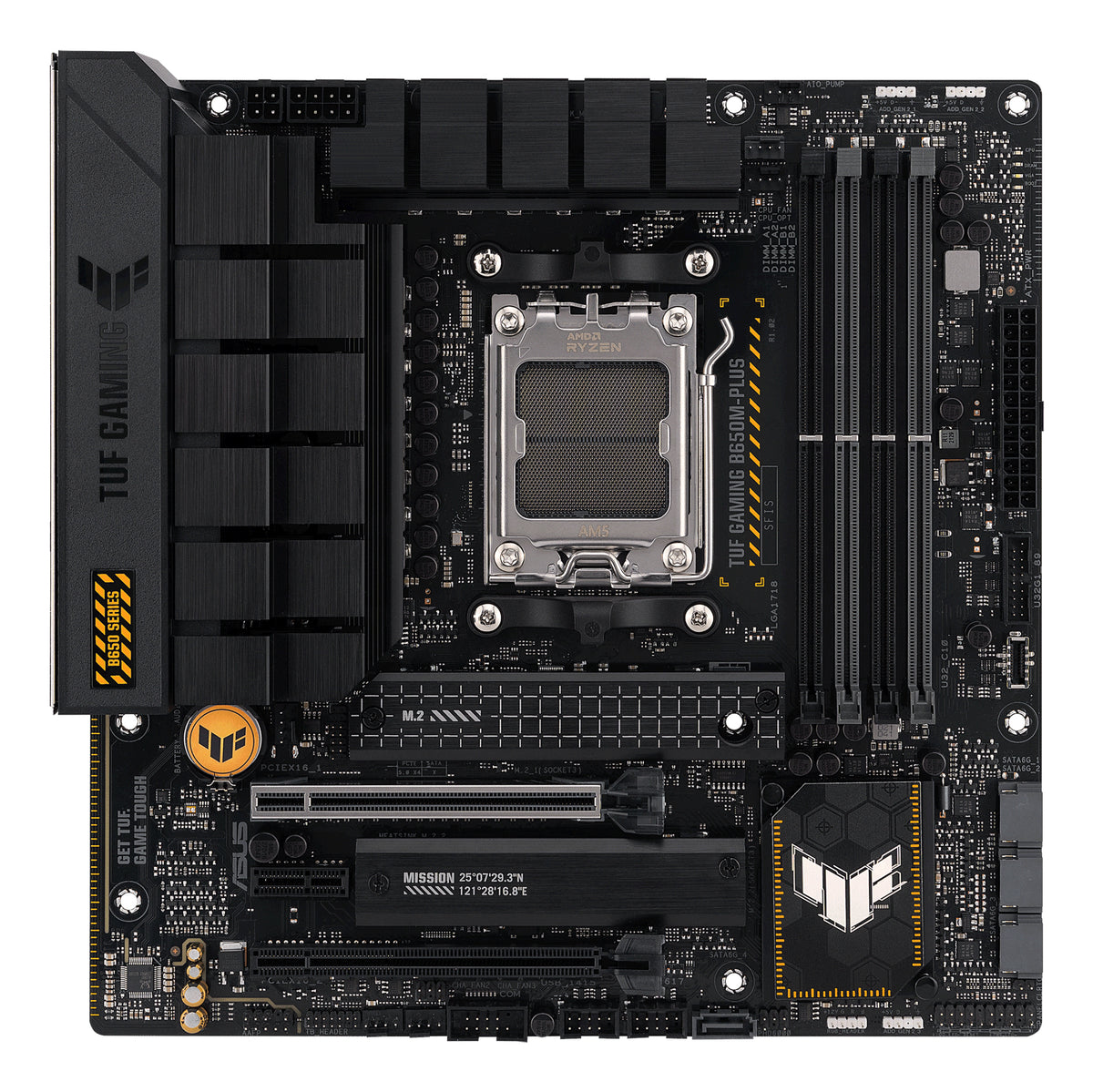

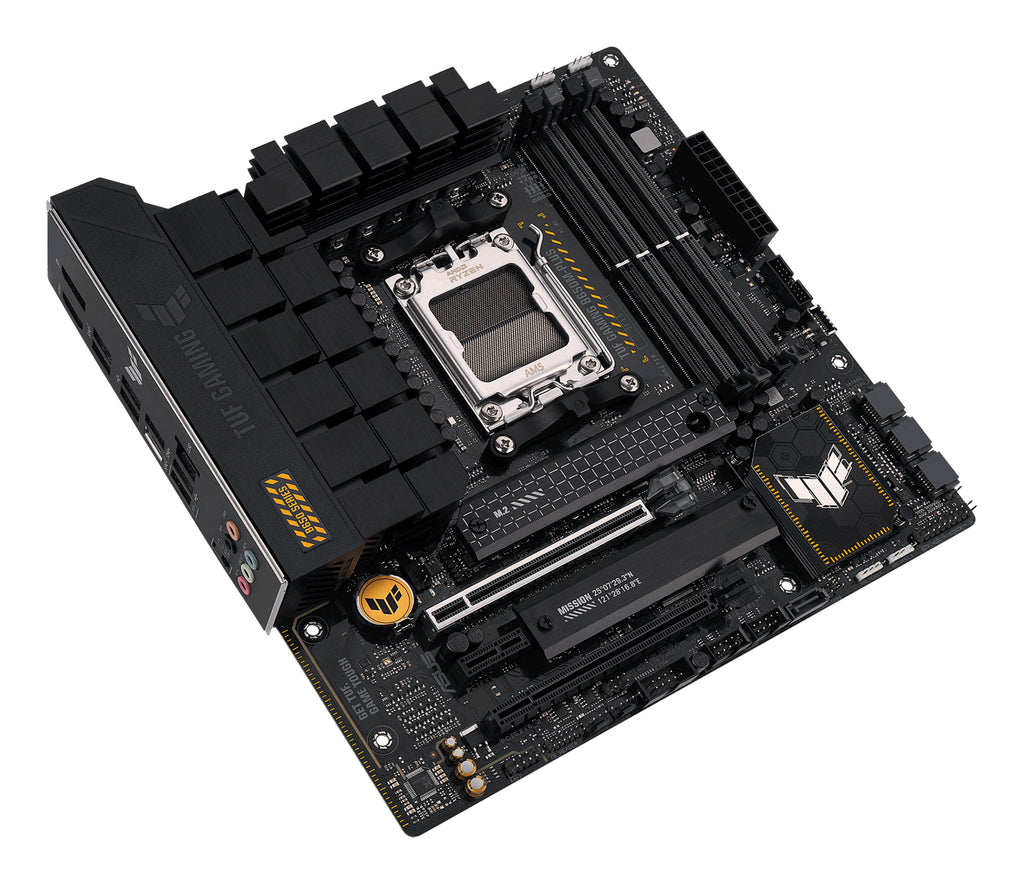

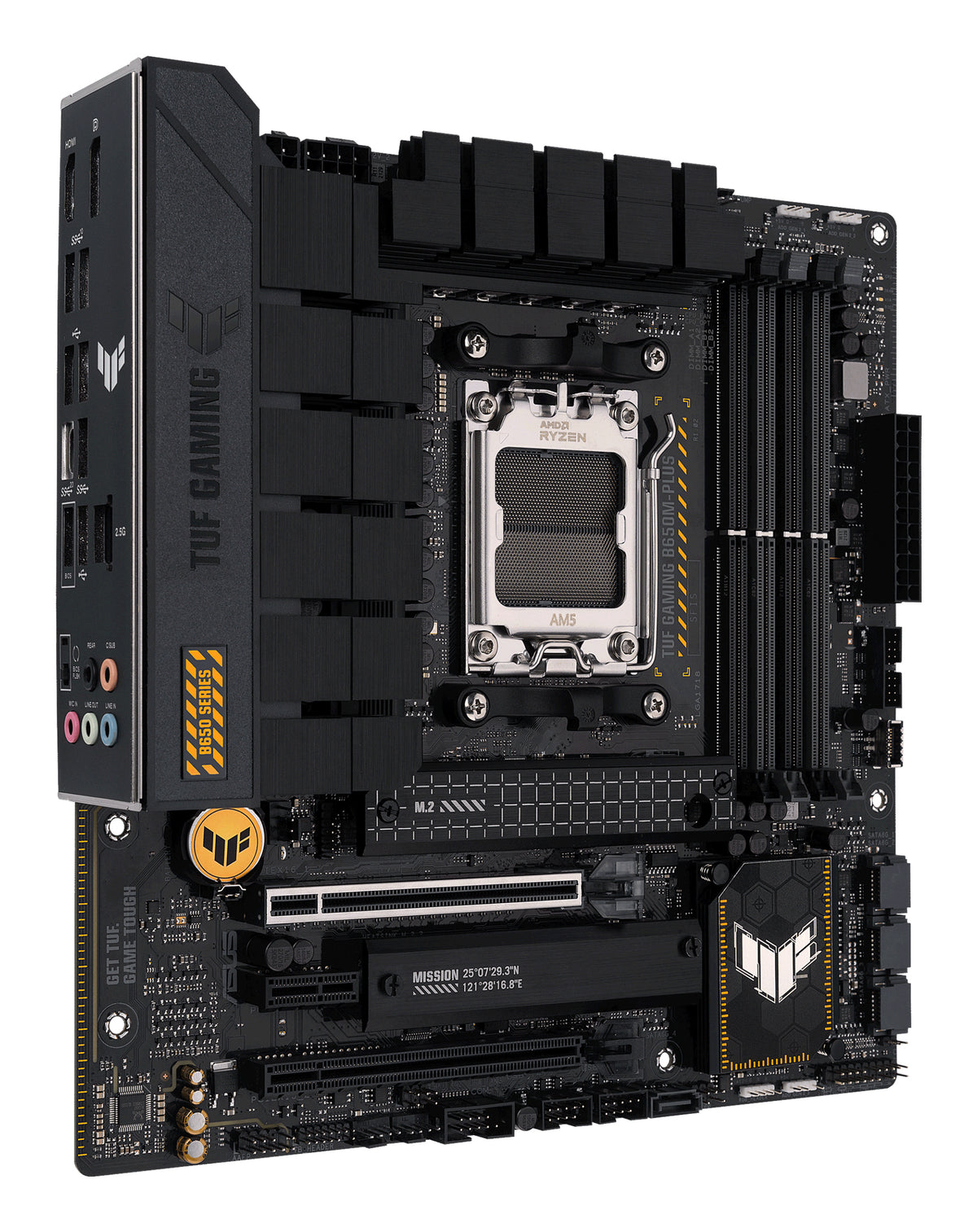

ASUS TUF GAMING B650M-PLUS AMD B650 Socket AM5 micro ATX
€173,99
€143,79 excl. VAT
· VAT 21 % included in the price
Skip to product information
ASUS TUF GAMING B650M-PLUS AMD B650 Socket AM5 micro ATX
- Brand:
- Asus
- Part number:
- 90MB1BG0-M0EAY0
- EAN:
- 4711081912392
- Model:
- B650M-PLUS
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
€173,99
€143,79 excl. VAT
· VAT 21 % included in the price
Manufacturer: ASUSTeK Computer Inc., 15, Li-Te Rd., Beitou, Taipei 112, Taiwán · www.asus.com
EU responsible person: ASUS Computer GmbH, Harkortstraße 21-23, 40880 Ratingen, Alemania
Description
- AMD Socket AM5 AMD Ryzen 7000 Series
- PC micro ATX AMD B650 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support
- BIOS types: UEFI AMI 256 MB/s
- 2.5 Gigabit Ethernet
Specifications
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC compatibility | ECC and non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum supported memory clock speed | 6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| 12 V power connector | Yes |
| RGB LED strip header | Yes |

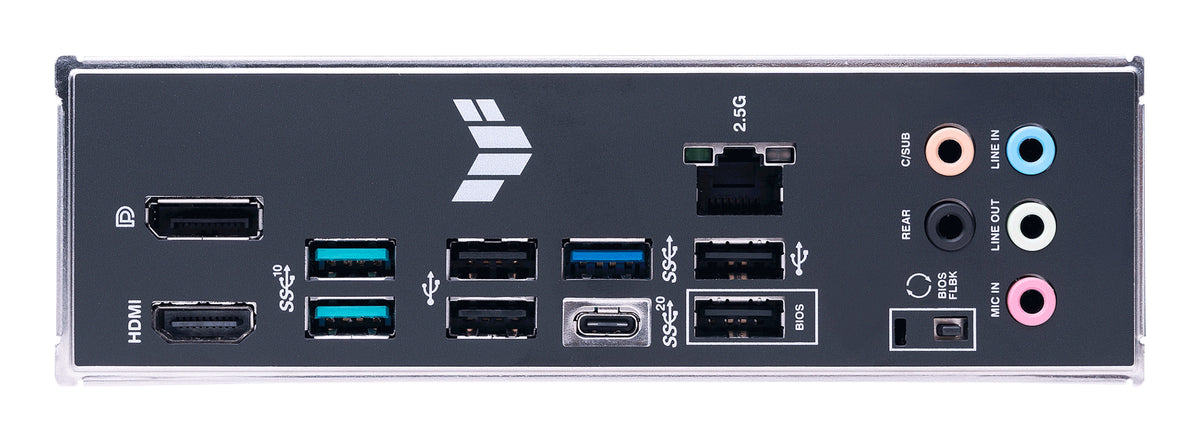

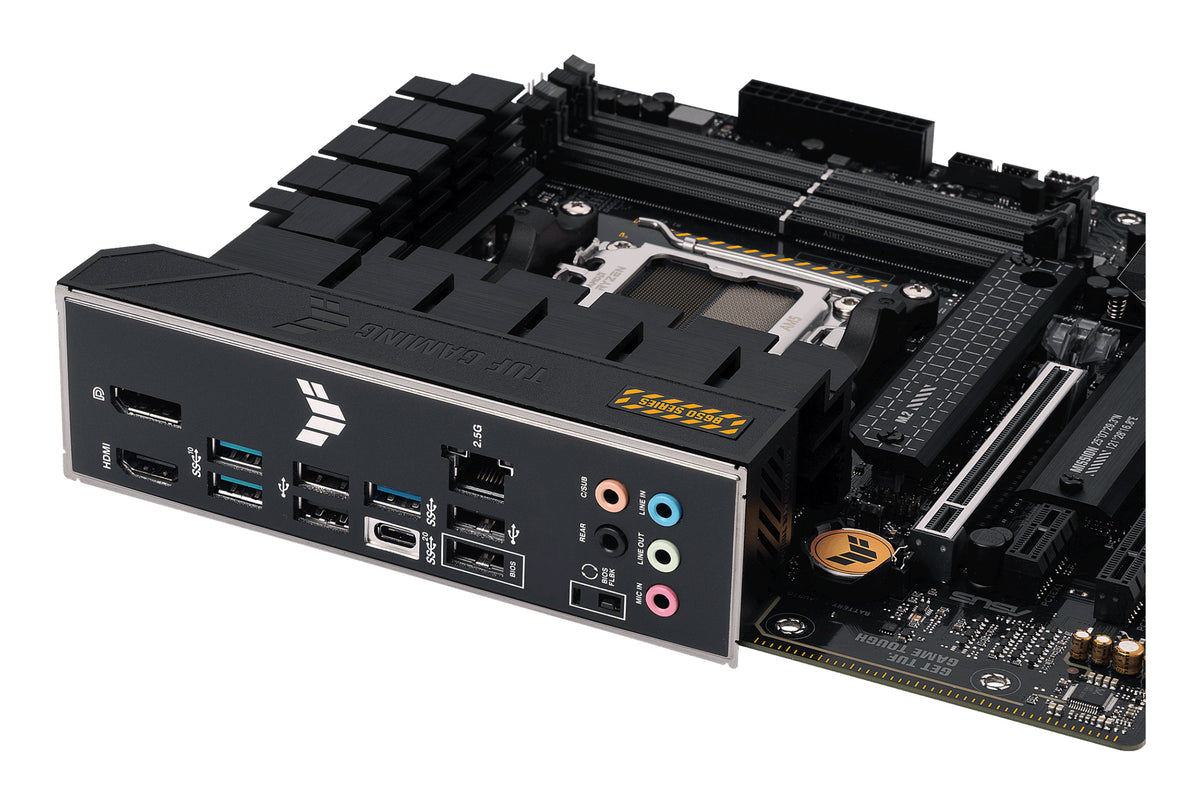

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
| Ethernet | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
| Chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Form factor | micro ATX |
| Chipset family | AMD |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 x64 |
| Expansion slots | |
| PCI Express x4 (Gen 1.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
| BIOS types | UEFI AMI |
| BIOS memory size | 256 MB/s |
| Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Other features | |
| BIOS FlashBack button | Yes |
