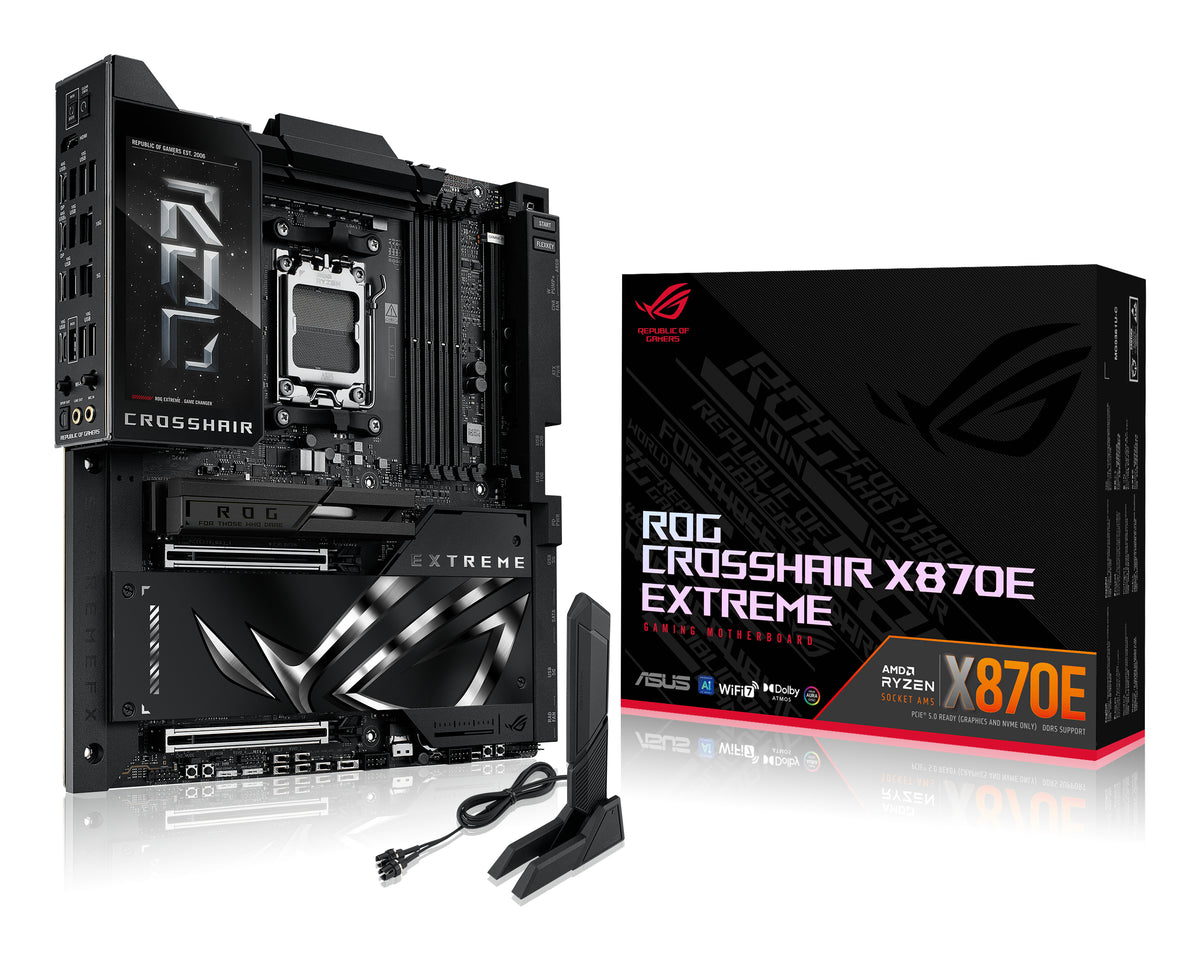

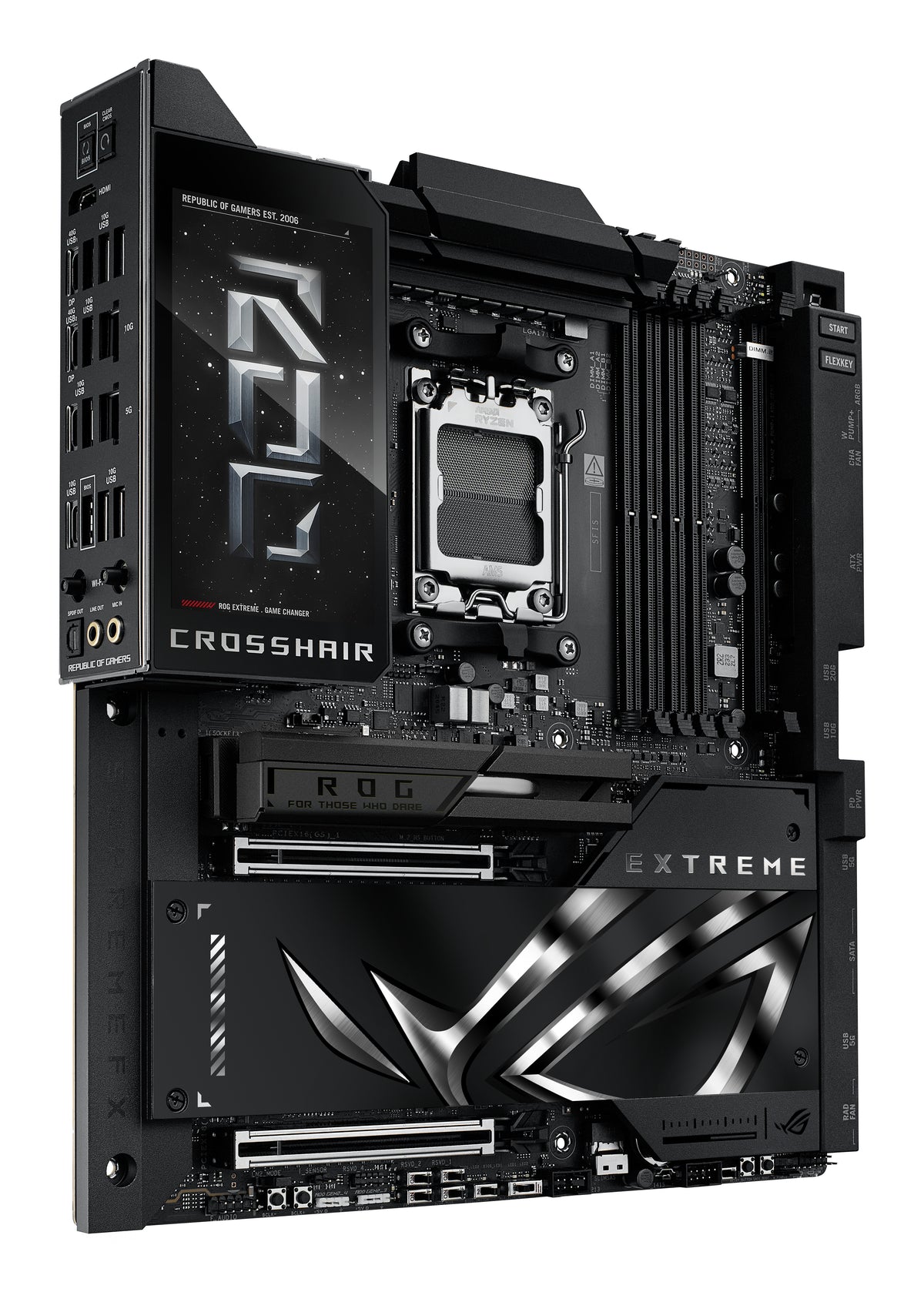

ASUS ROG CROSSHAIR X870E EXTREME AMD Socket AM5 Extended ATX
€1.247,99
€1.031,40 excl. VAT
· VAT 21 % included in the price
Skip to product information
ASUS ROG CROSSHAIR X870E EXTREME AMD Socket AM5 Extended ATX
- Brand:
- Asus
- Part number:
- 90MB1LB0-M0EAY0
- EAN:
- 4711387984963
- Model:
- X870E
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
€1.247,99
€1.031,40 excl. VAT
· VAT 21 % included in the price
Manufacturer: ASUSTeK Computer Inc., 15, Li-Te Rd., Beitou, Taipei 112, Taiwán · www.asus.com
EU responsible person: ASUS Computer GmbH, Harkortstraße 21-23, 40880 Ratingen, Alemania
Description
- AMD Zócalo AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX extendida AMD X870E Realtek ALC4082 7.1 canales
- DDR5-SDRAM 4 DIMM Memoria interna máxima: 256 GB
- HDD & SSD M.2, SATA III, SlimSAS Compatibilidad con RAID Número de unidades de almacenamiento compatibles: 10
- Tipos de BIOS: UEFI AMI 512 MB/s
- 5 Gigabit Ethernet, 10 Gigabit Ethernet Wifi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
| Procesador | |
|---|---|
| Fabricante de procesador | AMD |
| Socket de procesador | Zócalo AM5 |
| Procesador compatible | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Sockets de procesador soportados | Zócalo AM5 |
| Memoria | |
| tipos de memoria compatibles | DDR5-SDRAM |
| Número de ranuras de memoria | 4 |
| Tipo de ranuras de memoria | DIMM |
| Canales de memoria | Doble canal |
| Compatibilidad de ECC | ECC y no ECC |
| Memoria interna máxima | 256 GB |
| Memoria sin buffer | Si |
| Reguladores del almacenaje | |
| Tipos de unidades de almacenamiento admitidas | HDD & SSD |
| Interfaces de disco de almacenamiento soportados | M.2, SATA III, SlimSAS |
| Número de unidades de almacenamiento compatibles | 10 |
| Compatibilidad con RAID | Si |
| Niveles RAID | 0, 1, 5, 10 |
| Gráficos | |
| Soporte para proceso paralelo | No compatible |
| Adaptador gráfico incorporado | No |
| Interno I/O | |
| USB 2.0, conectores | 2 |
| Conectores USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
| Conectores USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
| Conectores USB 3.2 Gen 2x2 | 1 |
| Número de conectores SATA III | 4 |
| Conector de audio en panel frontal | Si |
| Conector de panel delantero | Si |
| Conector de potencia ATX (24 pines) | Si |
| Conector de ventilador CPU | Si |
| Número de conectores a ventilador de chasis | 2 |
| Conector de energía EPS (8-pin) | Si |
| Conector eléctrico de 12 V | Si |
| Conector para tiras LED RGB | Si |
| Panel trasero Puertos de I/O (entrada/salida) | |
| Cantidad de puertos tipo A USB 3.2 Gen 2 (3.1 Gen 2) | 8 |
| Cantidad de puertos tipo C USB 3.2 Gen 2 (3.1 Gen 2) | 2 |
| Número de puertos USB4 Gen 3×2 | 2 |
| Ethernet LAN (RJ-45) cantidad de puertos | 2 |
| Puerto de ratón PS/2 | 1 |
| Número de puertos HDMI | 1 |
| Puerto de salida S/PDIF | Si |
| Conector para antena WiFi-AP | 1 |
| Conexión | |
| Ethernet | Si |
| Tipo de interfaz ethernet | 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Wifi | Si |
| Estándar Wi-Fi | Wi-Fi 7 (802.11be) |
| Wi-Fi estándares | Wi-Fi 7 (802.11be) |
| Bluetooth | Si |
| Versión de Bluetooth | 5.4 |
| Características | |
| Chipset | AMD X870E |
| Chip de sonido | Realtek ALC4082 |
| Canales de salida de audio | 7.1 canales |
| Color del producto | Negro |
| Componente para | PC |
| Factor de forma | ATX extendida |
| Familia del chipset | AMD |
| Sistema operativo Windows soportado | Windows 11 |
| Ranuras de expansión | |
| Ranuras PCI Express x16 (Gen 4.x) | 2 |
| Ranuras PCI Express x16 (Gen 5.x) | 2 |
| Número de ranuras M.2 (M) | 5 |
| Tamaño más grande de llave de la primera M.2 | 22110 |
| Generación más alta de PCI Express de la primera M.2 | 5.0 |
| Tamaño más grande de llave de la segunda M.2 | 2280 |
| Generación más alta de PCI Express de la segunda M.2 | 5.0 |
| Tamaño más grande de llave de la tercera M.2 | 22110 |
| Generación más alta de PCI Express de la tercera M.2 | 5.0 |
| Tamaño más grande de llave de la cuarta M.2 | 22110 |
| Generación más alta de PCI Express de la cuarta M.2 | 4.0 |
| Tamaño más grande de llave de la quinta M.2 | 22110 |
| Generación más alta de PCI Express de la quinta M.2 | 4.0 |
| BIOS | |
| Tipos de BIOS | UEFI AMI |
| BIOS, tamaño de memoria | 512 MB/s |
| Empaquetado | |
| Ancho del paquete | 380 mm |
| Profundidad del paquete | 320 mm |
| Altura del paquete | 125 mm |
| Peso del paquete | 5,66 kg |
| Peso y dimensiones | |
| Ancho | 305 mm |
| Profundidad | 277 mm |
| Contenido del embalaje | |
| Cables incluidos | SATA |
| Antena incluida | Si |
| Controladores incluidos | Si |
| Otras características | |
| Salida de audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| Características especiales |
Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports * Specifications vary by CPU types. ** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled. ** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode. ** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled. |
| Otras características | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) NitroPath DRAM Technology *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Producción gráfica | 1 x HDMITM port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a **** VGA resolution support depends on processors' or graphic cards' resolution. |
