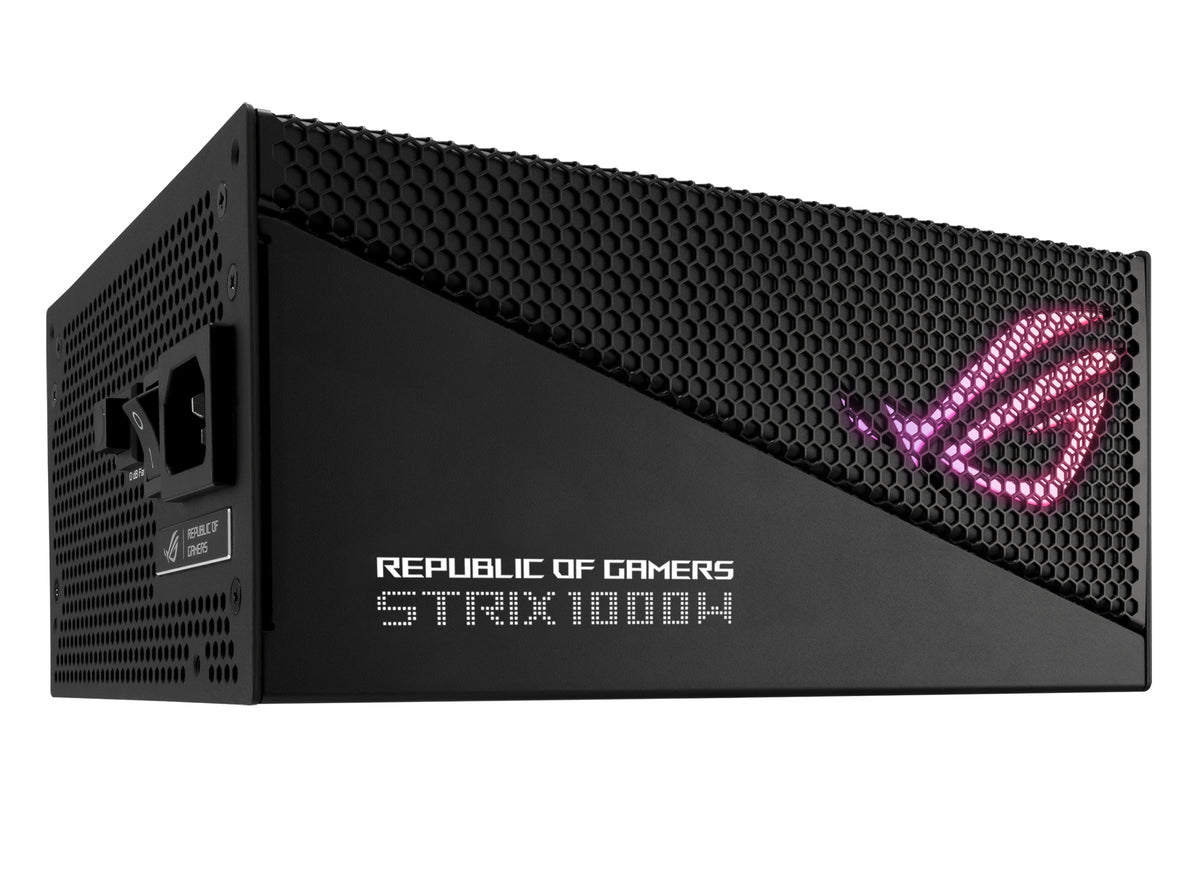

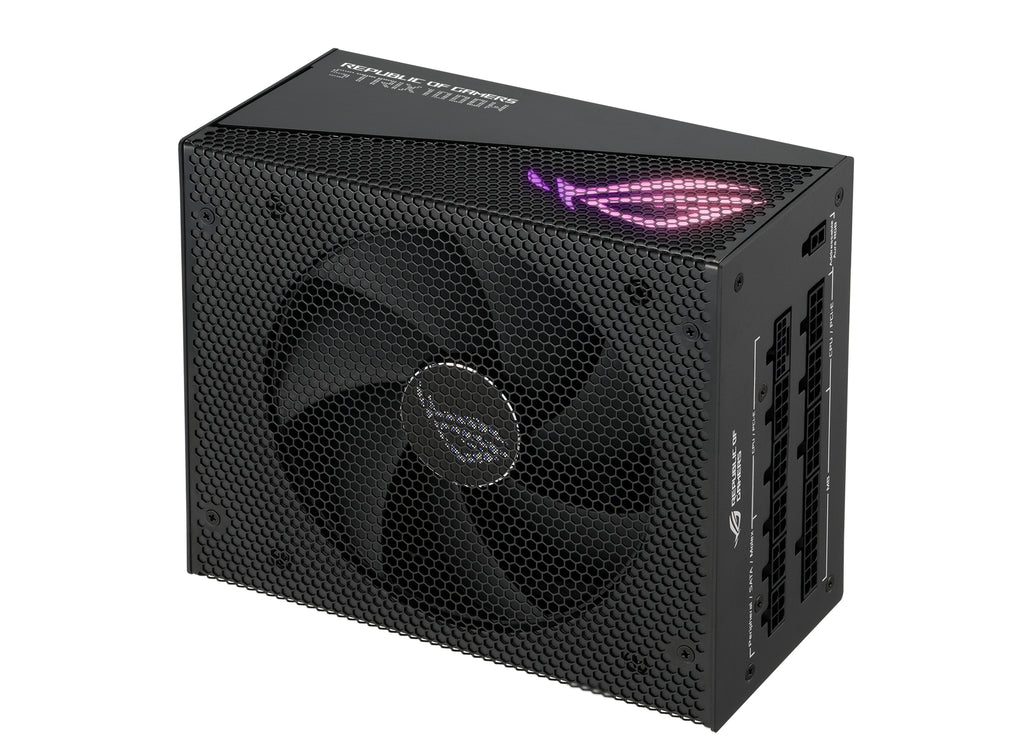

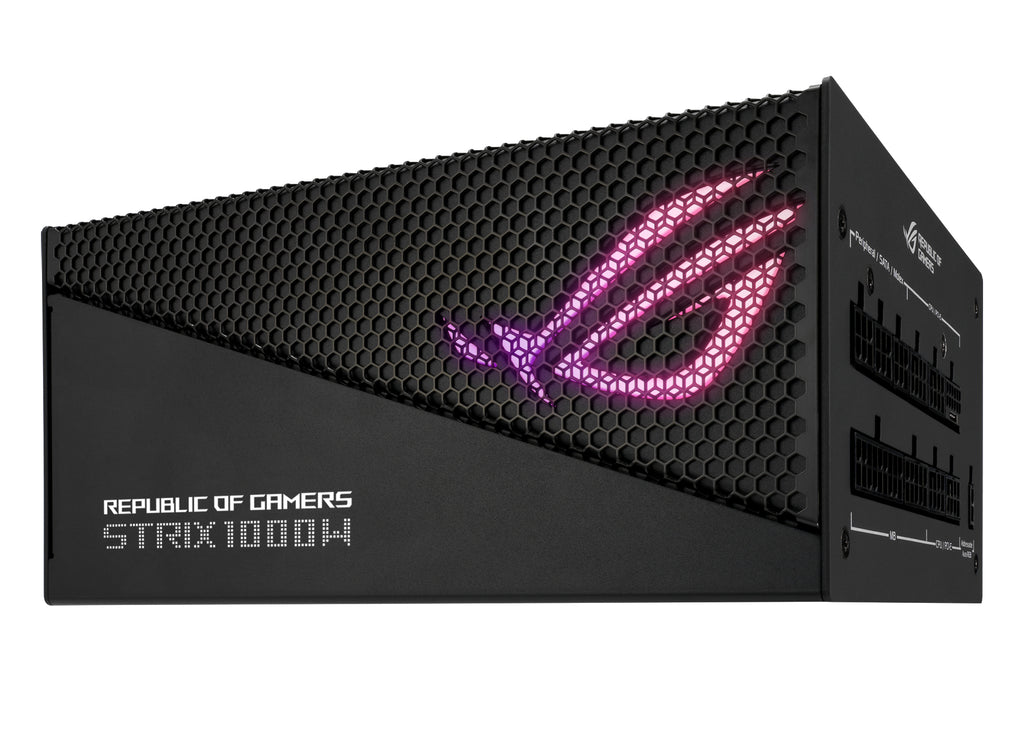

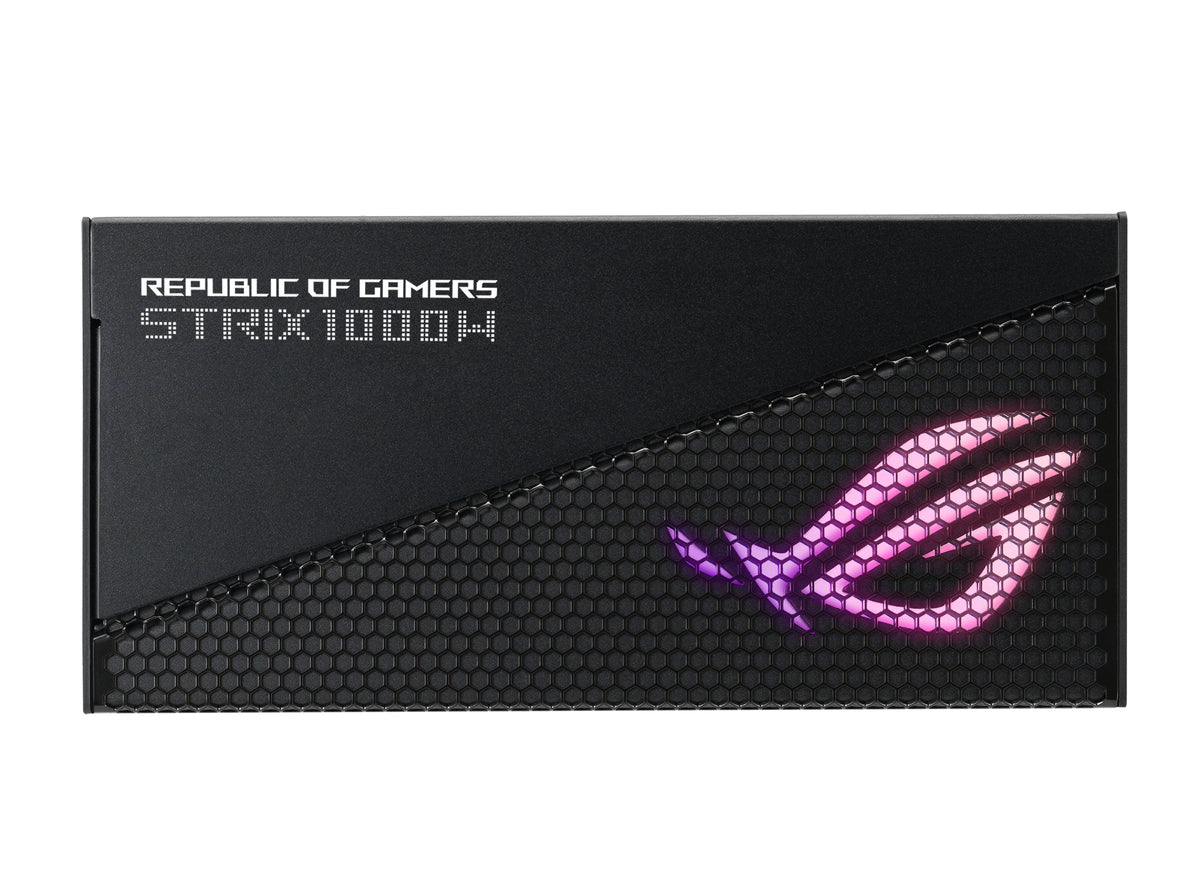

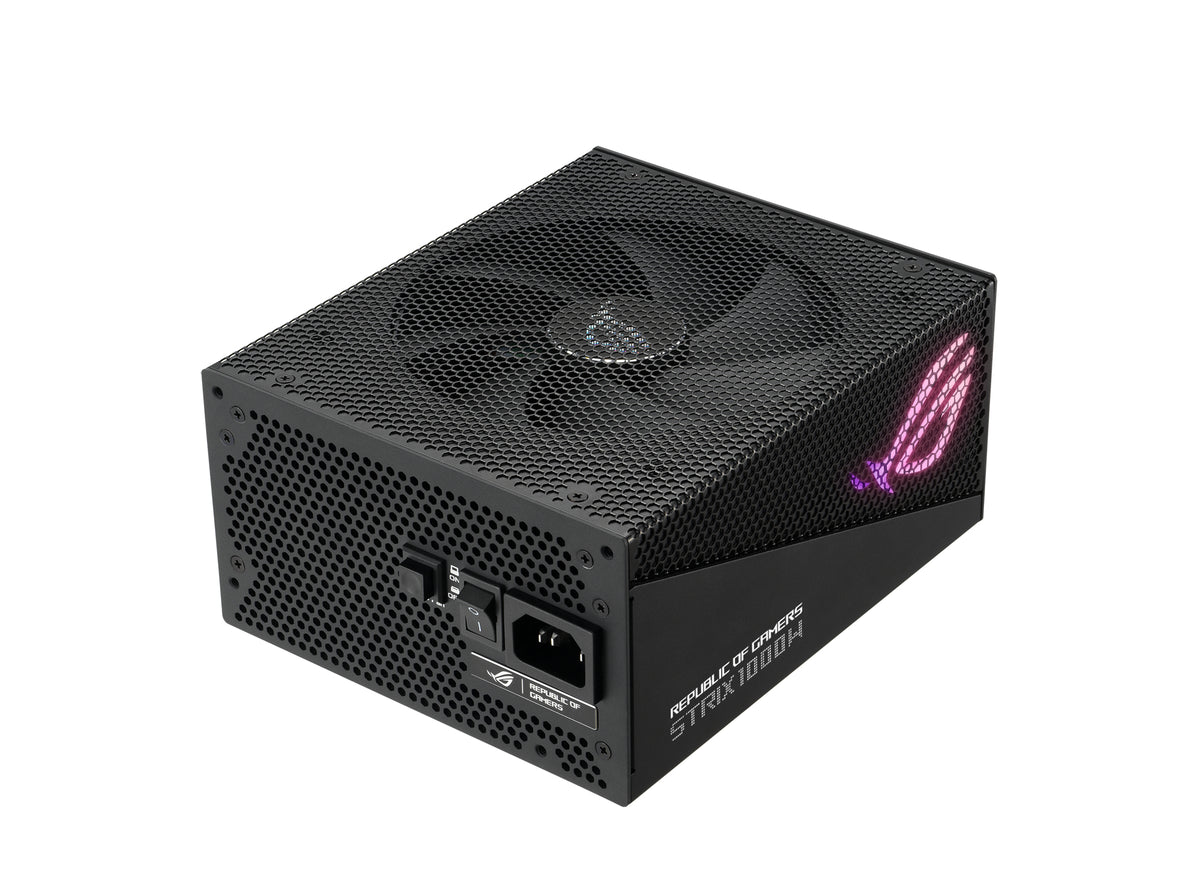

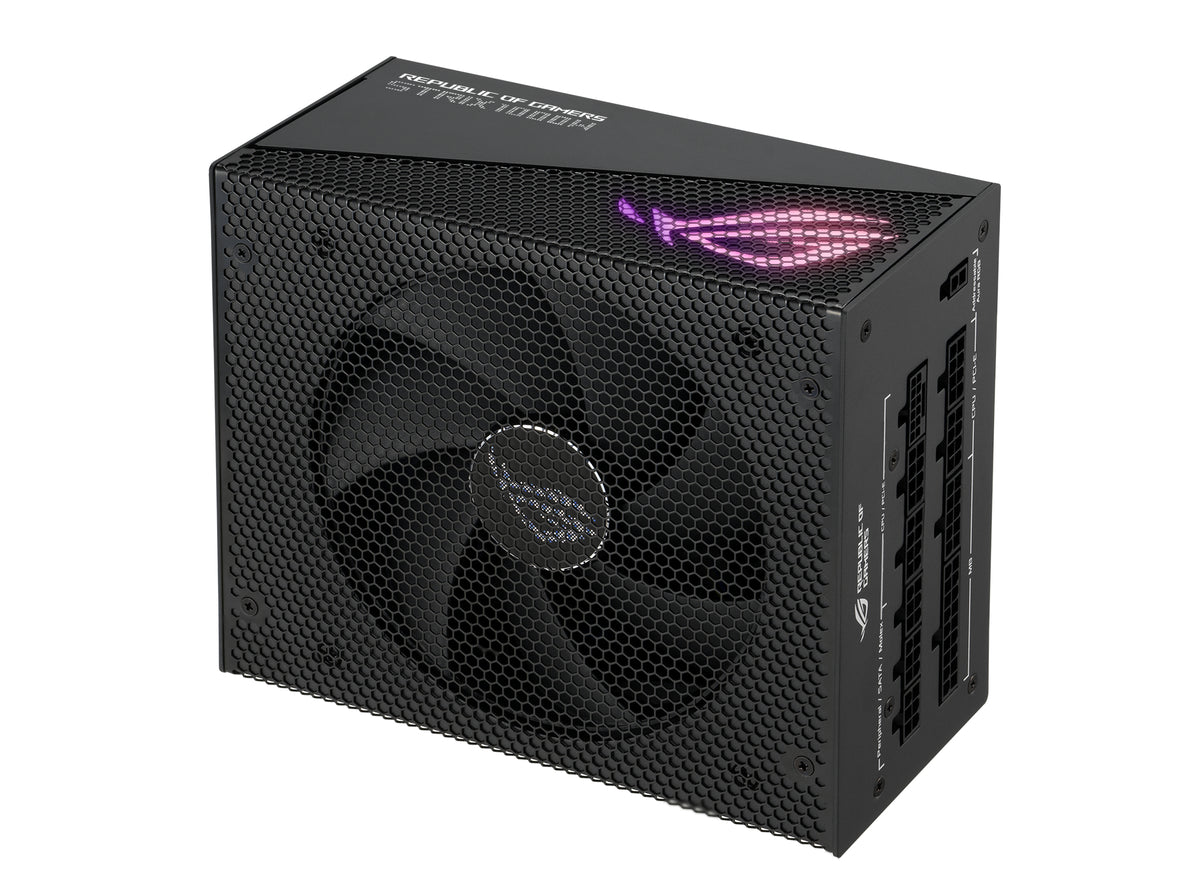

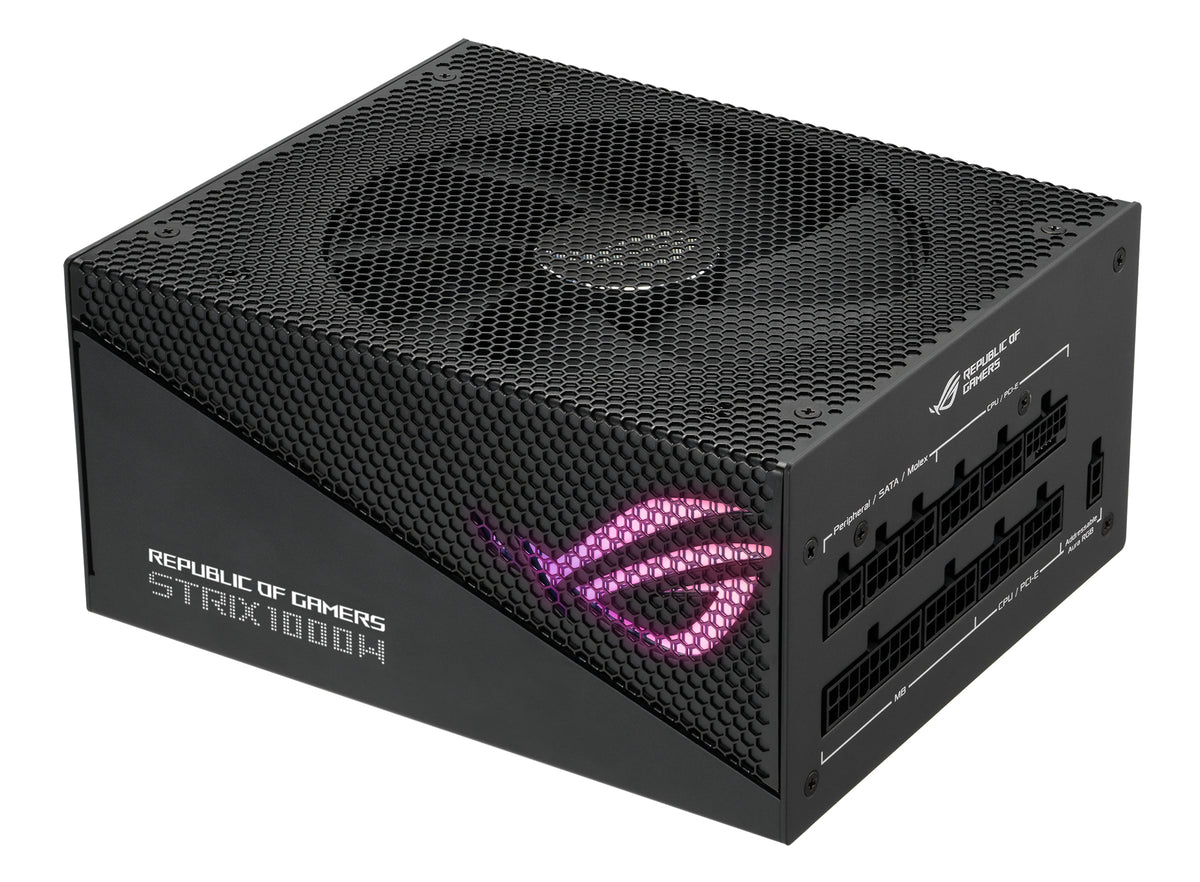

ASUS ROG Strix 1000W Gold Aura Edition power supply unit
€225,99
€186,77 excl. VAT
· VAT 21 % included in the price
Skip to product information
ASUS ROG Strix 1000W Gold Aura Edition power supply unit
- Brand:
- Asus
- Part number:
- 90YE00P1-B0NA00
- EAN:
- 4711081721703
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
€225,99
€186,77 excl. VAT
· VAT 21 % included in the price
Manufacturer: ASUSTeK Computer Inc., 15, Li-Te Rd., Beitou, Taipei 112, Taiwán · www.asus.com
EU responsible person: ASUS Computer GmbH, Harkortstraße 21-23, 40880 Ratingen, Alemania
Description
- 1000 W 100 - 240 V
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active 13.5 cm
- Black
Specifications
| Power control | |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Combined power (3.3 V) | 120 W |
| Combined power (+12 V) | 996.6 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5 VSB) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Over power, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (8-pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Full modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Silent mode | Yes |
| Bearing technology | Ball bearing |
| Design | |
| Product color | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| On/off switch | Yes |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Regulatory approvals | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 3.03 kg |
| Packaging data | |
| Package weight | 3.53 kg |
| Package type | Box |
| Technical details | |
| Sustainability compliance | Yes |
