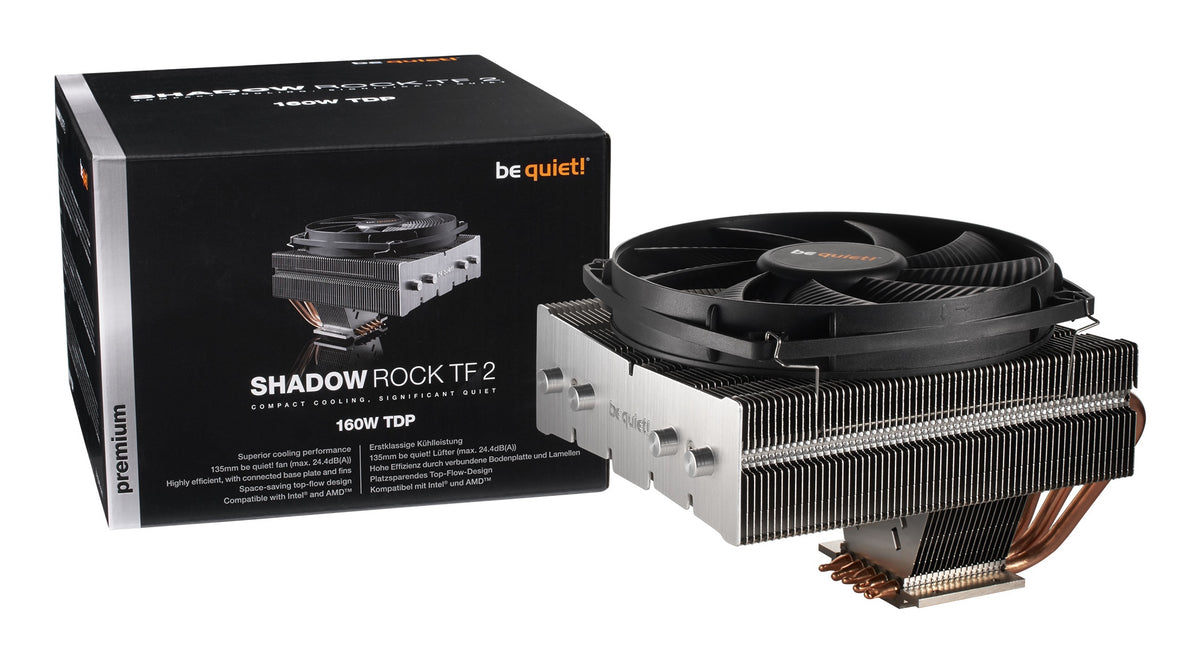

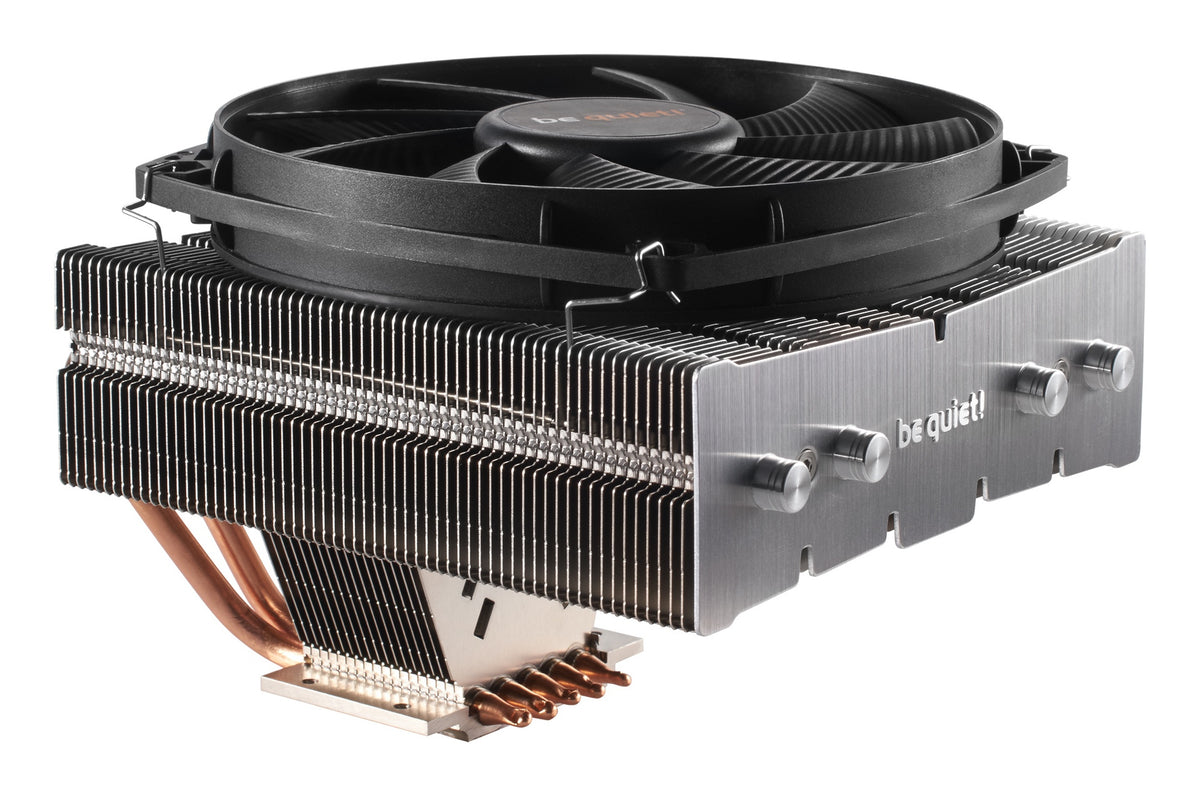

be quiet! Shadow Rock TF 2 Processor Cooler 13.5cm Black
be quiet! Shadow Rock TF 2 Processor Cooler 13.5cm Black
- Brand:
- be quiet!
- Part number:
- BK003
- EAN:
- 4260052185391
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: Listan GmbH, Wilhelm-Bergner-Str. 11c, 21509 Glinde, Alemania · info@listan.com
Description
Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best possible combination of price and performance in the premium compact CPU cooler segment.
HIGH-PERFORMANCE HEAT PIPES
Giving the system impressive cooling capacity

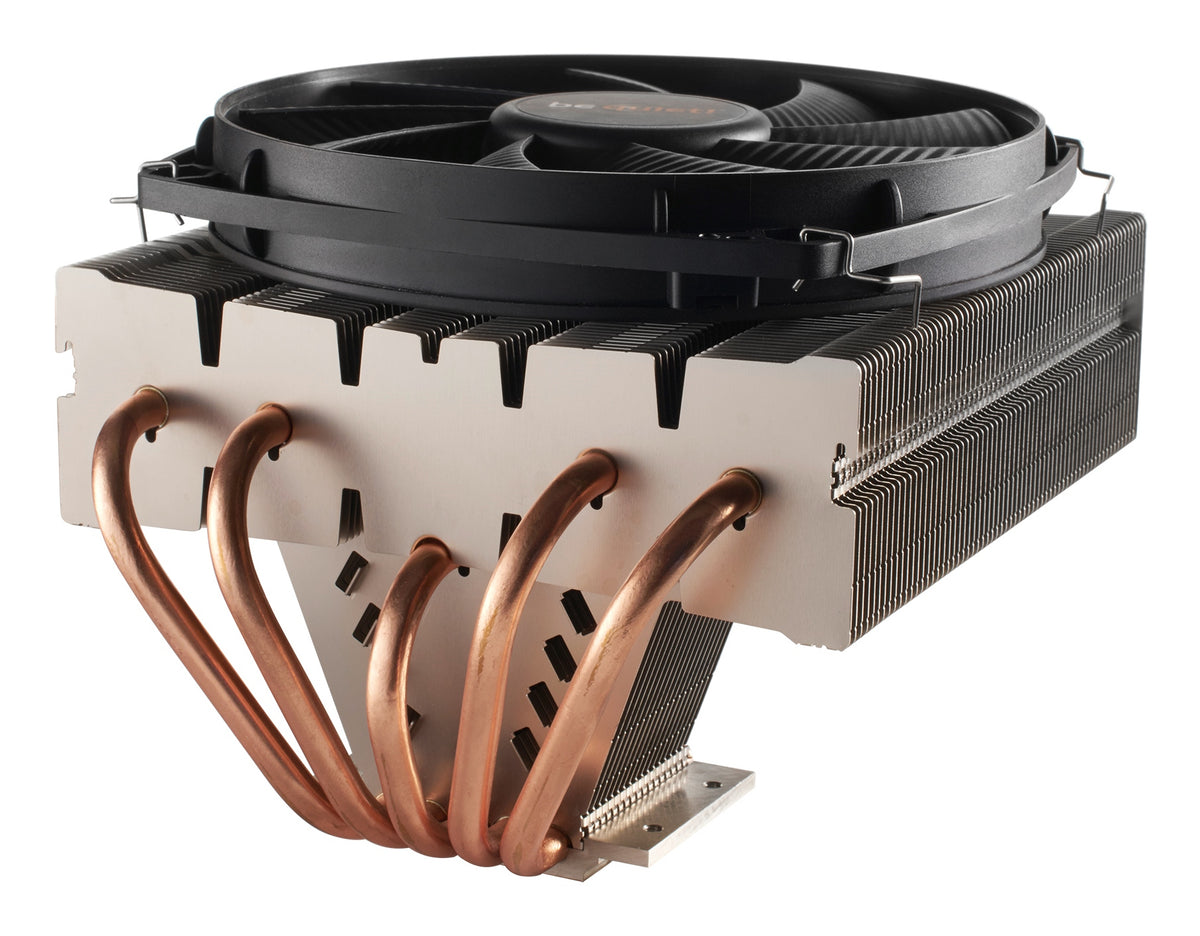

Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry heat directly to optimal locations on the cooling fins and provide the system with a considerable cooling capacity of 160W TDP.
DIRECT CONNECTION OF BASE PLATE AND FINS
For maximum effective cooling capacity
A clever cooling concept: the base plate and cooling fins of the Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimal cooling efficiency.
EXTREMELY OPTIMIZED NOISE LEVEL OPERATION
Even at 100% fan speed, the overall noise is only 24.4 dB(A)
The quiet operation typical of be quiet! is achieved thanks to the 135mm be quiet! fan with optimized noise level. The best possible balance between cooling capacity and quiet, smooth operation is achieved through the 9 airflow-optimized fan blades and the highly durable rifle bearing technology.
SMALL, DIAGONALLY ARRANGED FINS
Production of the perfect airflow

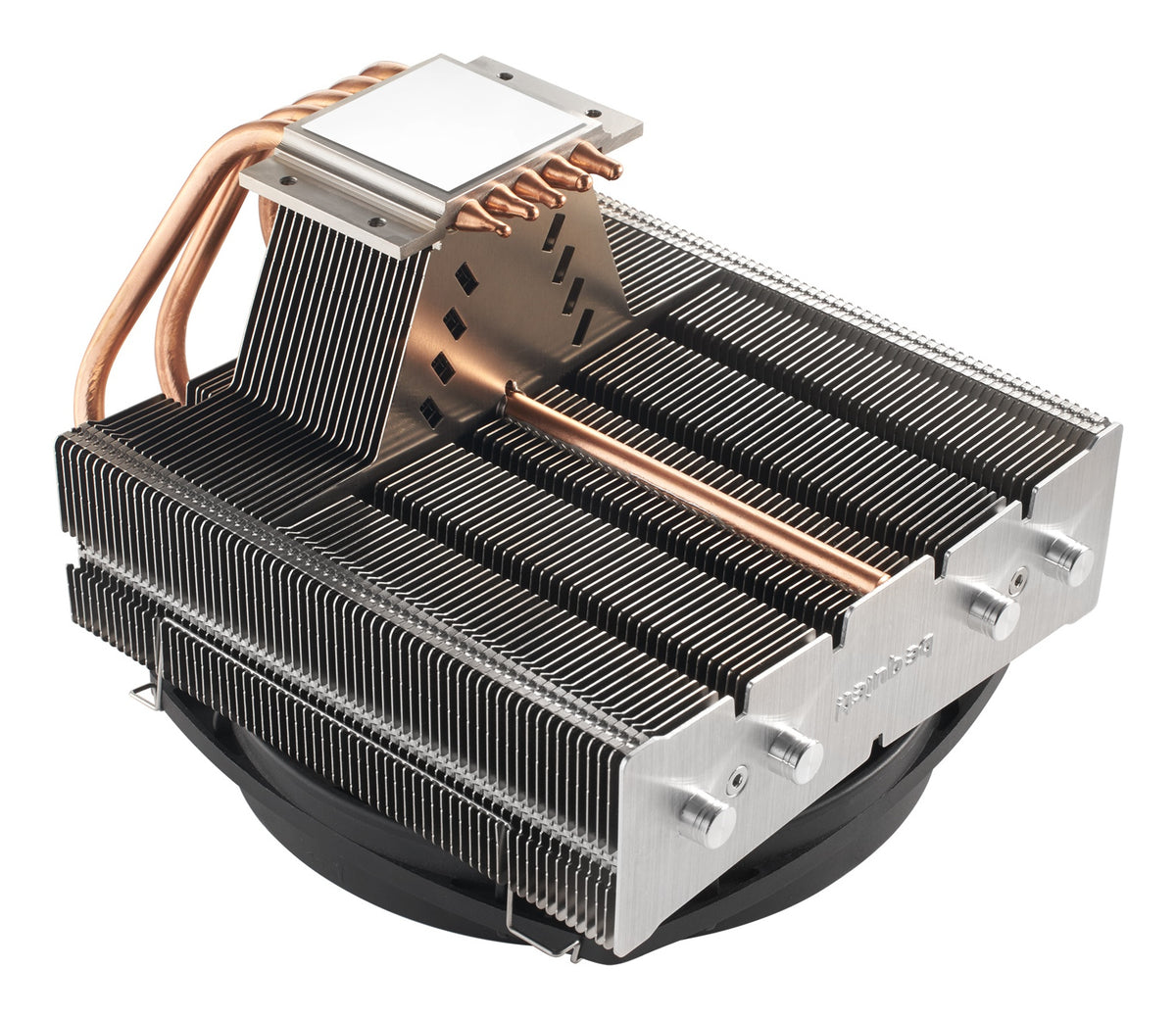

The small diagonal fins on the back of the cooler direct the airflow to ensure efficient cooling for the CPU and all components around the Intel® or AMD™ socket.
SPACE-SAVING TOP-FLOW DESIGN
Benefit from this highly functional concept

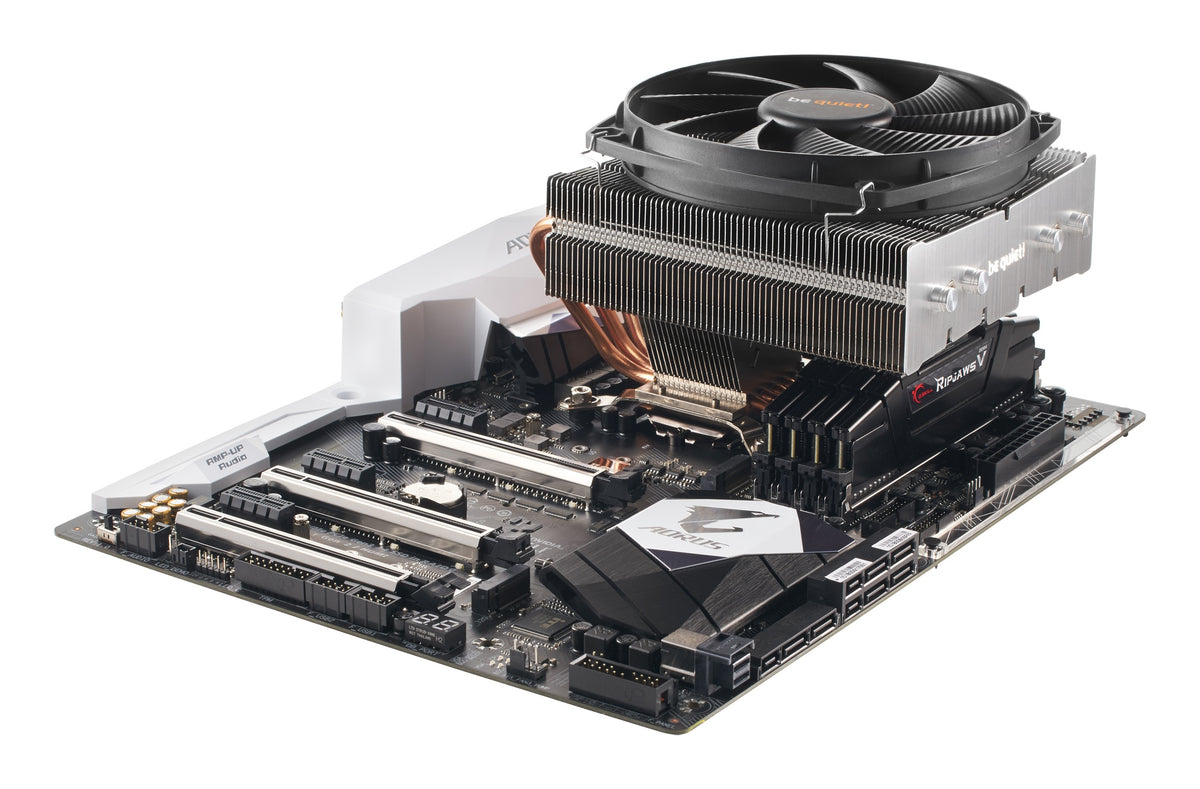

The top-flow design is perfect for anyone who has to deal with space restrictions when building a system. Shadow Rock TF 2 solves this problem with ease.
Shadow Rock TF 2, 160W TDP, 135mm
- Space-saving top-flow construction
- Very high cooling capacity of 160W TDP
- Direct connection from base plate to cooling fins for fast heat transfer
- Small, diagonally arranged fins generate airflow that ensures perfect cooling of components near the socket
- 135mm be quiet! noise-optimized fan (max. 24.4 dB(A)) with highly durable rifle bearing technology
- 5 high-performance 6mm heat pipes
- Compatibility with Intel® and AMD™ sockets
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 13.5 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2+ |
| Rotational speed (min) | 1400 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (low speed) | 11.9 dB |
| Noise level (high speed) | 24.4 dB |
| Maximum airflow | 67.8 cfm |
| Airflow | 113.8 m³/h |
| Maximum air pressure | 2.1 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Design | |
| Product color | Black, Copper, Silver |
| Material | Aluminum, Copper |
| Number of fans | 1 fan(s) |
| Number of fan blades | 9 |
| Number of fins | 57 |
| Fin material | Aluminum |
| Number of heat pipes | 5 |
| LED lighting | No |
| Fan connector | 4-pin |
| Display type | Not applicable |
| Power control | |
| Power source | 1.32 W |
| Nominal voltage | 12 V |
| Nominal current | 0.11 A |
| Weight and dimensions | |
| Width | 137 mm |
| Depth | 165 mm |
| Height | 112 mm |
| Weight | 680 g |
| Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
| Heat pipe diameter | 6 mm |
| Cable length | 0.2 m |
| Package width | 178 mm |
| Package depth | 203 mm |
| Package height | 130 mm |
| Package weight | 1.09 kg |
| Packaging content | |

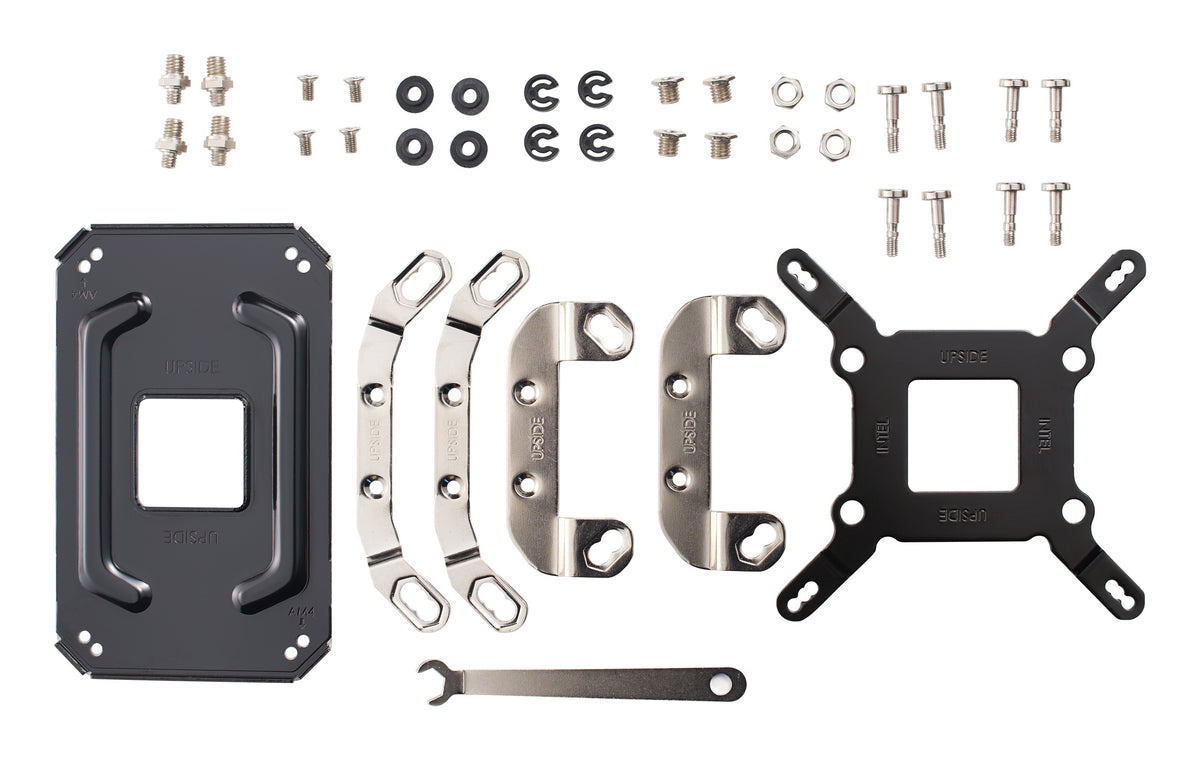

| Screws included | Yes |
| Thermal compound included | Yes |
| Other features | |
| Heatsink dimensions (W x D x H) | 165 x 137 x 87 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
