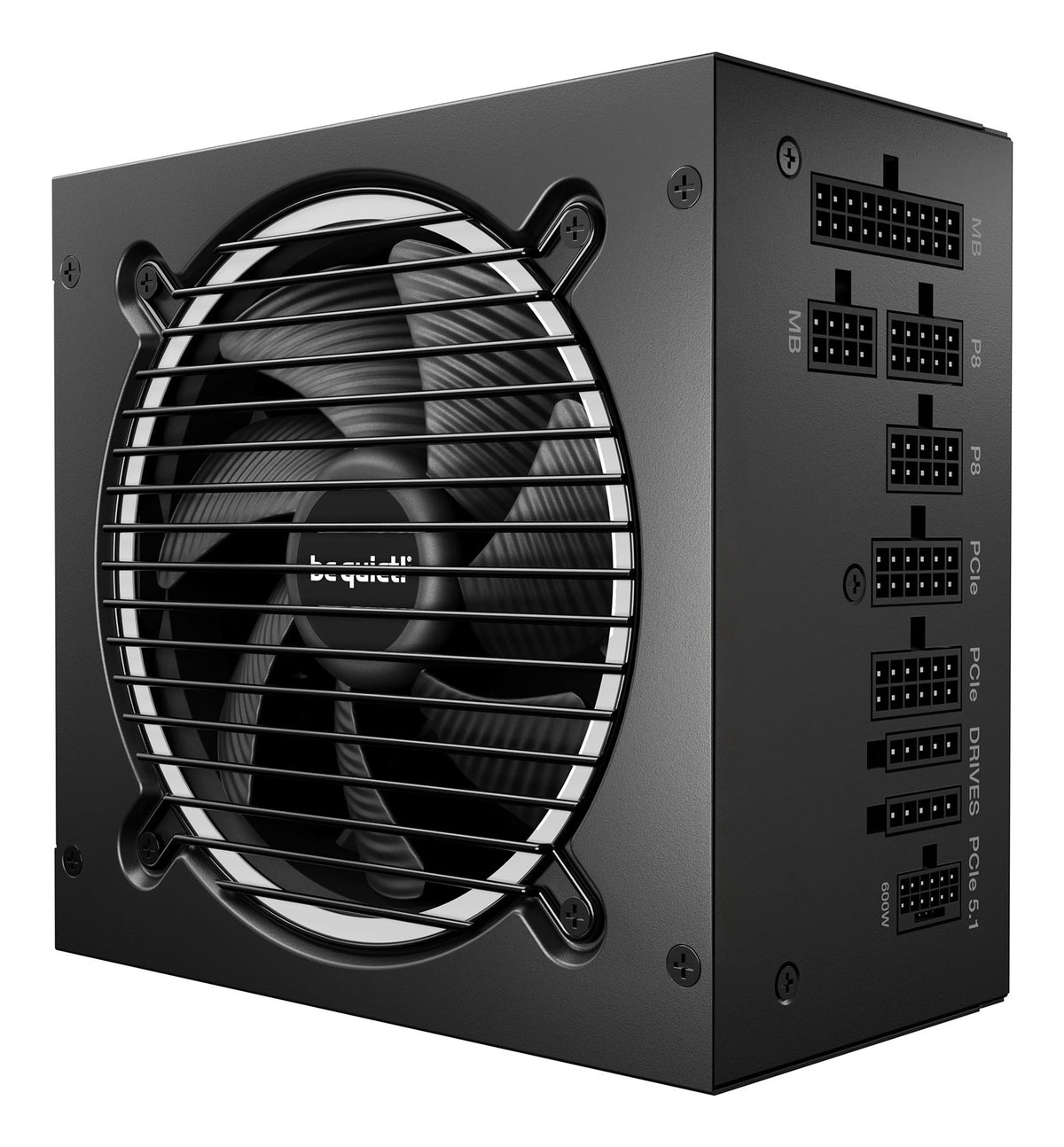

be quiet! Pure Power 13 M 1000W power supply unit
€156,99
€129,74 excl. VAT
· VAT 21 % included in the price
Skip to product information
be quiet! Pure Power 13 M 1000W power supply unit
- Brand:
- be quiet!
- Part number:
- BP028EU
- EAN:
- 4260052192207
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
€156,99
€129,74 excl. VAT
· VAT 21 % included in the price
Manufacturer: Listan GmbH, Wilhelm-Bergner-Str. 11c, 21509 Glinde, Alemania · info@listan.com
Description
- 1000 W 100 - 240 V 50/60 Hz
- Motherboard power supply: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active 12 cm 0 - 2000 RPM
- Black
Specifications
| Power control | |
|---|---|
| Total power | 1000 W |
| Maximum power | 1050 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 12 A |
| Maximum input current (@220V) | 6 A |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Number of 12V rails | 1 |
| Combined power (3.3V) | 120 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Maximum output current (+3.3V) | 22 A |
| Maximum output current (+12V1) | 83.4 A |
| Maximum output current (+5V) | 22 A |
| Maximum output current (-12V) | 0.3 A |
| Maximum output current (+5Vsb) | 3 A |
| Hold-up time | 21.09 ms |
| Efficiency | 92.5% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Ports & interfaces | |
| Motherboard power supply | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 500,650,800,950 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 800,950 mm |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12-pin) | 1 |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| PCI Express connector | Yes |
| Cabling type | Fully modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |

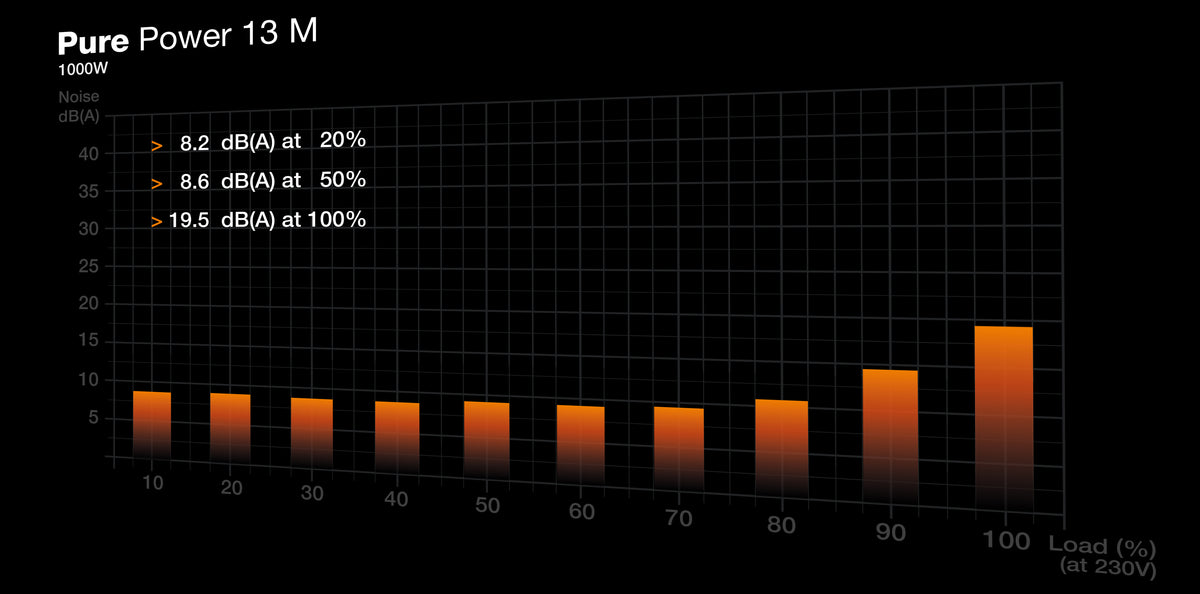

| Noise level | 30.3 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2000 RPM |
| Illumination | No |
| Integrated on/off switch | Yes |
| Operational conditions | |
| Operating temperature range | 0 - 40 °C |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Regulatory approvals | |
| Compliance certificates | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 2.64 kg |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 320 mm |
| Package height | 133 mm |
| Package weight | 3.4 kg |
| Technical details | |
| Sustainability certificates | ENERGY STAR, ErP |
| Logistics data | |
| Shipping case length | 58 cm |
| Shipping case width | 32.5 cm |
| Shipping case height | 23.3 cm |
| Quantity per shipping case | 6 piece(s) |
| Shipping case weight | 22.7 kg |
| Other features | |
| Screws included | Yes |
| Cable ties included | Yes |
