be quiet! Pure Power 13 M 1200W power supply unit
€177,99
€147,10 excl. VAT
· VAT 21 % included in the price
Skip to product information
be quiet! Pure Power 13 M 1200W power supply unit
- Brand:
- be quiet!
- Part number:
- BP029UK
- EAN:
- 4260052193723
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
€177,99
€147,10 excl. VAT
· VAT 21 % included in the price
Manufacturer: Listan GmbH, Wilhelm-Bergner-Str. 11c, 21509 Glinde, Alemania · info@listan.com
Description
- 1200 W 110 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active 12 cm 0 - 2700 RPM
- Black
Specifications
| Power control | |
|---|---|
| Total power | 1200 W |
| Peak power | 1250 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Max input current (@110V) | 15 A |
| Max input current (@220V) | 7.5 A |
| Power factor | 0.97 |
| Power Factor Correction (PFC) type | Active |
| Number of 12V rails | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold-up time | 19.11 ms |
| Efficiency | 90.8% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 500, 650, 800, 950 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 800, 950 mm |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| PCI Express connector | Yes |
| Cabling type | Fully modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 32.3 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2700 RPM |
| Illumination | No |
| On/off switch | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
| Packaging content | |

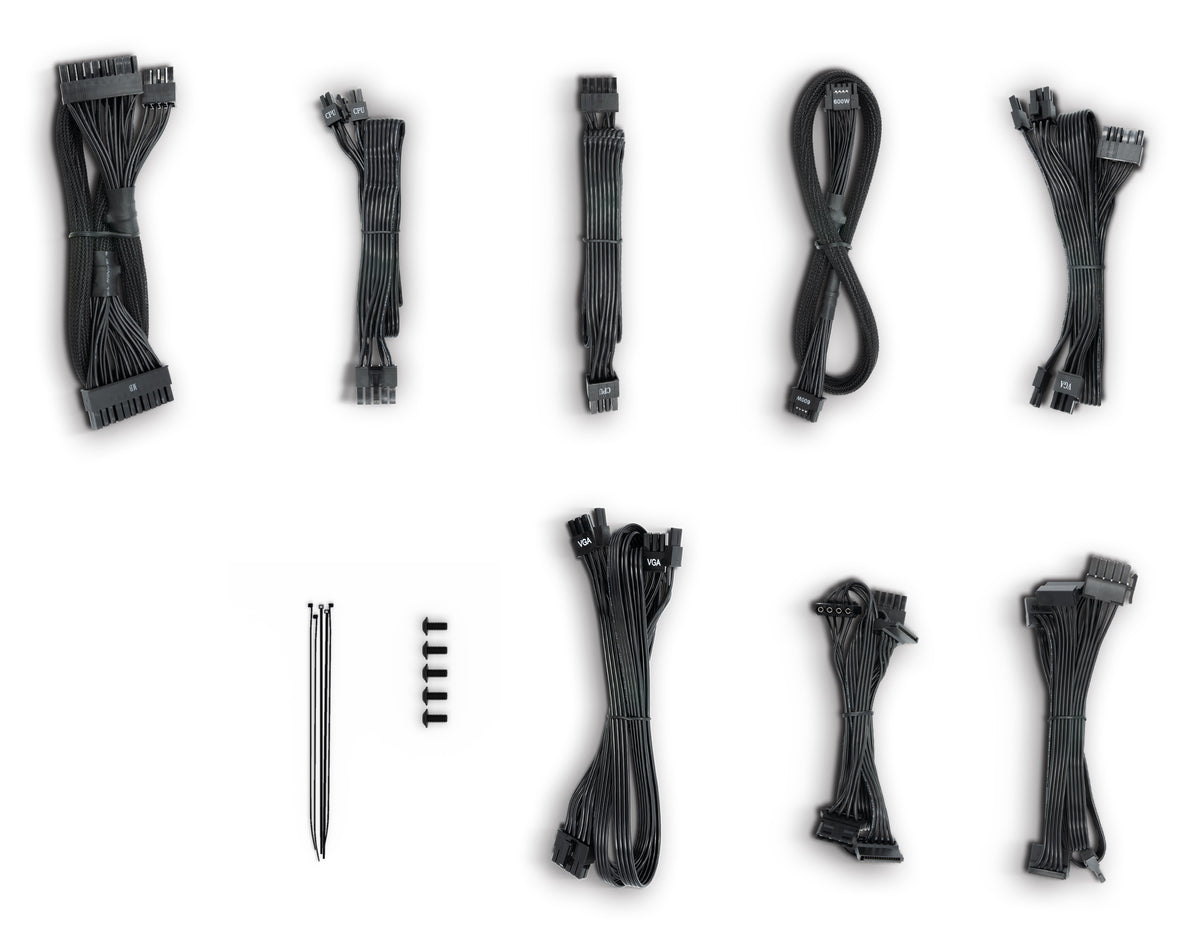

| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Regulatory approvals | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Certification | BSMI, CB, CCC, CE, FCC, IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 2.69 kg |
| Packaging data | |
| User manual | Yes |
| Manual languages | German, English, Spanish, French, Polish, Russian, Ukrainian |
| Package width | 220 mm |
| Package depth | 284 mm |
| Package height | 100 mm |
| Package weight | 3.14 kg |
| Package type | Box |
| Technical details | |
| Sustainability certificates | ENERGY STAR, ErP |
| Logistics data | |
| Master (outer) case length | 59 cm |
| Master (outer) case width | 32 cm |
| Master (outer) case height | 24.5 cm |
| Products per master (outer) case | 6 piece(s) |
| Master (outer) case weight | 20.8 kg |
| Other features | |
| Screws included | Yes |
| Cable ties included | Yes |
