FSP Twins PRO 500W power supply unit 20+4 pin ATX
FSP Twins PRO 500W power supply unit 20+4 pin ATX
- Brand:
- FSP
- Part number:
- PPA5008601
- EAN:
- 4713224523090
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Description
Redundant system and hot-swappable module design

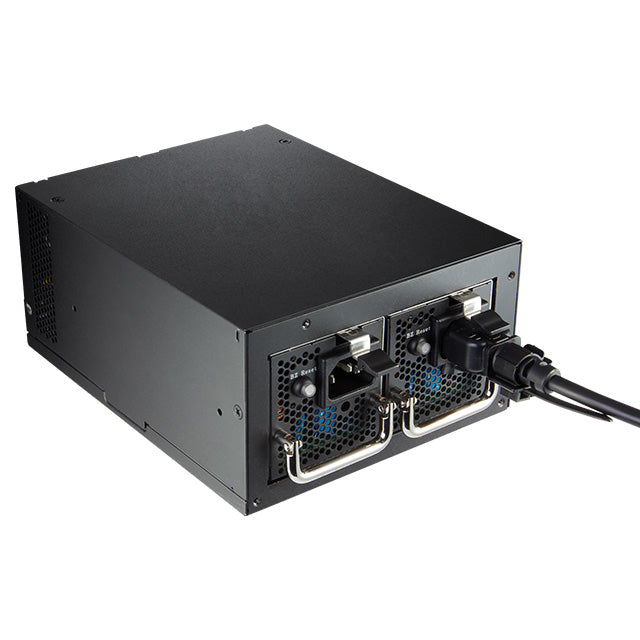

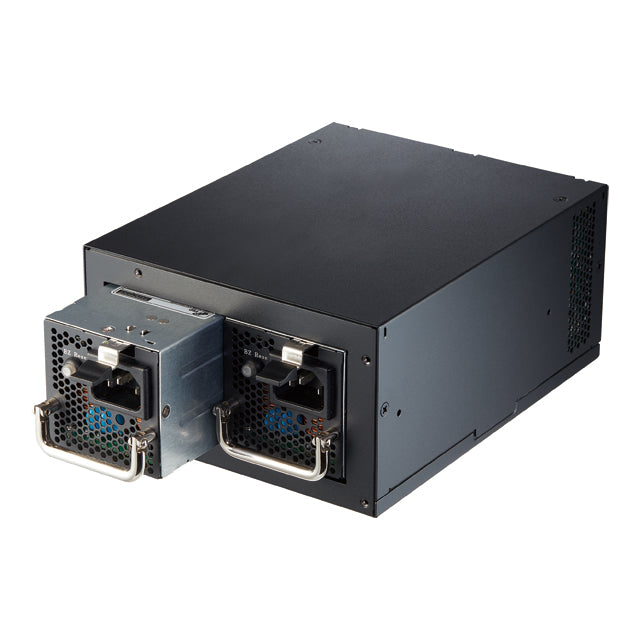

The Twins Pro modular system design is more efficient and runs quieter by distributing the power load between two hot-swappable power supply modules. If one module fails, the second takes over the power load until a replacement is installed. Each module can be hot-swapped and replaced without any system downtime, offering seamless and uninterrupted operation.
Black Flat Cable Design
The black flat cable design helps with heat dissipation and prolongs component life. The flat cable design also offers a cleaner aesthetic and allows for better cable management for your custom system.
Power Cord Lock
The Twins Pro series features a power cord lock that secures the cable against accidental disconnection, helping ensure stable operation without interruptions.
Ideal for home, mail, or web server systems
The Twins Pro series is a redundant power supply in ATX PS2 size. The Twins Pro does not require a front bracket, making it a powerful solution for a home cloud server, mail server, or a small to medium-sized business (SMB) web server.
500W, PS2 ATX Redundant, 80+ Gold, OCP, OVP, SCP, OPP, OTP, FFP, UVP, 40mm
- Redundant ATX PS2 size that fits into towers or PC cases
- No front bracket needed, ideal for mail, web, and home servers
- Hot-swappable module design
- Monitoring via "FSP Guardian" software for power supply data
- Efficiency ≧ 90% at typical load
- Quiet and durable 40mm dual ball-bearing fan
- Flat cables for enthusiast needs
- Powerful single +12V rail
- Full Japanese electrolytic capacitors
- Ready for the latest Intel CPU
- Complete protections: OCP, OVP, SCP, OPP, OTP, FFP, UVP
Specifications
| Power control | |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8-4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (3.3 V) | 130 W |
| Combined power (+5 V) | 130 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 41.76 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Overcurrent, Overvoltage, Overpower, Overheating, Short circuit, Undervoltage |
| Ports and interfaces | |
| Motherboard power supply | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6 + 2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | Server |
| Power supply unit (PSU) form factor | PS/2 |
| Bearing technology | DBB |
| Design | |
| Product color | Black |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
| Packaging content | |
| Cables included | CPU, PCIe, SATA |
| Weight and dimensions | |
| Width | 86 mm |
| Depth | 150 mm |
| Height | 190 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
