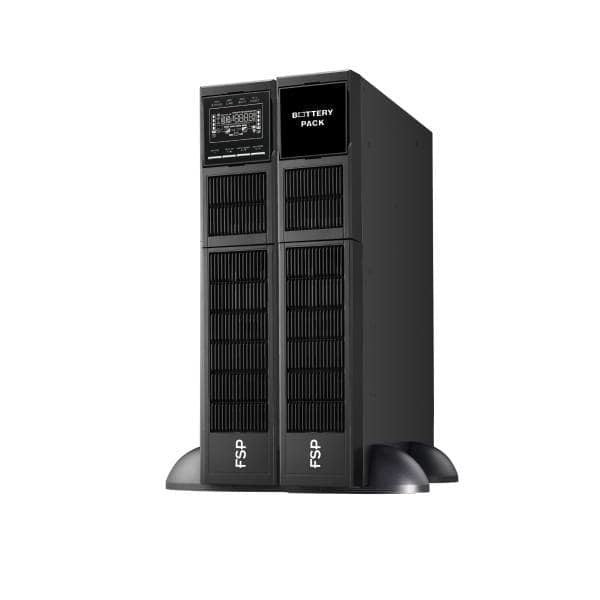

FSP Clippers RT 1K Uninterruptible Power Supply Double Conversion
€444,99
€367,76 excl. VAT
· VAT 21 % included in the price
Skip to product information
FSP Clippers RT 1K Uninterruptible Power Supply Double Conversion
- Brand:
- FSP
- Part number:
- PPF10A0400
- EAN:
- 4713224524882
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
€444,99
€367,76 excl. VAT
· VAT 21 % included in the price
Description
- Double conversion (online)
- 1 kVA 1000 W
- Waveform: Sine
- 12 V 9 Ah
- Rack/Tower mount or Rack/Tower mount Black
Specifications
| Features | |
|---|---|
| UPS topology | Double conversion (online) |
| Output power capacity (VA) | 1 kVA |
| Output power | 1000 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 46/64 Hz |
| Output voltage regulation | 1% |
| Response time | 4 ms |
| Input phase count | 1 |
| Power factor | 0.99 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Total Harmonic Distortion (THD) (linear load) | 2% |
| Total Harmonic Distortion (THD) (non-linear load) | 4% |
| Noise level | 50 dB |
| Overload protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when switching to battery, Failure, Low battery alarm, Overload alarm |
| Ports & interfaces | |

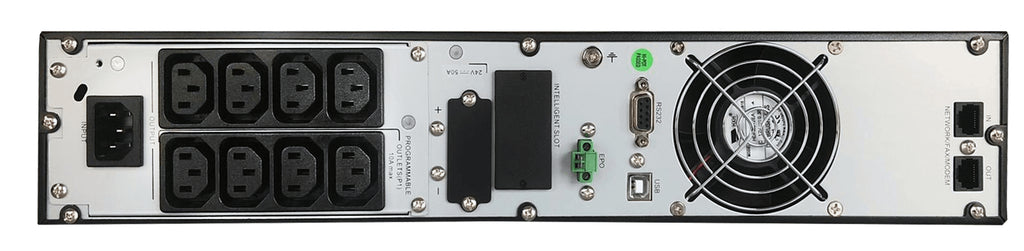

| AC outlet type | C13 coupler |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of battery cells | 2 |
| Typical backup time at full load | 33 min |
| Battery recharge time | 3 h |

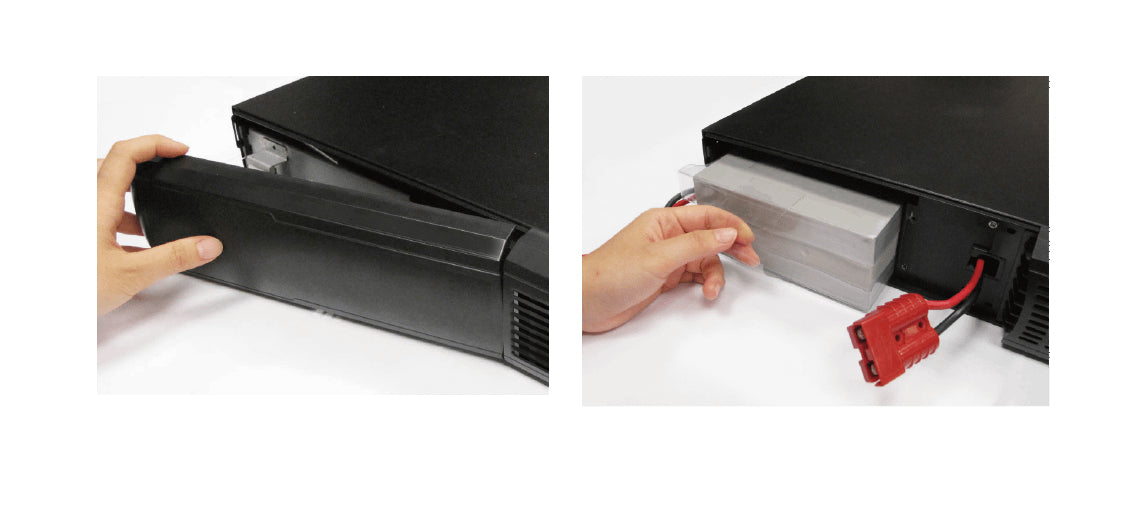

| Hot-swap battery | Yes |
| Design | |
| Form factor | Rack/Tower mount or Rack/Tower mount |
| Cooling type | Active |
| Built-in fan | Yes |
| Product color | Black |
| Control type | Buttons |
| Display type | LCD |
| Operational conditions | |
| Operating temperature range | 0 - 40 °C |
| Operating relative humidity range | 20 - 90% |
| Regulatory approvals | |
| Compliance certificates | CE |
| Certification | EMC EN62040-2 C2 |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 410 mm |
| Height | 88 mm |
| Weight | 11.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
