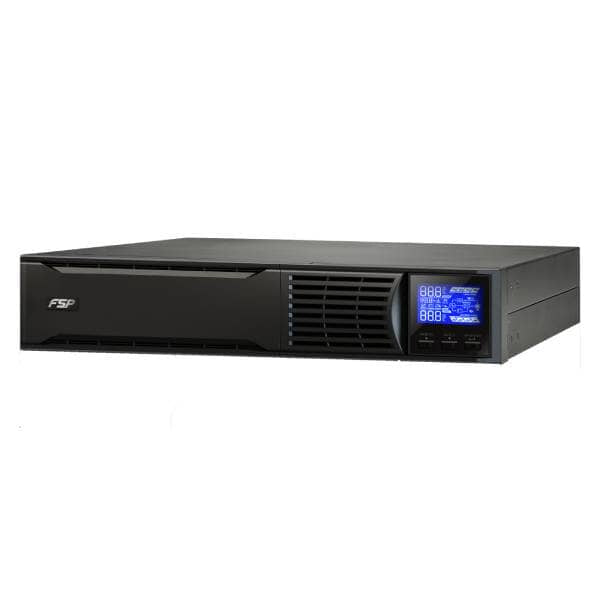

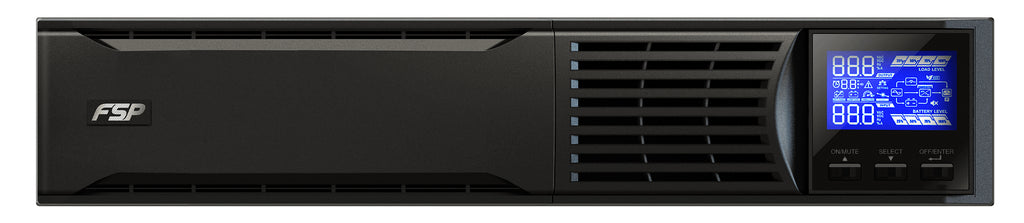

FSP Champ Rack 2K Uninterruptible Power Supply Double Conversion
€611,99
€505,78 excl. VAT
· VAT 21 % included in the price
Skip to product information
FSP Champ Rack 2K Uninterruptible Power Supply Double Conversion
- Brand:
- FSP
- Part number:
- PPF18A1401
- EAN:
- 4713224520617
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
€611,99
€505,78 excl. VAT
· VAT 21 % included in the price
Description
- Double conversion (online)
- 2 kVA 1800 W
- Waveform: Pure sine wave
- 3 AC outlets
- 12 V 9 Ah
- Rackmount or Rack mounting Black
Specifications
| Features | |
|---|---|
| UPS topology | Double conversion (online) |
| Output power capacity (VA) | 2 kVA |
| Output power | 1800 W |
| Waveform | Pure sine wave |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 47/63 Hz |
| Output frequency regulation | 0 Hz |
| Output voltage regulation | 1% |
| Response time | 0 ms |
| Power factor | 0.99 |
| Crest factor | 3:1 |
| Total Harmonic Distortion (THD) (linear load) | 3% |
| Total Harmonic Distortion (THD) (non-linear load) | 6% |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm sounds when switching to battery, Fault, Low battery alarm, Overload alarm |

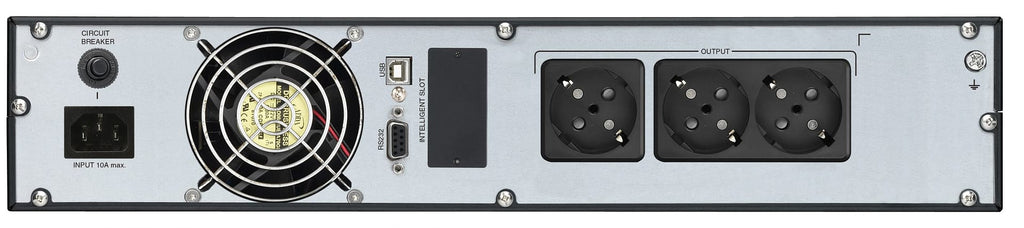

| Ports & interfaces | |
| AC outlet type | Type F |
| Number of AC outlets | 3 AC outlets |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Battery | |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of battery cells | 4 |
| Recharge time (90%) | 4 h |
| Design | |
| Form factor | Rackmount or Rack mounting |
| Rack capacity | 2U |
| Cooling type | Active |
| Built-in fan | Yes |
| Product color | Black |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature range | 0 - 40 °C |
| Operating relative humidity range | 20 - 90% |
| Regulatory approvals | |
| Compliance certificates | CE |
| Packaging content | |
| Batteries included | Yes |
| Cables included | Input power cable, USB cable |
| User guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 410 mm |
| Height | 88 mm |
| Weight | 19 kg |
| Packaging data | |
| Software CD | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Number of phases | 1 |
