Hiditec RX750 power supply unit 750W 20+4 pin ATX Black
Hiditec RX750 power supply unit 750W 20+4 pin ATX Black
- Brand:
- Hiditec
- Part number:
- PSU010048
- EAN:
- 8436545693872
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Description
The RX series features 80PLUS BRONZE certification and high-quality components designed to provide stable, high-quality power to high-performance equipment. It incorporates an ultra-quiet 120mm fan to provide increased internal airflow. SMD manufacturing electronic technology with high-performance capacitors.
High-performance power
The RX series features 80PLUS BRONZE certification and high-quality components designed to provide stable, high-quality power to high-performance equipment.
It incorporates a quiet 120mm fan to provide increased internal airflow.
80Plus Bronze Certified
RX power supplies feature 80PLUS BRONZE certification, which guarantees over 85% efficiency, as well as lower consumption and greater durability for all components.
Heat emissions will be reduced due to more efficient operation, allowing the fan to run at a lower speed and, consequently, the noise produced by the power supply will be practically imperceptible.
It incorporates full protections with OVP / UVP / OPP / SCP / SIP.
SMD electronic manufacturing technology with DC/DC converter
High-precision SMD electronic assembly technology with the use of high-performance components offers extreme power supply reliability under maximum demand conditions. SMD technology improves the durability of the power supply, ensuring reliable long-term operation.
It also incorporates advanced DC/DC conversion technology that provides stable, safe, and much more efficient power, reducing energy consumption while ensuring precise voltage regulation and protecting your equipment's components under any load condition.
It offers durability of over 100,000 hours of operation.

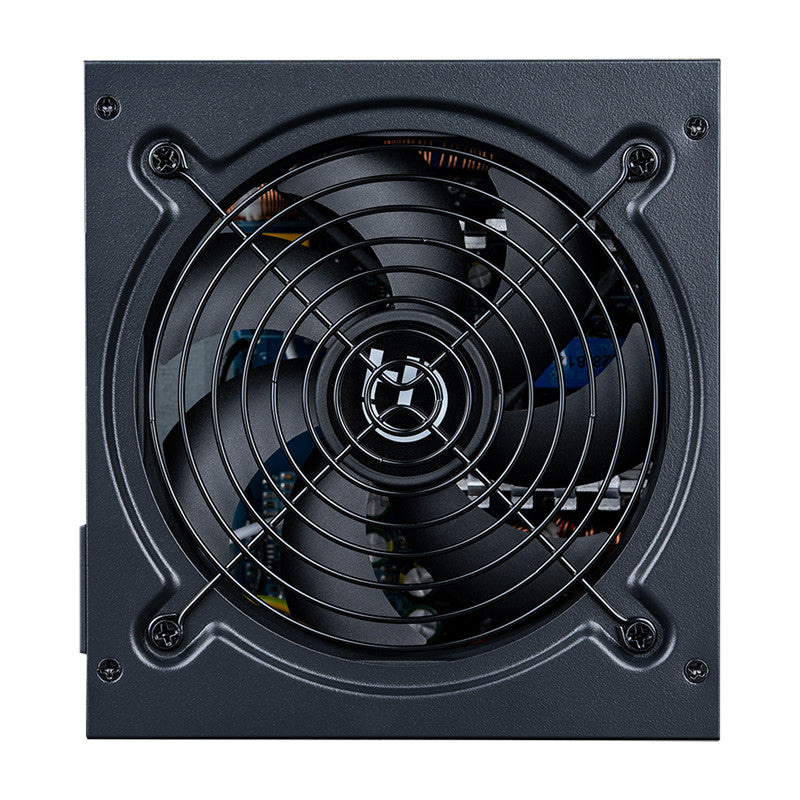

Quiet 120mm fan
The RX series features a quiet 120mm fan that will allow for increased internal airflow.
The 120mm fan provides higher airflow while running at lower speeds, so in addition to making the fan noise practically imperceptible, we will achieve greater efficiency and durability for all components.
Extra-long flat cables
Extra-long flat cables, which will allow for better adaptation during the installation of any equipment, create a tidier installation, and take up less space, in addition to offering excellent safety and durability.
With a new exterior design and fully black lacquered, RX power supplies present a more robust finish.
750 W, 80 Plus Bronze, ATX, 120 mm, 100000 hrs, 100 - 240 Vac, 150 x 85 x 140 mm, 1.75 kg
- 750 W 100 - 240 V
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Bronze
- 12 cm
- Black
Specifications
| Power management | |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 87% |
| Power protection features | Overpower, Overvoltage, Short circuit, Surge & inrush protection (SIP), Undervoltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 130, 300 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 130, 300 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Floppy drive connector | Yes |
| Floppy drive cable length | 65 cm |
| PCI Express connector | Yes |
| Number of EPS connectors | 1 |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
| Product color | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 85 mm |
| Height | 140 mm |
| Weight | 1.75 kg |
| Technical details | |
| Sustainability compliance | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Housing color | Black |
