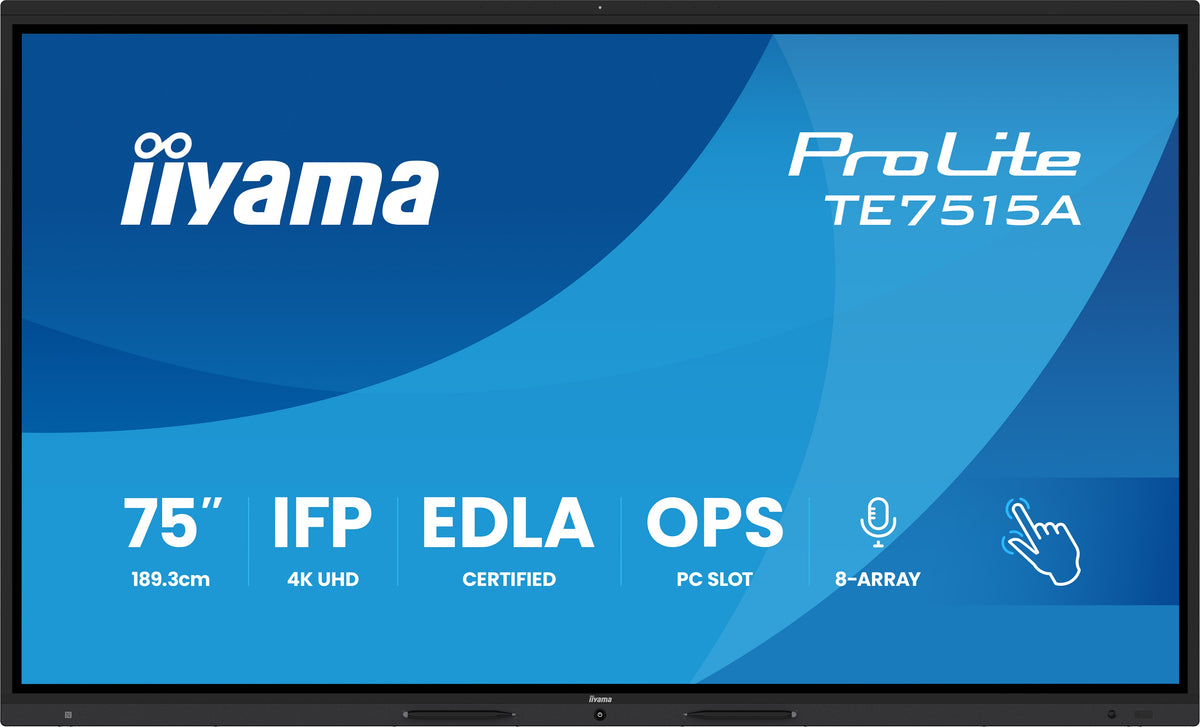

iiyama TE7515A-B2AG kiosk design signage display 190.5 cm
€2.392,99
€1.977,68 excl. VAT
· VAT 21 % included in the price
Skip to product information
iiyama TE7515A-B2AG kiosk design signage display 190.5 cm
- Brand:
- iiyama
- Part number:
- TE7515A-B2AG
- EAN:
- 4948570127498
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
€2.392,99
€1.977,68 excl. VAT
· VAT 21 % included in the price
Manufacturer: Iiyama Benelux B.V., Wijkermeerstraat 8, 2131 HA Hoofddorp, Países Bajos · iiyama.com
Description
- Indoor Kiosk design Black
- 190.5 cm (75") 3840 x 2160 Pixels 550 cd / m²
- Touchscreen 60 Hz 6.5 ms
- Ethernet Wi-Fi
- Built-in speakers 60 W
Specifications
| Display | |
|---|---|
| Panel type | VA |
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 Pixels |
| Display brightness | 550 cd / m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touch technology | Infrared |
| Number of simultaneous touch points | 40 |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.43 x 0.43 mm |
| Active display area (W x H) | 1650 x 928 mm |
| Display diagonal (metric) | 189.3 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Touch response time | 5 ms |
| Glass thickness | 3.2 mm |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 4 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-C, USB Type-B |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232C | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| OPS module slot | Yes |
| Audio Return Channel (ARC) | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Bezel width (bottom) | 4.67 cm |
| Bezel width (side) | 1.67 cm |
| Bezel width (top) | 3.43 cm |
| Bezel colour | Black |
| Anti-reflective screen | Yes |
| Performance | |
| Purpose | Education |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| OSD languages | CAT, Czech, Danish, German, English, Spanish, Finnish, French, Hungarian, Italian, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 191 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 191 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Computer system | Yes |
| Processor built-in | Yes |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Internal memory | 8 GB |
| On-board graphics adapter model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Weight & dimensions | |
| Display width | 1710.2 mm |
| Display depth | 87.1 mm |
| Display height | 1036.3 mm |
| Display weight | 54.6 kg |
| Width | 1710.2 mm |
| Depth | 87.1 mm |
| Height | 1036.3 mm |
| Weight | 54.6 kg |
| Packaging data | |
| Package width | 1860 mm |
| Package depth | 185 mm |
| Package height | 1125 mm |
| Package weight | 67.6 kg |
| Packaging content | |
| Remote control included | Yes |
| Stylus pen | Yes |
| Number of pens | 4 |
| Cables included | AC, USB, HDMI |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Logistics data | |
| Quantity per pallet | 6 pc(s) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Technical details | |
| Audio input (mini jack) | Yes |
| OPS slot | 1 |
| Playback support | Y |
| User controls | personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device) |
| Sustainability certificates | EPEAT, ErP, EPEAT Bronze |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Other features | |
| Quick start guide | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Built-in microphone | Yes |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
