iiyama ProLite TE8613A-B2AG 86" certified 4K UHD interactive display
€2.286,99
€1.890,07 excl. VAT
· VAT 21 % included in the price
Skip to product information
iiyama ProLite TE8613A-B2AG 86" certified 4K UHD interactive display
- Brand:
- iiyama
- Part number:
- TE8613A-B2AG
- EAN:
- 4948570125753
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
€2.286,99
€1.890,07 excl. VAT
· VAT 21 % included in the price
Manufacturer: Iiyama Benelux B.V., Wijkermeerstraat 8, 2131 HA Hoofddorp, Países Bajos · iiyama.com
Description

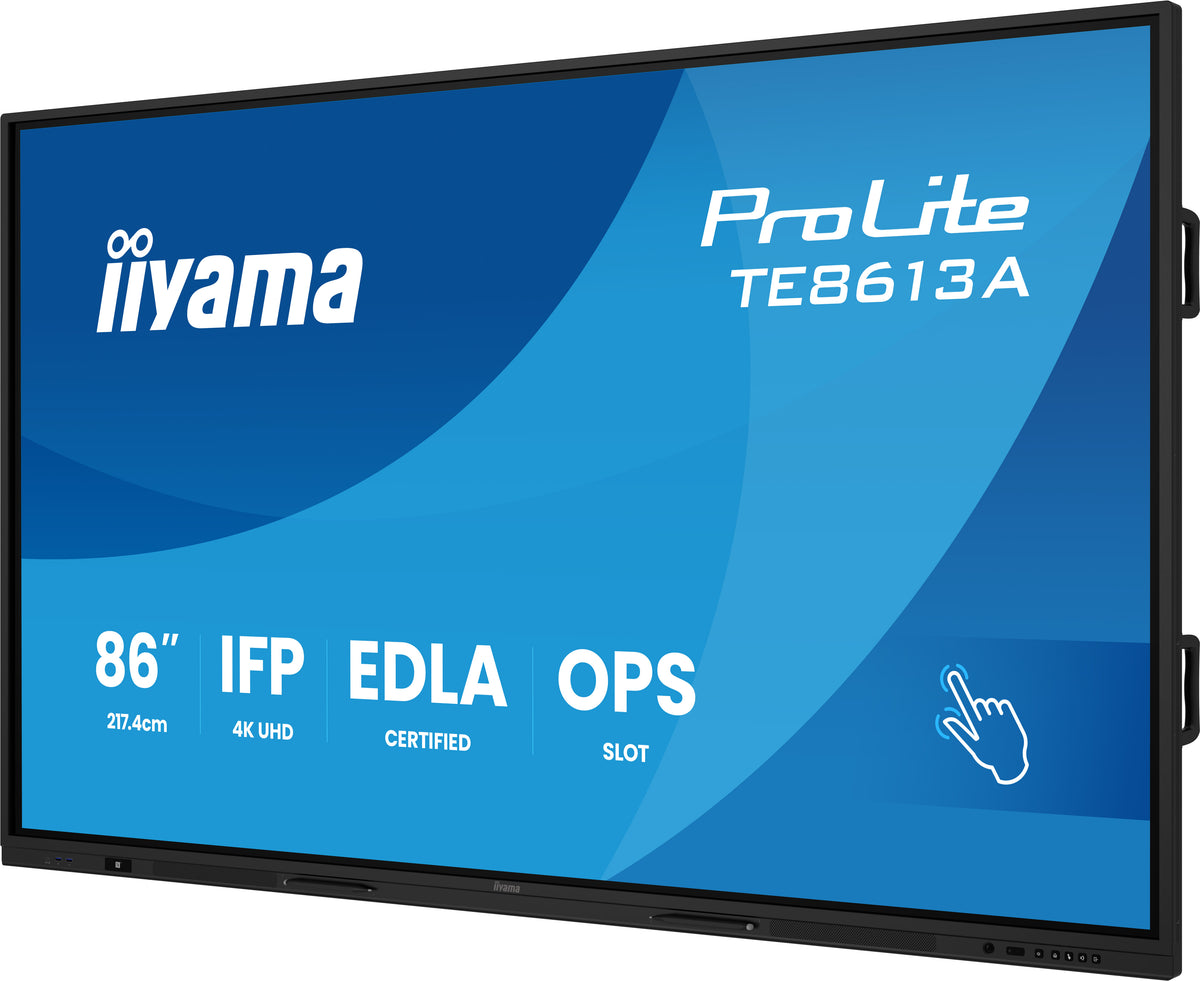

86" Class diagonal (85.6" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen (multi-touch) / slot-in PC capability - 4K UHD (2160p) 3840 x 2160 - black matte bezel
Specifications
| Display | |
|---|---|
| Display type | IPS |
| Display diagonal | 2.17 m (85.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touch points | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.493 x 0.493 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Touch response time | 5 ms |
| Glass thickness | 3.2 mm |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 6 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232C | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| OPS module slot | Yes |
| Audio Return Channel (ARC) | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Design | |
| Product design | Kiosk display |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 4.1 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (top) | 1.65 cm |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Positioning accuracy | 1 mm |
| Performance | |
| Purpose | Education |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| OSD languages | Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, Latvian, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption | 282 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 260 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Computer system | Yes |
| Processor built-in | Yes |
| Processor architecture | ARM Cortex-A73 |
| Processor frequency | 1.4 GHz |
| Processor cores | 4 |
| Internal memory | 8 GB |
| On-board graphics adapter model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Weight & dimensions | |
| Display width | 1955.6 mm |
| Display depth | 87.1 mm |
| Display height | 1154 mm |
| Display weight | 63.8 kg |
| Width | 1955.6 mm |
| Depth | 87.1 mm |
| Height | 1154 mm |
| Weight | 63.8 kg |
| Packaging data | |
| Package width | 2095 mm |
| Package depth | 185 mm |
| Package height | 1265 mm |
| Package weight | 76.5 kg |
| Packaging content | |
| Remote control included | Yes |
| Stylus pen | Yes |
| Number of pens | 4 |
| Cables included | AC, USB, HDMI |
| Environmental conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Logistics data | |
| Products per pallet | 4 pc(s) |
| Network | |
| Ethernet | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Technical details | |
| Audio input (mini jack) | Yes |
| OPS slot | 1 |
| Playback support | Y |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Other features | |
| Quick start guide | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Brightness | 500 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
