Manhattan 207652 2-Port HDMI Video Splitter
Manhattan 207652 2-Port HDMI Video Splitter
- Brand:
- Manhattan
- Part number:
- 207652
- EAN:
- 0766623207652
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: IC Intracom Vertriebs GmbH, Löhbacher Str. 7, 58553 Halver, Alemania · info@ic-intracom.com
Description
Easily distribute a single HDMI signal to multiple displays

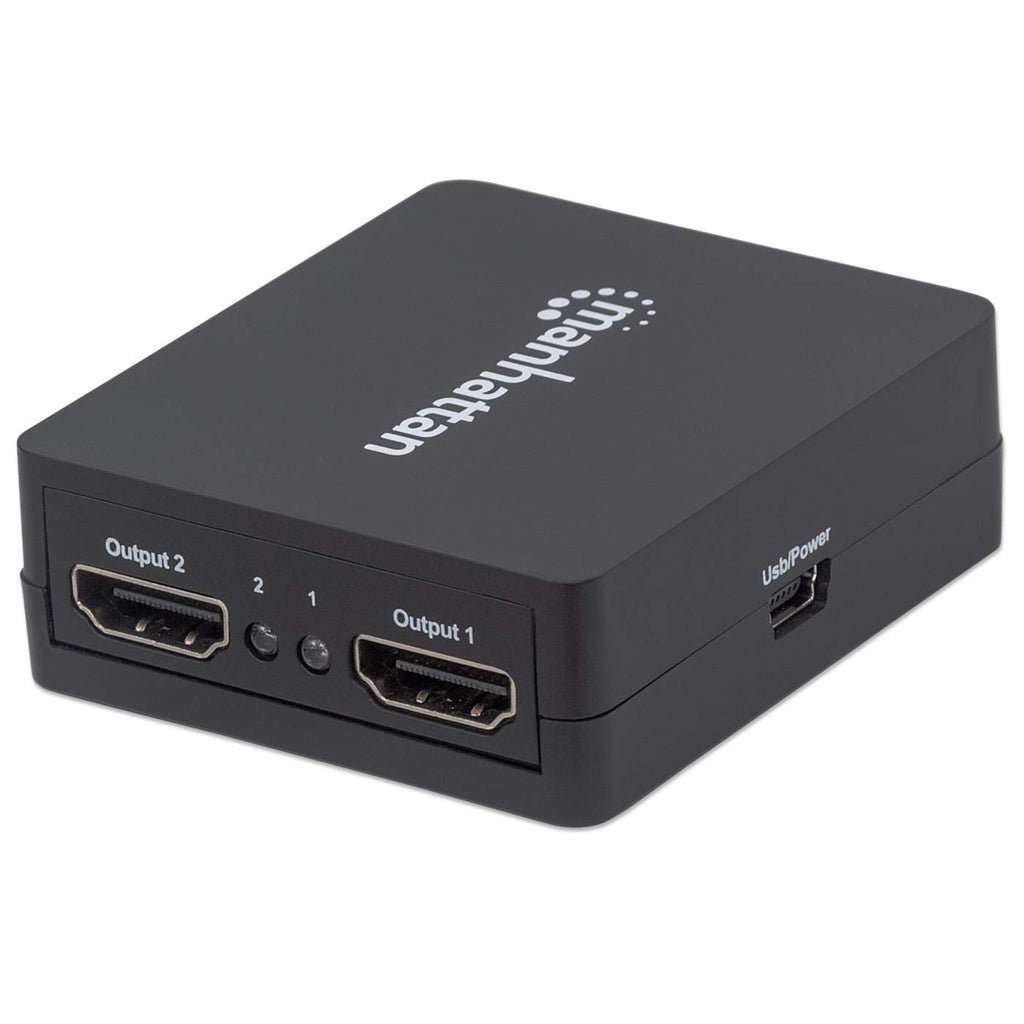

The Manhattan 2-Port 1080p HDMI Splitter sends HDMI signals from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console, or other HDMI source to two HDMI displays.
Flexible solution for various A/V applications
Ideal for trade shows, classrooms, video conferencing, presentations, and commercial applications, the Manhattan 2-Port 1080p HDMI Splitter features a built-in amplifier to boost the signal. It is also an excellent choice for splitting and distributing a synchronized signal to multiple HDMI displays when source equipment is stored remotely in a secure room or cabinet. Users can daisy-chain multiple units up to three levels to send HDMI video/audio to additional displays in widely distributed applications.
Quality construction and simple installation
Fully compliant with HDMI, HDCP 1.0, 1.1, and 1.2, as well as DVI 1.0, ensuring reliable performance and a long service life. Just quickly connect HDMI cables (not included) and the USB power cable to complete this affordable HDMI solution — no complicated software or hardware configurations required.
4o
2-Port HDMI Splitter, 1080p, black, duplicates output from 1 HDMI source to 2 displays (same signal on both), USB-A powered (0.7 m cable included), 3-year warranty
- Displays video from one HDMI source on two HD displays
- Provides a sharp, clear signal from Blu-ray players, set-top boxes, satellite receivers, and more
- Daisy-chain up to three levels to expand signal distribution to more displays
- HDCP compliant
- Supports LPCM, DTS Digital, DTS-HD Master Audio, and Dolby TrueHD audio
- Supports 1080p HD resolution, 3D video, and Deep Color
- Supports video amplifier bandwidth up to 2.25 Gbps
- Plug and Play
- Plug and play installation; no special setup or remote control required
- Gold-plated contacts
- Gold-plated contacts for corrosion-free connections
- Three-year warranty (*Check warranty duration in your city or country*)
Specifications
| Ports and Interfaces | |
|---|---|
| Video port type | HDMI |
| Video output | 2x HDMI |
| HDMI version | 1.3b |
| Number of video ports | 3 |
| Features | |
| Product color | Black |
| Housing material | Plastic |
| Maximum resolution | 1920 x 1200 Pixels |
| 3D | Yes |
| Maximum operating distance | 15 m |
| Bandwidth | 225 MHz |
| Cable length | 0.7 m |
| HDCP | Yes |
| Connector contacts plating | Gold |
| Plug and Play | Yes |
| LED indicators | Yes |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby TrueHD |
| Certification | CE, FCC, RoHS2 |
| Power Control | |
| Power consumption | 5 W |
| USB power delivery | Yes |
| Weight and dimensions | |
| Width | 54 mm |
| Depth | 60 mm |
| Height | 20 mm |
| Weight | 40 g |
| Packaging content | |
| User manual | Yes |
| Cables included | USB |
| Environmental conditions | |
| Operating temperature range | 0 - 70 °C |
| Storage temperature range | -10 - 80 °C |
| Operating relative humidity range | 10 - 85% |
| Storage relative humidity range | 5 - 90% |
| Technical details | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
