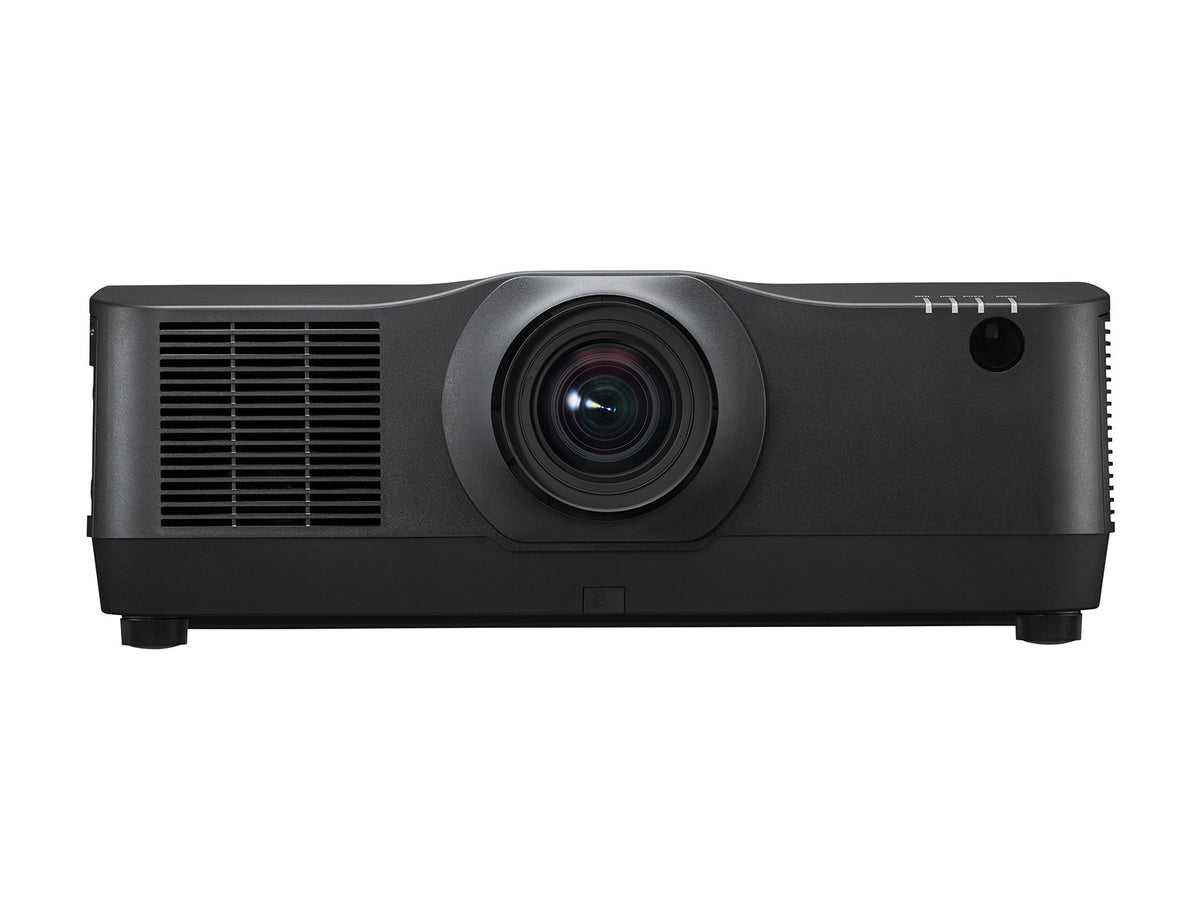

Sharp A104U Standard throw projector 9000 ANSI lumens 3LCD WUXGA
- Brand:
- Sharp
- Part number:
- XPA104U
- EAN:
- 4550556169424
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: Sharp Display Solutions Europe GmbH, Landshuter Allee 12-14, 80637 München, Allemagne · infomail@sharp.eu
Description
Precision, clarity and lasting performance
The Sharp A Series delivers consistent and reliable performance, sharp color and clarity, and is designed for fixed installations that require reliable image quality and low maintenance.
The A Series, with accurate white point calibration and an expanded color space, uses 12-bit color signal processing to achieve rich saturation and high contrast, perfect for detailed visual content in educational environments, public displays, and simulations. Its ultra-quiet operation makes it suitable for acoustically sensitive spaces such as conference rooms, museums, and control rooms.
The sealed optical engine, with an IP5X rating for dust resistance, maintains stable image quality and consistent brightness over time. The filter-free LCD design combined with a laser light source eliminates the need for bulb changes, reducing maintenance costs and allowing for up to 20,000 hours of operation.
Installation is simplified thanks to Sharp's Pro Assist software, which allows for remote configuration and adjustment even when you cannot access the projector. Extensive lens shift, along with advanced features such as HDBaseT-out, blending, and stacking, ensure flexible integration in complex environments.
3LCD, 1920 x 1200 (WUXGA), 16:10, 3000000:1, 9000lm / 10000lm max, 599 x 208 x 490 mm, 24.4 kg
- No more lamp replacements – up to 20,000 hours of maintenance-free operation thanks to the laser light source.
- No filter service required – a fully sealed LCD optical laser engine results in a filter-free design. It keeps colors bright and you will no longer need to consider service costs in your budget.
- Very quiet operation – the lightweight, sealed engine incorporates an innovative ventilation design that not only prevents dust from entering but also dramatically reduces noise.
- Impress with vivid colors and contrast – bright white and an expanded color space with highly dynamic contrast; supports HDR10 standard via HDMI interface.
- Incredible display capabilities – impressive free-tilt and portrait orientation installation capability, best-in-class geometric adjustment, image tiling, and camera-based stacking.
Specifications
| Projector | |
|---|---|
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Throw distance | 0.7 - 50.9 m |
| Projector brightness | 9000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Horizontal scan range | 15 - 153 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
| Light source | |
| Light source type | Laser |
| Light source service life | 20000 h |
| Lens system | |
| Focus | Motorized |
| Lens shift range, horizontal | -20 - 20% |
| Lens shift range, vertical | -50 - 10% |
| Ports & interfaces | |
| USB 2.0 Type-A ports quantity | 1 |
| Audio input (L,R) | 1 |
| Audio output (L,R) | 2 |
| Serial interface type | RS-232 |
| HDMI ports quantity | 2 |
| 3G-SDI input | 1 |
| Network | |
| Ethernet | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Noise level (economic mode) | 32 dB |
| HDCP | Yes |
| Noise level | 35 dB |
| Design | |
| Product type | Standard throw projector |
| Product color | Black |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 725 W |
| Power consumption (standby) | 0.28 W |
| Power consumption (economy mode) | 395 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 599 mm |
| Depth | 490 mm |
| Height | 208 mm |
| Weight | 24.4 kg |
| Packaging content | |
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC |
