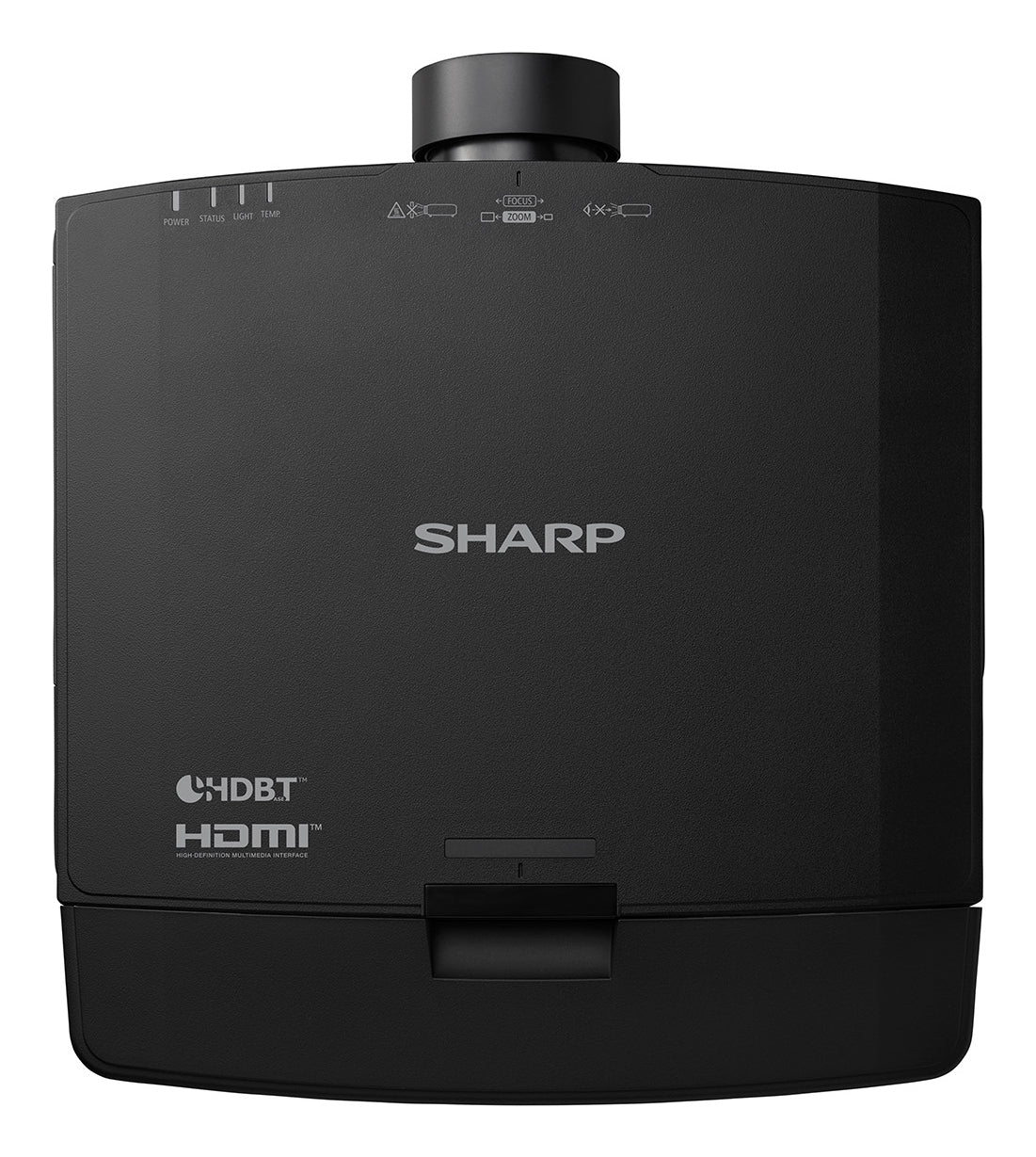

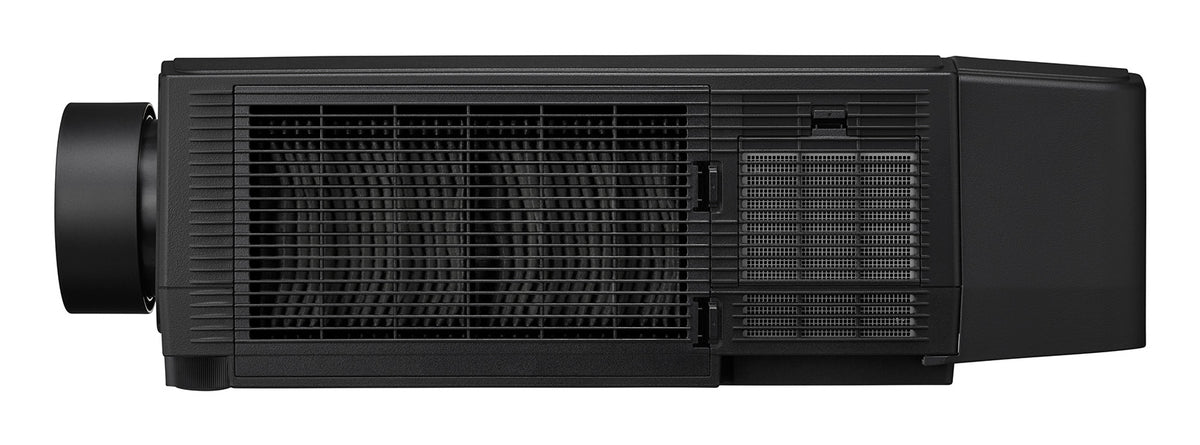

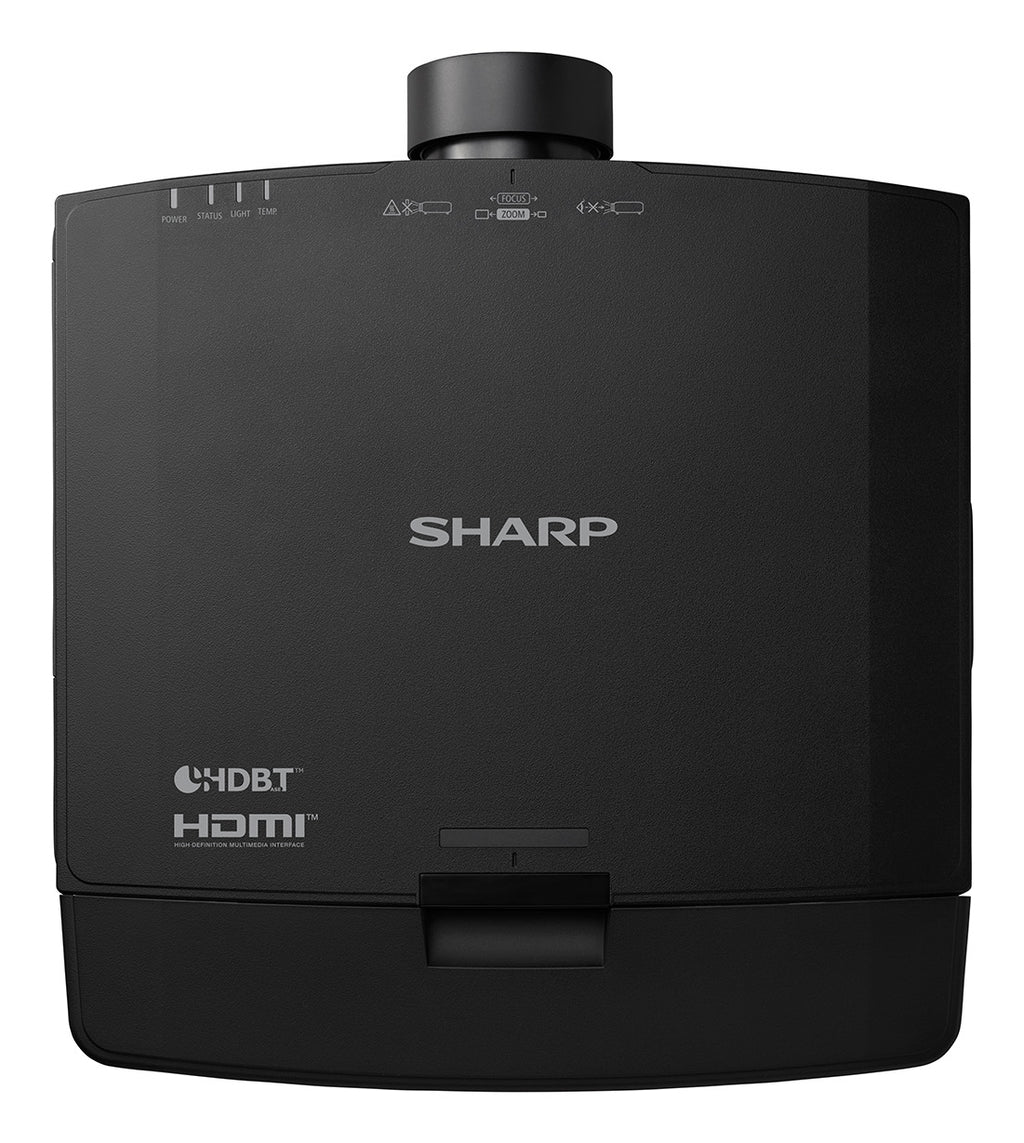

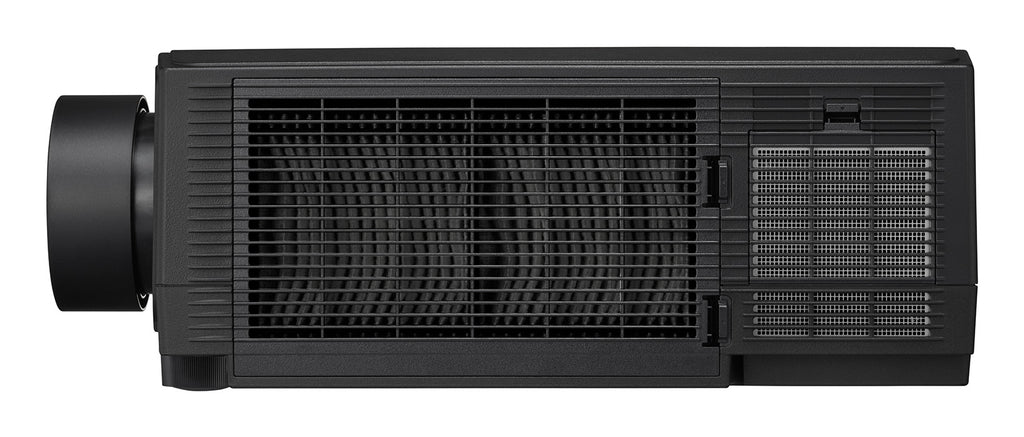

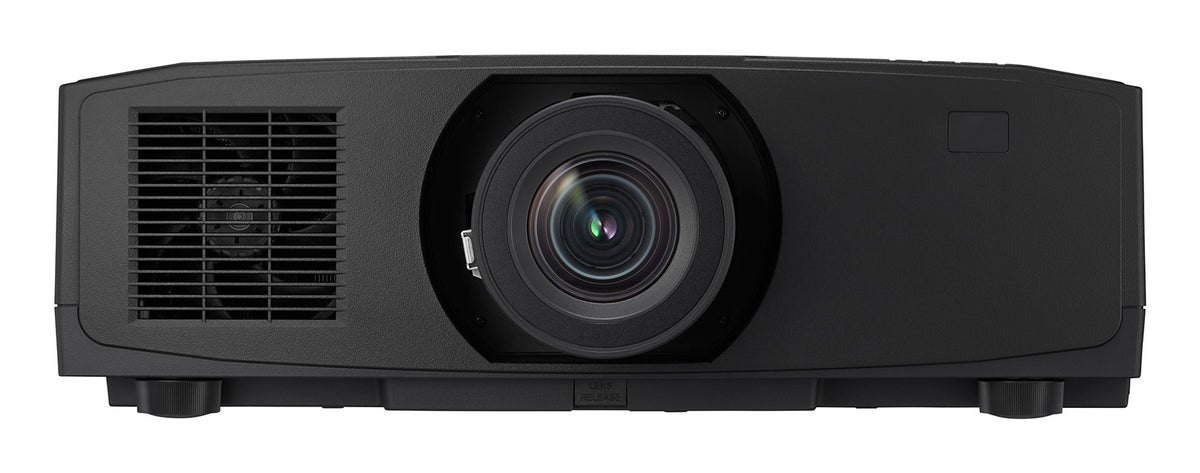

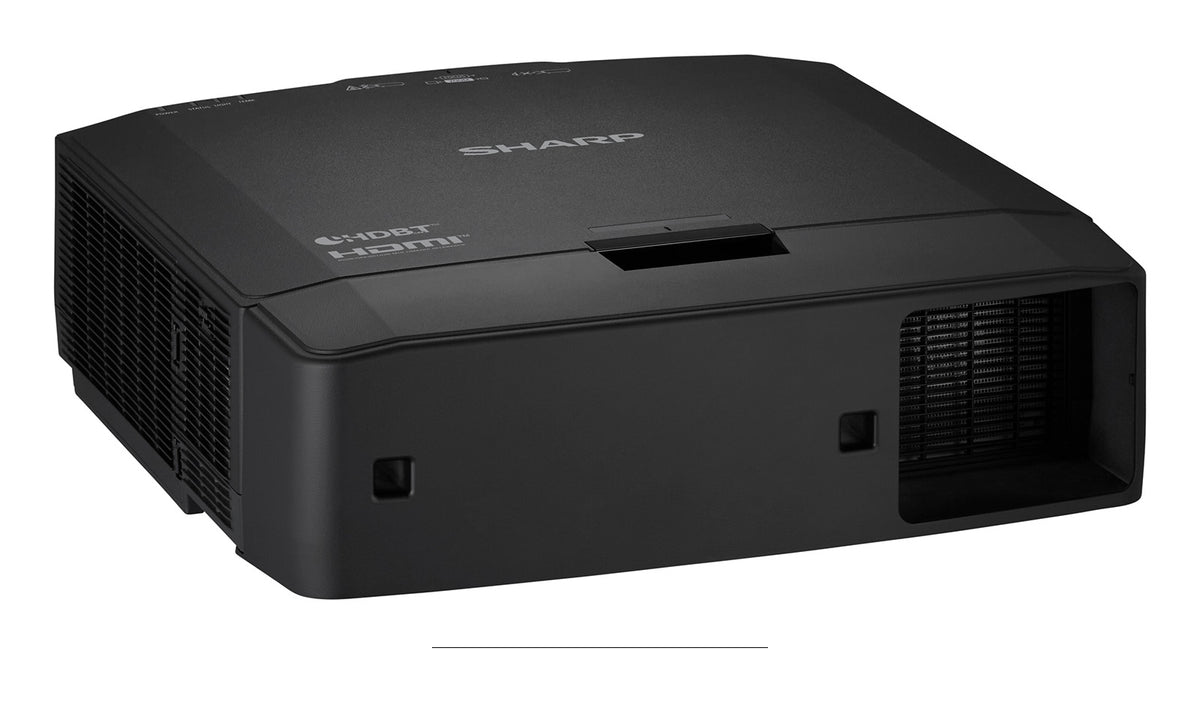

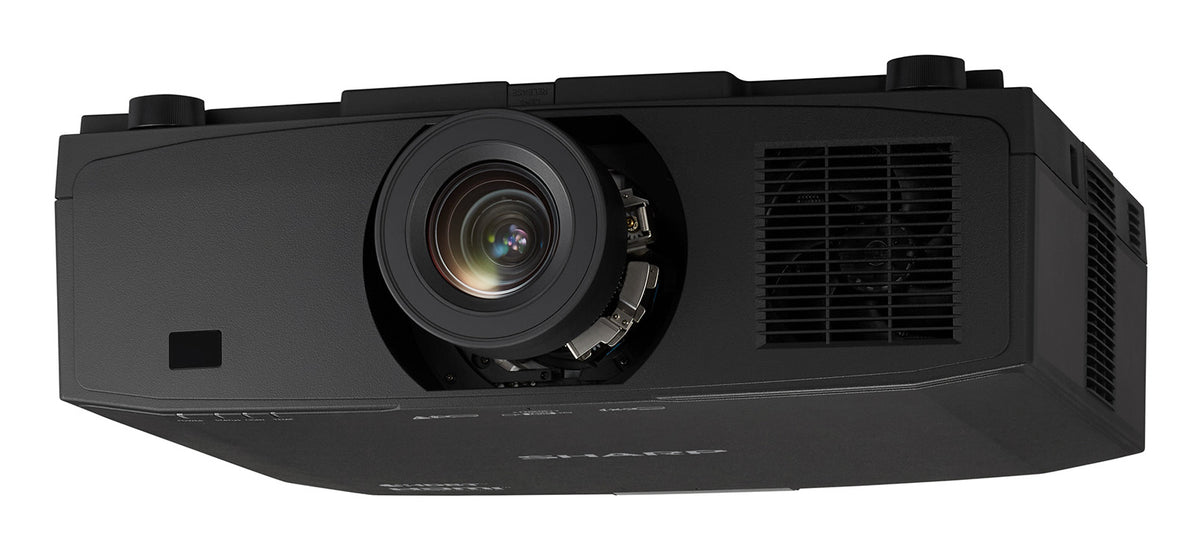

Sharp V801U Standard throw projector 8000 ANSI lumens 3LCD XPV801U
- Brand:
- Sharp
- Part number:
- XPV801U
- EAN:
- 4550556169509
- Model:
- V801U
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: Sharp Display Solutions Europe GmbH, Landshuter Allee 12-14, 80637 München, Allemagne · infomail@sharp.eu
Description
Versatile and value-driven performance
Sharp’s V Series, a highly cost-effective projection solution, combines installation flexibility, low maintenance, and long-lasting laser performance within a compact and budget-friendly design. Using 3LCD technology, it achieves intense color and precise white-point calibration thanks to 12-bit color processing for deep contrast and saturation, making it ideal for education, corporate, leisure, and simulation environments.
Compatible with existing mounts and lenses, the V Series makes upgrading from previous lamp or laser models simple, enhancing assets and reducing costs while adopting next-generation features.
Sharp's Pro Assist software allows for remote setup and adjustment, as well as advanced features like geometric correction, edge blending, extensive lens shift support, and flexible, precise integration.
3LCD, 1920 x 1200 (WUXGA), 16:10, 3000000:1, 8000 Lm / 8300 Lm Center, 499 x 164 x 407 mm, 11.2 kg
- No more lamp replacements – up to 20,000 hours of maintenance-free operation thanks to the laser light source.
- Get excellent performance – without compromising on quality or ease of use.
- Low noise level – at 32dB, the silent technology will not disturb your meeting.
- Impress with vivid colors and contrast – brilliant white and a wide color gamut with highly dynamic contrast.
- Incredible display capabilities – impressive free-tilt and portrait installation capability, class-unique geometric adjustment, picture-in-picture, and camera-based blending.
Specifications
| Projector | |
|---|---|
| Supported aspect ratios | 16:10 |
| Smart projector | Yes |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Throw distance | 0.7 - 50.9 m |
| Projector brightness | 8000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 30° |
| Light source | |
| Light source type | Laser |
| Light source service life | 20000 h |
| Lens system | |
| Focus | Motorized |
| Zoom capability | Yes |
| Zoom type | Auto/Manual |
| Lens shift, horizontal range | 0 - 20% |
| Lens shift, vertical range | 0 - 50% |
| Video | |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1280 x 768, 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes | 480p, 576p, 720p, 1080i, 1080p |
| Video color modes | DICOM simulation mode |

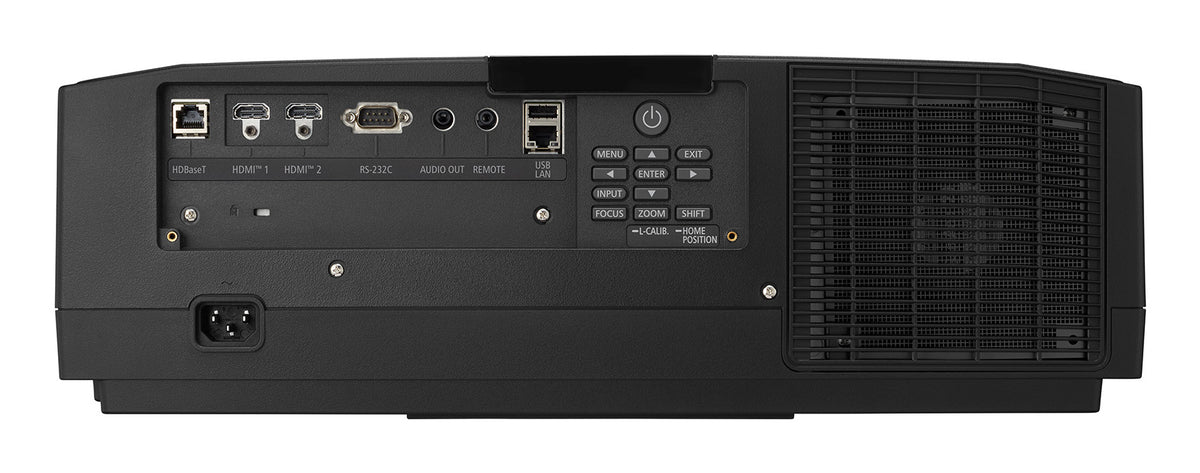

| Ports & interfaces | |
| HDBaseT port | Yes |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L,R) input | 1 |
| Audio (L,R) output | 1 |
| Serial interface type | RS-232 |
| HDMI ports quantity | 2 |
| Network | |
| Ethernet | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Web browser | Yes |
| Features | |
| Noise level (economic mode) | 32 dB |
| HDCP | Yes |
| On-Screen Display (OSD) | Yes |
| Number of OSD languages | 27 |
| Test pattern | Yes |
| Noise level | 42 dB |
| Password protection | Yes |
| Design | |
| Product type | Standard throw projector |
| Product color | Black |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 467 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 421 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 499 mm |
| Depth | 407 mm |
| Height | 164 mm |
| Weight | 11.2 kg |
| Packaging content | |
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | Power |
| User guide | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Sustainability certificates | ErP |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, EAC, RoHS |
