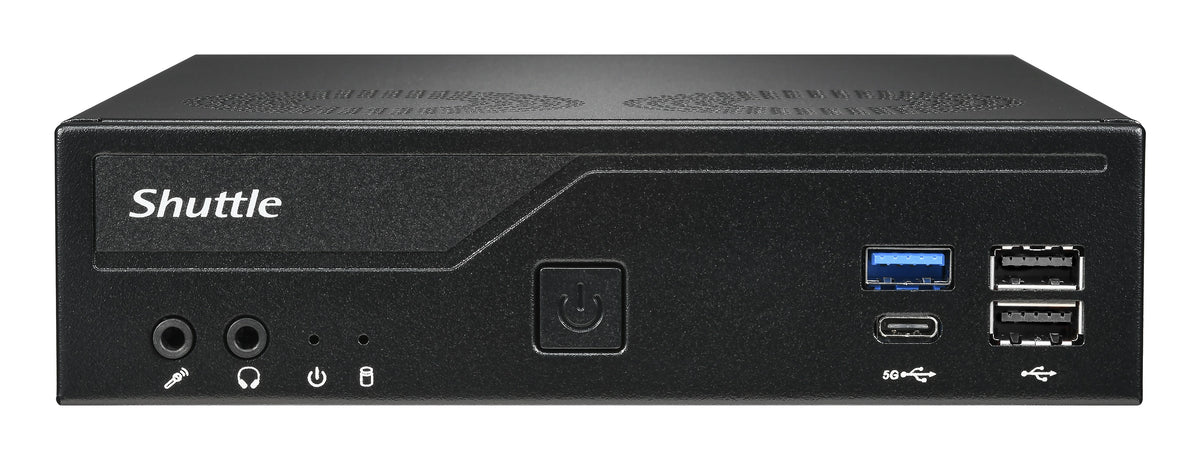

Shuttle XPС slim DH610V2 PC/workstation barebone 1.35 l size
€304,99
€252,06 excl. VAT
· VAT 21 % included in the price
Skip to product information
Shuttle XPС slim DH610V2 PC/workstation barebone 1.35 l size
- Brand:
- Shuttle
- Part number:
- DH610V2
- EAN:
- 0887993008950
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
€304,99
€252,06 excl. VAT
· VAT 21 % included in the price
Description
- 1.35L PC size Black
- 2 SO-DIMM Maximum internal memory: 96 GB DDR5-SDRAM
- HDD & SSD 2.5,M.2
- On-board graphics adapter
- Ethernet
Specifications
| Processor | |
|---|---|
| Built-in processor | No |
| Memory | |
| Installed internal memory | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| ECC | No |
| Non-ECC | Yes |
| Storage media | |
| Installed storage drives | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive sizes | 2.5,M.2 |
| NVMe | Yes |
| Graphics | |
| On-board graphics adapter | Yes |
| Performance | |
| Chipset | Intel H610 |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| BIOS types | AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet | Yes |
| Wi-Fi | No |
| LAN controller | Intel I226, Intel I219V |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial port | 2 |
| DC-in jack | Yes |
| Design | |
| Chassis type | 1.35L PC size |
| Product color | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Power, HDD |
| Housing material | Metal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RCM, VCCI, ETL, CB, RoHS |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
| Weight | 1.3 kg |
| Package weight | 2.1 kg |
| Packaging content | |
| Power cable included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
