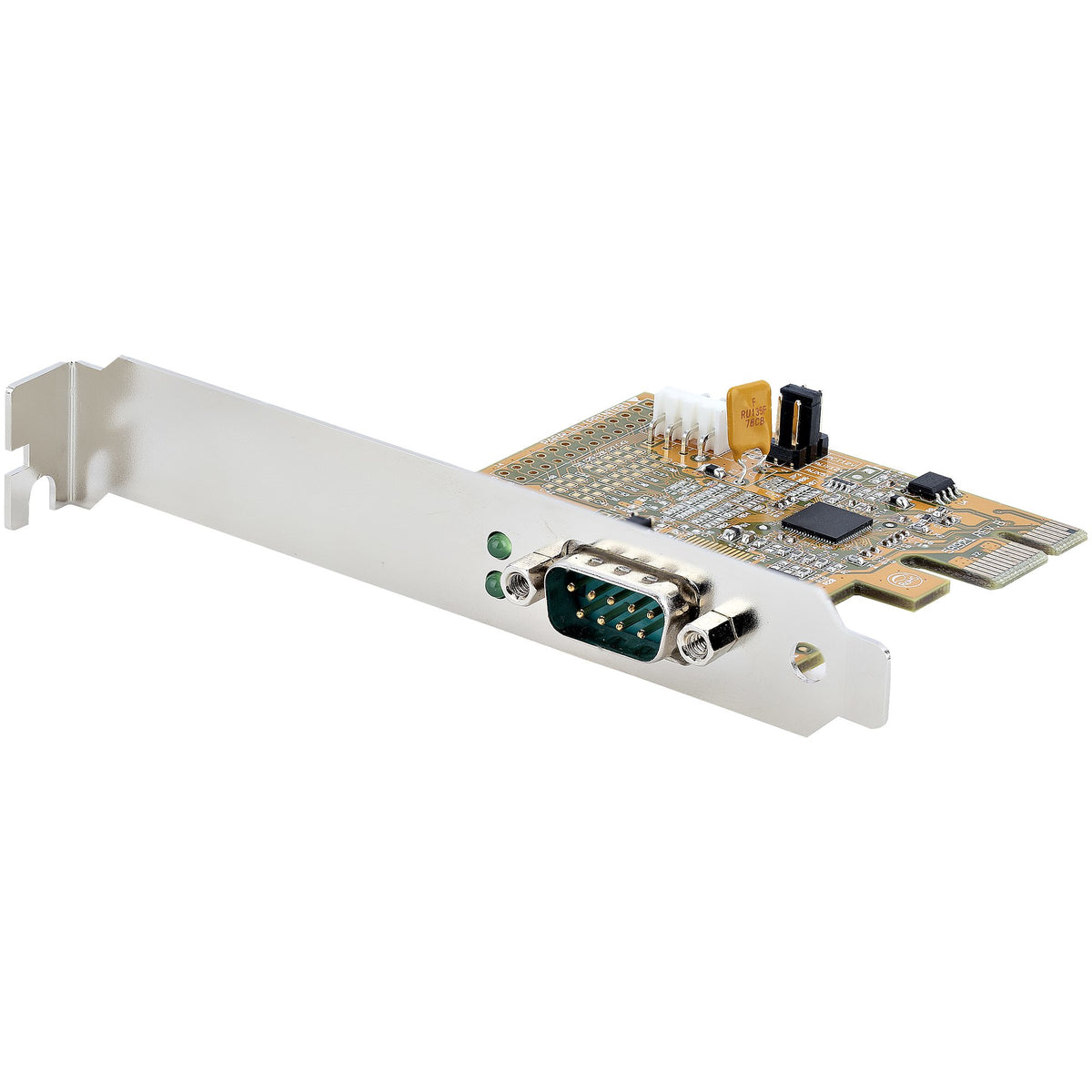

StarTech.com 11050-PC-SERIAL-CARD Interface Card and Adapter Internal
StarTech.com 11050-PC-SERIAL-CARD Interface Card and Adapter Internal
- Brand:
- StarTech.com
- Part number:
- 11050-PC-SERIAL-CARD
- EAN:
- 0065030894777
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: StarTech.com Ltd., 45 Artisans Crescent, London, Ontario N5V 5E9, Canadá · www.startech.com
EU responsible person: StarTech.com Limited (entidad Europa), Celsiusweg 16, 5928 PR Venlo, Países Bajos. Tel. +31 (0)20 7006 073. Contacto: https://www.startech.com/en-eu/contact
Description
921.6 Kbps Baud Rate per Port | 256-byte FIFO | PCIe 2.0 x1
Add serial communication support to your desktop computer or small form factor (SFF) system using this serial card. RS-232 (DB9) compatibility allows for control and communication with a serial peripheral device.
Legacy Connectivity
Install this card to enable continued use of legacy serial devices, avoiding downtime and costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for the logistics, manufacturing, and freight industries, as well as the IT industry, such as point-of-sale equipment, security systems, A/V installations, etc.
Connect with Ease
The 1-port RS-232 card features 16C1050 UART support, 256-byte FIFO (transmit/receive), bidirectional speeds up to 921.6 Kbps, an included low-profile bracket for SFF systems, and serial port status LED lights. Additionally, it is compatible with Windows and Linux systems for maximum compatibility.
StarTech 1-Port PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, Serial Card, 16C1050 UART, Low Profile and Full Height, COM Retention, Win/Linux (11050-PC-SERIAL-CARD)
- PCIE TO SERIAL: Connect an RS232 (DB9) serial device to a computer with this serial card for PC. Includes support for the high-performance 16C1050 UART. Monitor activity with the built-in status LED lights on the DB9 PCI Express card
- DEVICE COMPATIBILITY: Connect barcode scanners, receipt printers, scales, PLCs, medical devices, etc. The PCIe UART card supplies 5V or 12V power through pin 9. Includes a low-profile bracket
- APPLICATIONS: Ideal for applications such as server rooms, industrial control/automation, logistics, and labs. Continue using legacy hardware with this PCIe RS232 card. The DB9 port accepts serial cables with screw locks
- SPECIFICATIONS: 16C1050 UART / 921.6 Kbps / 256 Byte FIFO / COM Retention / Win/Linux Compatible / Asix AX99100 Chipset / Odd/Even/Space/None parity modes / 5/6/7/8/9 data bits / PCIe 2.0 x1 / Low-profile bracket
- THE IT PRO'S CHOICE: Designed and built for IT professionals, this PCIe to RS232 card is backed for 2 years, including free lifetime 24/5 multilingual technical support
Specifications
| Ports & Interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| Serial port | 1 |
| Interface serial type | RS-232 |
| Design | |
| Internal | Yes |
| Product color | Yellow |
| LED indicators | Activity |
| Features | |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| Data transfer rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Flow control support | Yes |
| Parity bit | Even, Mark, None, Odd, Space |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 67 mm |
| Height | 18 mm |
| Weight | 42 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 145 mm |
| Package depth | 212 mm |
| Package height | 41 mm |
| Package weight | 200 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Quantity per master case | 50 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 340 mm |
| Other features | |
| Material | Steel |
