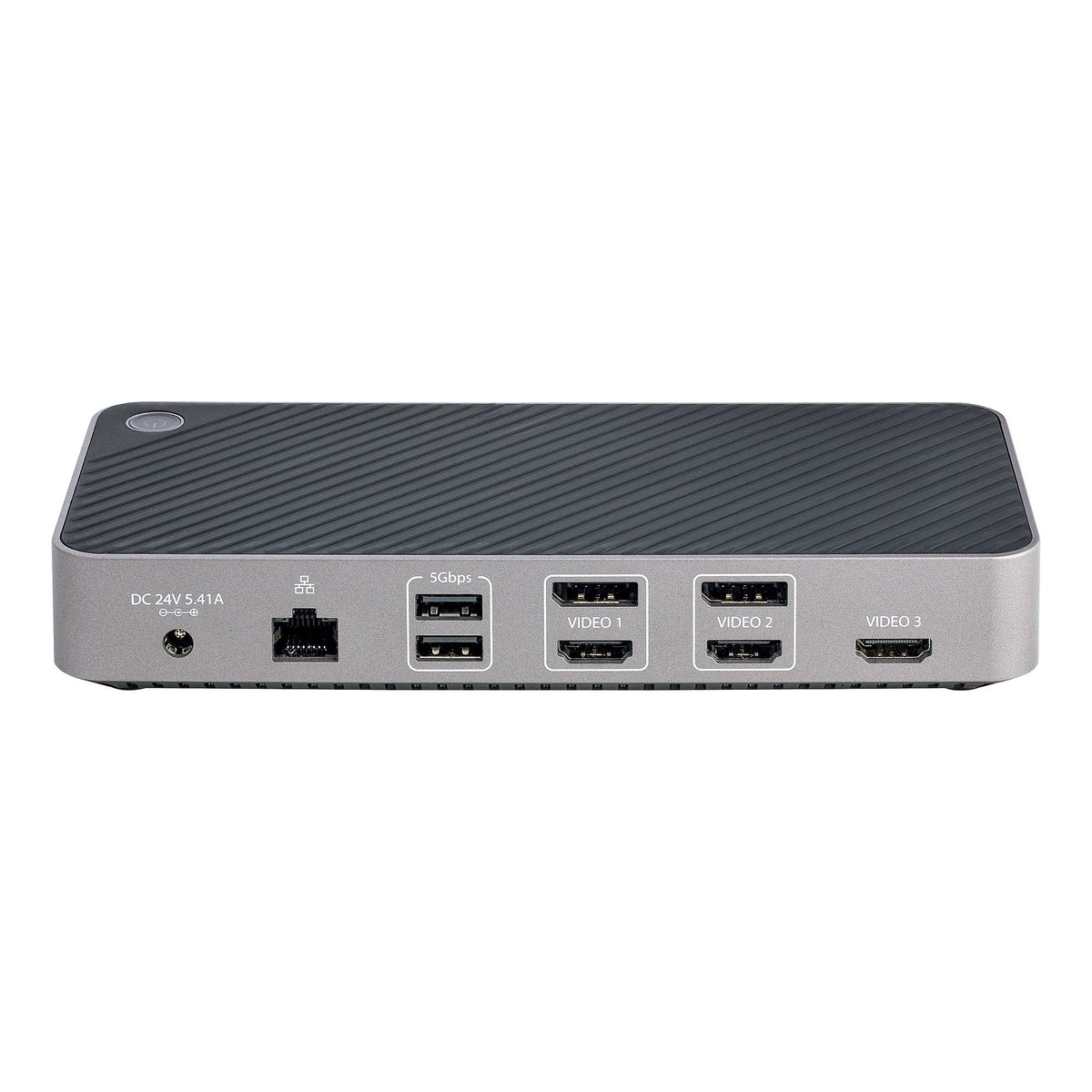

StarTech.com 116E-USBC-DOCK Laptop Docking Station and Port Replicator Wired

Standardize to perfection across all platforms with triple 4K display support

This Triple 4K USB-C monitor docking station allows for extensive workstation flexibility by offering support for USB-C, or Thunderbolt 3/Thunderbolt 4 laptops, and supports multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

Enhance Productivity with Triple 4K Video

This triple-4K docking station uses a combination of its integrated DisplayLink® graphics controller and your computer's DP Alt-Mode enabled USB-C port to provide three independent 4K displays.

Connect any combination of HDMI and/or DisplayPort monitors to video ports 1 and 2 (DisplayLink®), at resolutions up to 4K at 60 Hz. Connect an HDMI monitor to video port 3 (DP Alt-Mode), at resolutions up to 4K at 30 Hz. This high-resolution video performance is ideal for detailed graphical applications, enhancing your productivity by expanding your laptop's display capabilities.

Full-Featured Docking Station

Connect the docking station to your computer's USB 3.2 Gen 2 (10Gbps) Type-C port to enjoy a wide range of port connectivity, options, and features. The docking station features:

- 2x USB-A ports and 1x USB-C port (USB 3.2 Gen 1 at 5 Gbps) for USB peripheral devices.

- 1x USB-A port and 1x USB-C port (USB 3.2 Gen 2 10Gbps) compliant with BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones.

- 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired local area network (LAN) connection.

- 1x 3.5 mm 4-position TRRS audio jack for a 3.5 mm headset.

100W USB Power Delivery

The USB-C docking station supports 100W USB Power Delivery with the included power adapter. This allows you to charge the connected host device, as well as devices connected to the BC 1.2 USB charging ports.

For added protection of connected USB devices, the BC 1.2 enabled USB charging ports feature overcurrent protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.

Easy Deployment

Connect the docking station to your host computer using the included 1m USB-C cable. The docking station is compatible with major operating systems, including Windows, macOS, ChromeOS, and Ubuntu. This docking station has been designed for seamless compatibility with any compatible USB-C equipped device in your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max/M2 MacBooks. The dock features a side K-Slot for added security in shared workspaces (e.g., BYOD hoteling/hot-desking).

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

- Advanced Windows Layout Utility: Configure and save custom Windows layouts.

- MAC Address Pass-Through Utility: Improve network security.

- USB Event Monitoring Utility: Track and log connected USB devices.

- Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds over wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, visit www.StarTech.com/Connectivity-Tools

StarTech USB-C Docking Station for 3 Monitors - Triple 4K HDMI/DP USB Type-C Dock - 5x USB Hub - GbE - 100W PD - Port Replicator - Thunderbolt 3/4 Compatible (116U-USBC-DOCK)

• Universal USB-C Dock: Compatible with major operating systems, such as Windows, MacOS, ChromeOS, and Ubuntu - Ideal for mixed device fleets and laptop refresh cycles as it simplifies standardization
• GPU Independent: Overcome GPU limitations for multi-monitor setups, maximize ROI, and future-proof your infrastructure with a dock that ensures cross-platform compatibility
• Triple 4K Displays for Increased Productivity: Connect up to 3 4K monitors via a single USB C port - Supports 2 4K60 monitors via DisplayLink (HDMI 2.0 or DisplayPort 1.2) and a third 4K30Hz HDMI display via DP 1.2 Alt-Mode
• 100W PD: Includes a power adapter capable of charging your primary laptop and supplying power to all ports - Downstream USB and USB-C ports supply up to 7.5W (1.5A) for devices
• The Choice of IT Pros: Our docking stations are rigorously tested in our innovation lab to ensure reliability and compatibility - Designed to support large-scale deployments
