StarTech.com 117B-USBC-MULTIPORT Laptop Docking Station and Port Replicator

Create a mobile workstation with dual or triple 4K video via HDMI and/or DisplayPort (MST support required), three USB-A ports, Gigabit Ethernet, and power delivery pass-through to charge your laptop.

This USB-C Multiport Adapter uses DP 1.4 Alt Mode and MST technologies from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C docking station provides 2 HDMI outputs, 2 DisplayPort outputs, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) hub, and a Gigabit Ethernet port, all through a single connection to a laptop's USB-C or Thunderbolt 3/4™ port. Additionally, it offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port using an integrated 60cm USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.

High-Performance Triple Video via MST

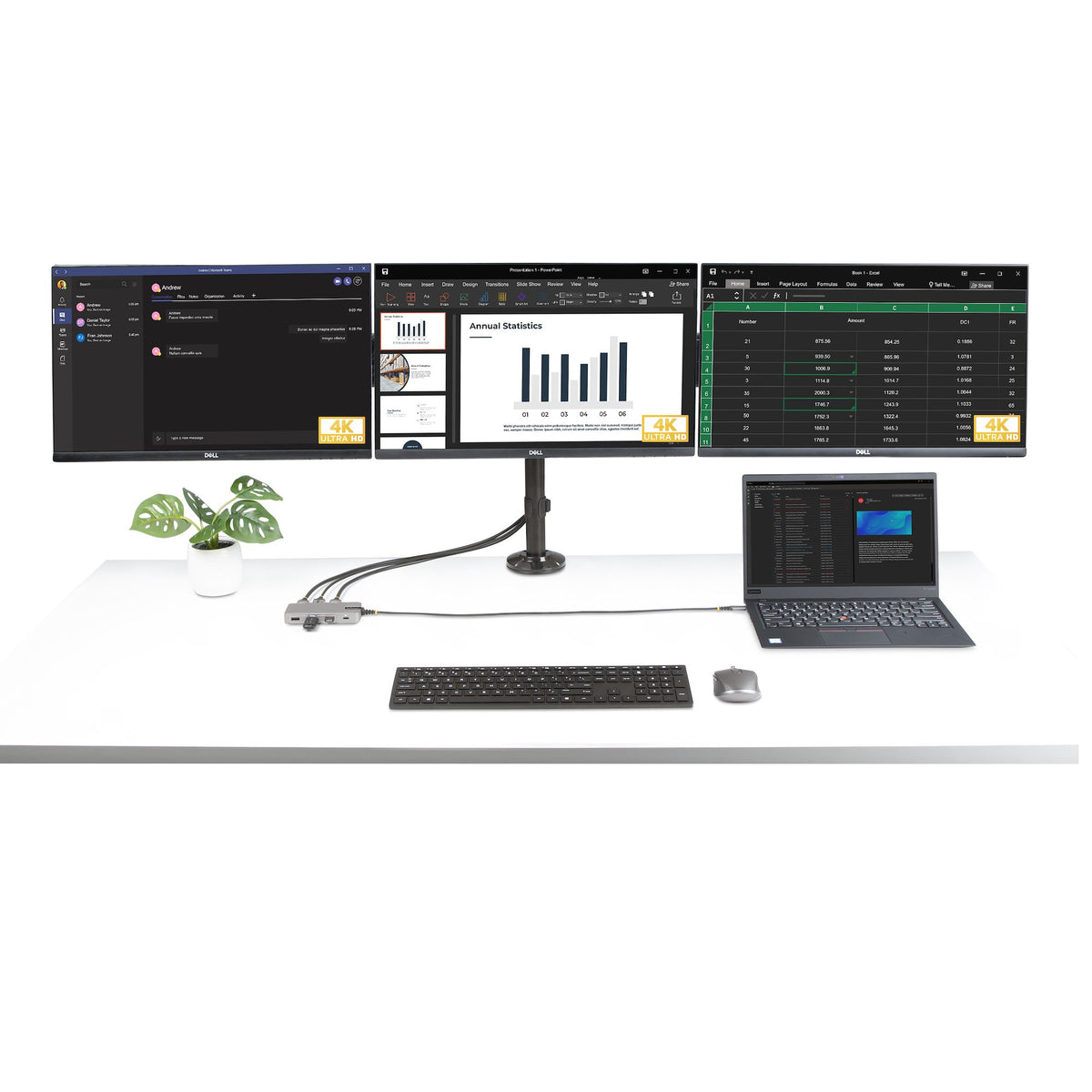

The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors at resolutions up to 2x 4K (3840 x 2160p) at 60Hz and 1x 4K (3840 x 2160p) at 30Hz (Intel 11th Gen or later with DSC is required for maximum performance). The multiport adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, offering the ability to choose a combination of video output types. The multiport adapter uses the capabilities of the connected laptop's integrated or discrete GPU to enable high-performance graphics with minimal CPU usage.

Video performance, such as resolution and refresh rate across the three monitors, depends on the host computer's graphics processing unit (GPU). A DisplayPort 1.4 compatible source device with DSC and MST is required to achieve maximum performance. Please check the specifications of the host computer and monitors to determine expected video performance.

Connect USB Peripherals

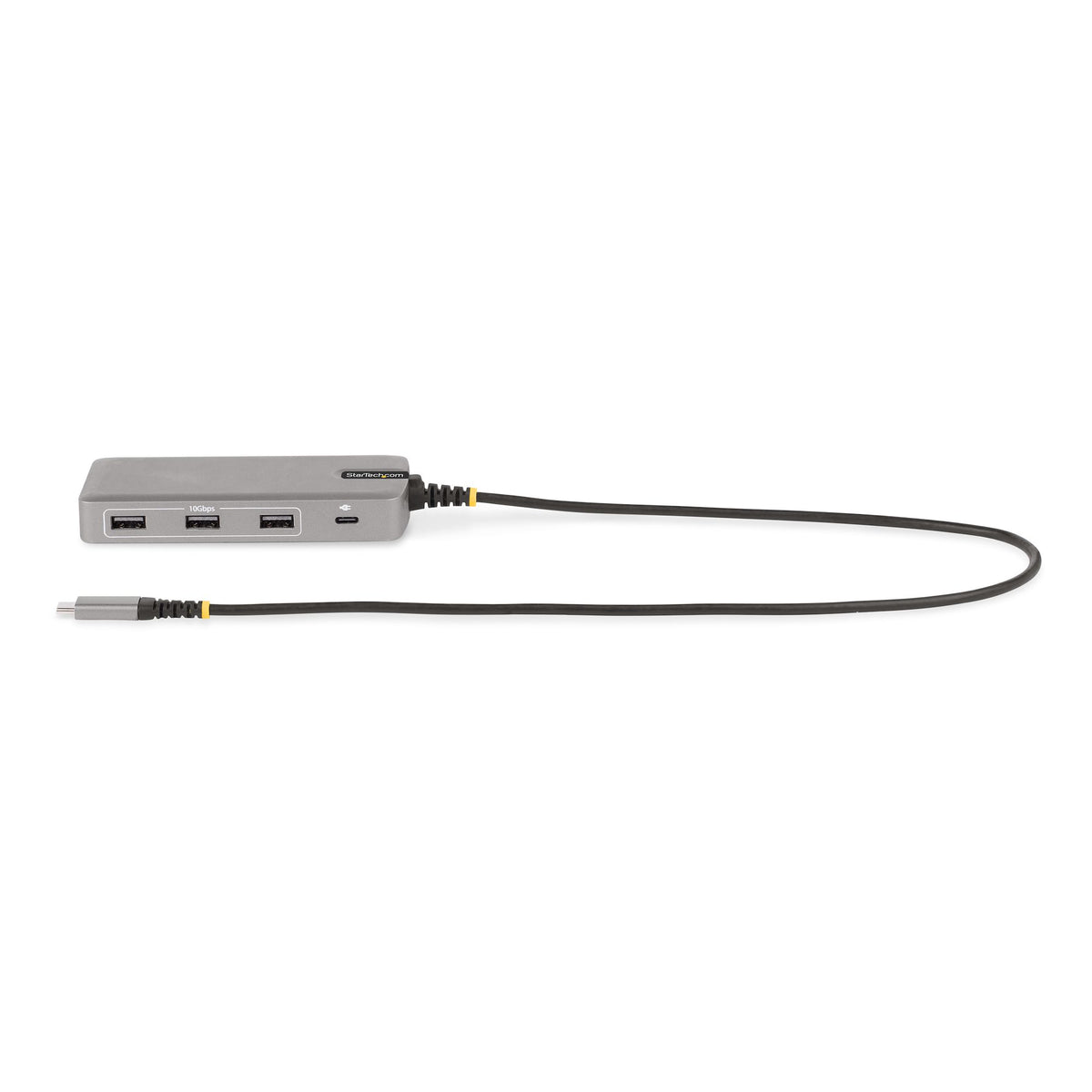

The USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).

Extra-Long Cable and Durable Construction

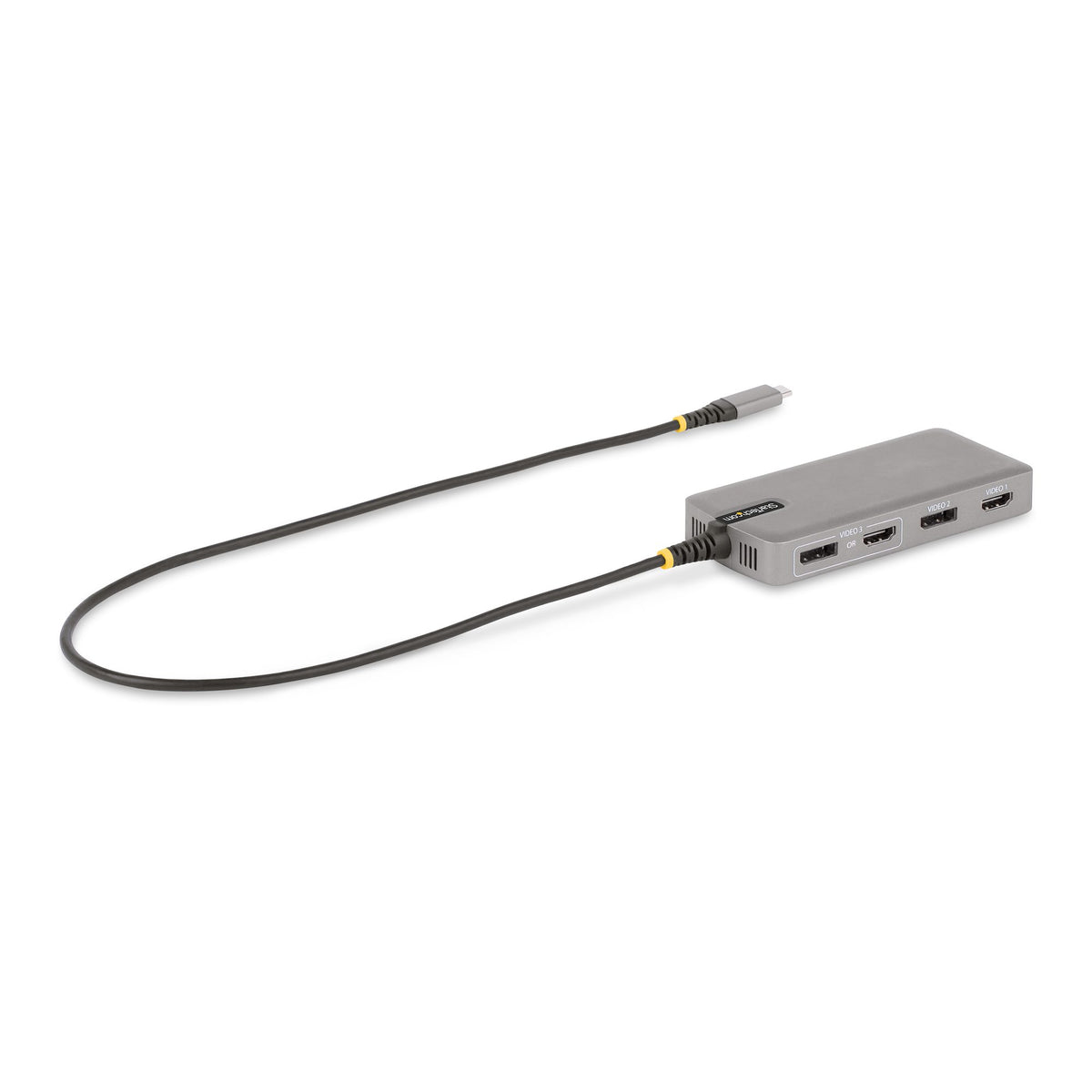

The mini docking station features an integrated 60cm (2ft) USB-C host cable with high-quality TPE jacket and strain relief, for increased durability and longevity. The multiport adapter housing features integrated EMI shielding to protect the mainboard and onboard chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.

100W Power Delivery

Connect a USB-C power adapter to the pass-through port to charge the host laptop.

Reliable Network Connectivity

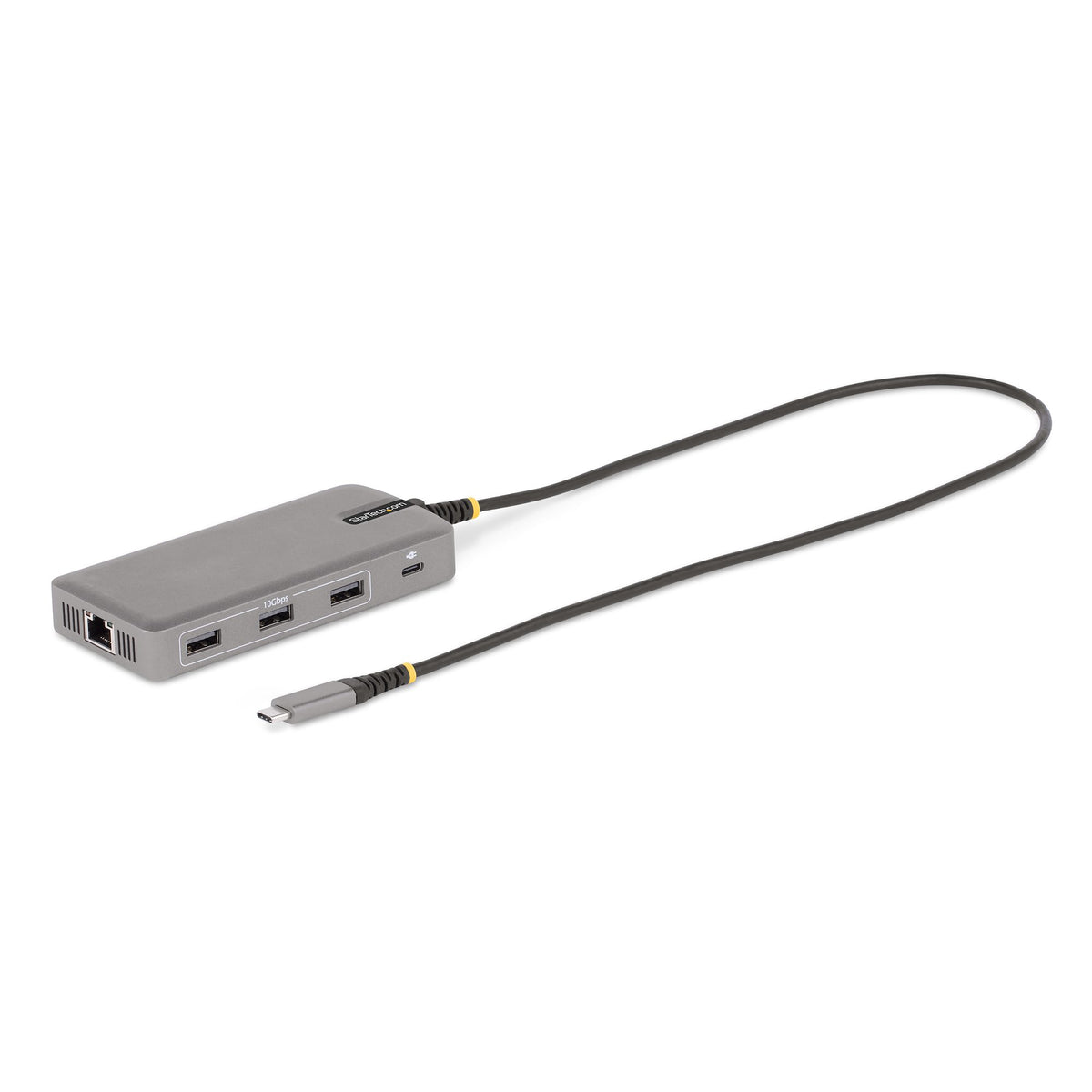

The Gigabit Ethernet port ensures reliable wired network access. Wake on Lan (WoL) support allows you to boot the host computer from a remote location.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

- Advanced Windows Layout Utility: For configuring and saving custom Windows layouts.

- MAC Address Pass-Through Utility: For enhancing network security.

- USB Event Monitoring Utility: For tracking and logging connected USB devices.

- Wi-Fi Auto Switch Utility: Enables users to quickly access faster network speeds via a wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, visit: www.startech.com/connectivity-tools

StarTech USB-C Multiport Adapter for 3 Monitors - 4K 60Hz Dual + HDMI and DisplayPort 4K 30Hz - 3-Port USB Hub - 100W PD - Travel Docking Station - Win/Chrome (117B-USBC-MULTIPORT)

• HIGH-PERFORMANCE TRIPLE 4K: Driverless setup - Provides a combination of 2 HDMI 2.0b and 2 DisplayPort 1.4 video outputs - 3-port USB-A 3.2 Gen 2 10Gbps hub - Gigabit Ethernet (WoL/PXE Boot) - 100W PD Pass-Through
• FLEXIBLE MULTI-MONITOR OUTPUT: Three, two, or one monitor - Up to 2x 4K 60Hz and 1x 4K 30Hz (Intel 11th Gen minimum or later with DSC) - Uses the laptop's integrated GPU for uncompressed video with low CPU usage
• EXTRA-LONG CABLE AND DURABLE CONSTRUCTION: Integrated 60cm host cable features high-quality TPE jacket and strain relief - EMI shielding prevents signal interference between electronic devices for reliable performance
• COMPATIBILITY: Travel docking station for USB-C, USB4, TB3, and TB4 computers with Windows and ChromeOS - 100W PD with 15W reserved for the adapter and up to 85W for host laptop charging - DP 1.2 Alt Mode at lower resolutions
• OUR ADVANTAGE: Connectivity tools included such as MAC Address Pass-Through for network security, Wi-Fi Auto Switch for improved network performance, USB Event Monitoring, and Windows Layout Configuration
