StarTech.com 122-USBC-HDMI-4K-VGA USB Graphics Adapter 3840 x 2160 Grey
StarTech.com 122-USBC-HDMI-4K-VGA USB Graphics Adapter 3840 x 2160 Grey
- Brand:
- StarTech.com
- Part number:
- 122-USBC-HDMI-4K-VGA
- EAN:
- 0065030895590
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: StarTech.com Ltd., 45 Artisans Crescent, London, Ontario N5V 5E9, Canadá · www.startech.com
EU responsible person: StarTech.com Limited (entidad Europa), Celsiusweg 16, 5928 PR Venlo, Países Bajos. Tel. +31 (0)20 7006 073. Contacto: https://www.startech.com/en-eu/contact
Description

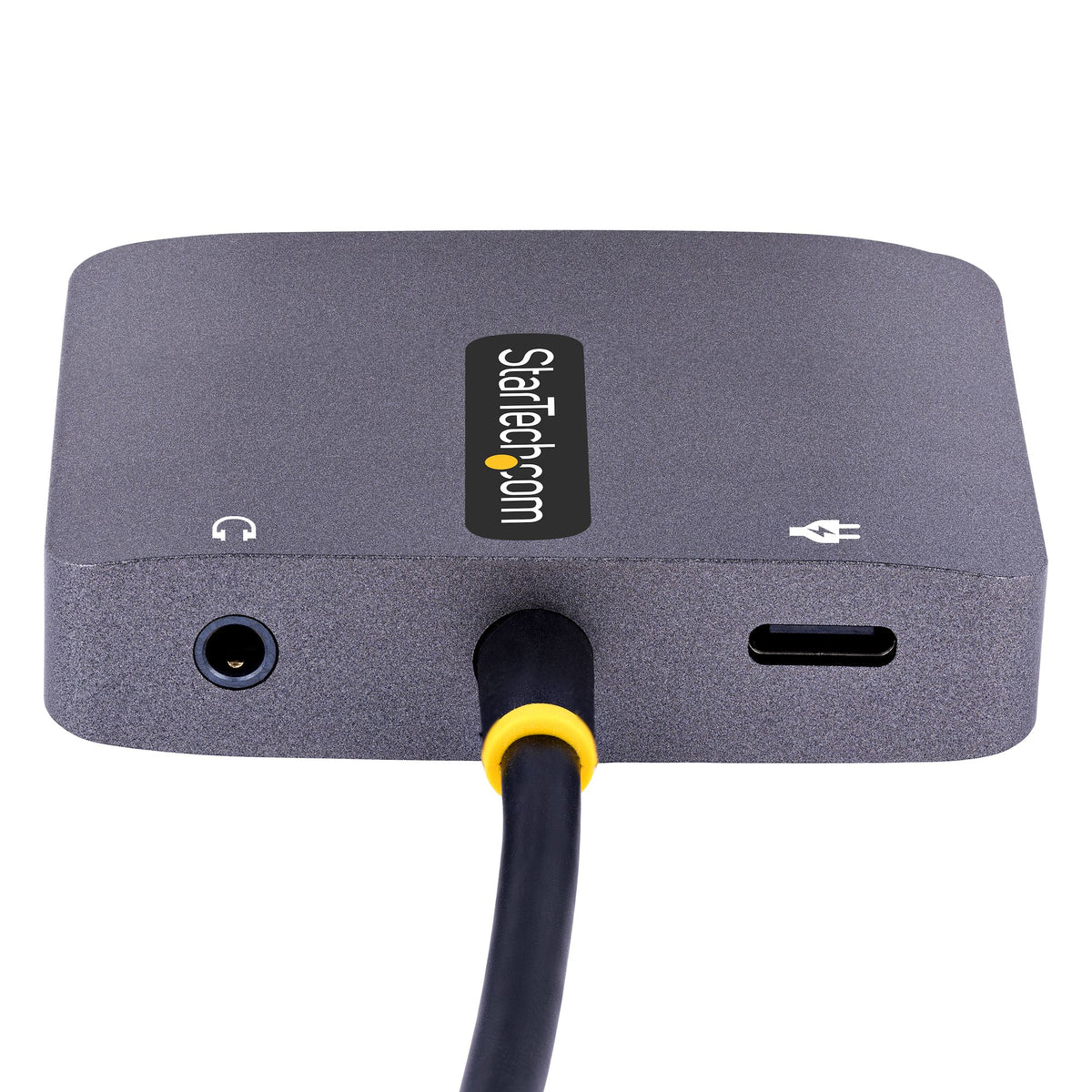

Audio and video adapter with pass-through power delivery for one monitor (HDMI or VGA) or two mirrored monitors (HDMI/VGA)
This USB-C™ multiport video adapter offers a portable solution for connecting USB Type-C devices to HDMI and/or VGA displays, with up to 100W of Power Delivery.
Versatile Video Connectivity
This multiport adapter supports a single HDMI display with resolutions up to 4K 60Hz, a single VGA display with resolutions up to 1920x1200 60Hz, or dual HDMI and VGA displays with resolutions up to 1080p. The 3.5mm audio port can be used to connect speakers while presenting with a VGA projector/display, or for headphones.
Extended Cable Length
The adapter is equipped with an extra-long 30cm attached cable, providing extended reach to reduce strain on ports and connectors on 2-in-1 devices, tablets, or laptops on elevated stands.
Power Delivery
The USB-C to HDMI and VGA adapter is bus-powered for easy travel use. Optionally, connect a USB-C power adapter and charge your laptop using the Power Delivery 3.0 pass-through feature, which supports up to 100W of charging.
Connectivity for Any Laptop
The USB Type-C display adapter is compatible with USB-C DisplayPort Alt-mode, Thunderbolt 3, and Thunderbolt 4 laptops, Ultrabooks, Chromebooks, and MacBooks. Plug-and-play compatibility (no drivers/software required) with any operating system, including Windows, macOS, iPadOS, Chrome OS, and Linux.
Note:
The 3.5mm audio output will not be active unless a display is connected to the product. This adapter does not support MST or extended dual displays.
StarTech USB-C Video Adapter, USB Type-C to HDMI VGA Multiport Adapter with 3.5mm Audio Output, 4K 60Hz HDR, 100W PD 3.0, Thunderbolt 3/4 Compatible (122-USBC-HDMI-4K-VGA)
- SINGLE MONITOR USB-C ADAPTER: USB-C DP Alt-mode to HDMI 2.0b (4K 60Hz, HDR, 7.1 Audio, HDCP 2.2) or VGA (1920x1200 60Hz), USB-C Power Delivery 3.0 (100W), and 3.5mm Audio
- EXTRA-LONG CABLE: Features a 30cm attached cable for increased reach and to reduce port/connector strain on devices/tablets like Surface Pro 7, iPad Pro, etc.
- RELIABLE PERFORMANCE: Bus-powered or via an external USB-C power adapter with up to 100W of Power Delivery 3.0 pass-through / Allows for full 100W charging for laptops
- COMPREHENSIVE HOST COMPATIBILITY: USB-C DP Alt-mode, Thunderbolt 3, and Thunderbolt 4 laptops from HP/DELL/Microsoft/Lenovo or Surface/Ultrabook/Chromebook/MacBook (Intel/M1) / Win, Mac, iPadOS, Linux
- APPLICATIONS: Use the 3.5mm audio output to add speakers when connecting to a VGA projector / Mirrored HDMI+VGA displays are ideal for presentations
Specifications
| Performance | |
|---|---|
| USB connector | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 2 |
| Number of HDMI ports | 1 |
| Quantity of VGA (D-Sub) ports | 1 |
| Maximum transfer distance | 30 m |
| Quantity of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports | 1 |
| VGA (D-Sub) output | Yes |
| HDMI version | 2.0b |
| Maximum resolution | 3840 x 2160 Pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (HDMI) | 3840 x 2160 Pixels |
| Maximum resolution (analog) | 1920 x 1200 Pixels |
| Audio output channels | 7.1 channels |
| Design | |
| Product color | Gray |
| Built-in USB cable | Yes |
| Weight and dimensions | |
| Width | 60 mm |
| Depth | 45 mm |
| Height | 14 mm |
| Weight | 41 g |
| Environmental conditions | |
| Operating temperature range | 0 - 45 °C |
| Storage temperature range | -10 - 70 °C |
| Operating relative humidity range | 10 - 85% |
| Packaging | |
| Package width | 147 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 245 g |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Quantity per box | 60 piece(s) |
| Master (outer) case width | 541 mm |
| Master (outer) case length | 348 mm |
| Master (outer) case height | 324 mm |
| Harmonized System (HS) code | 84733020 |
