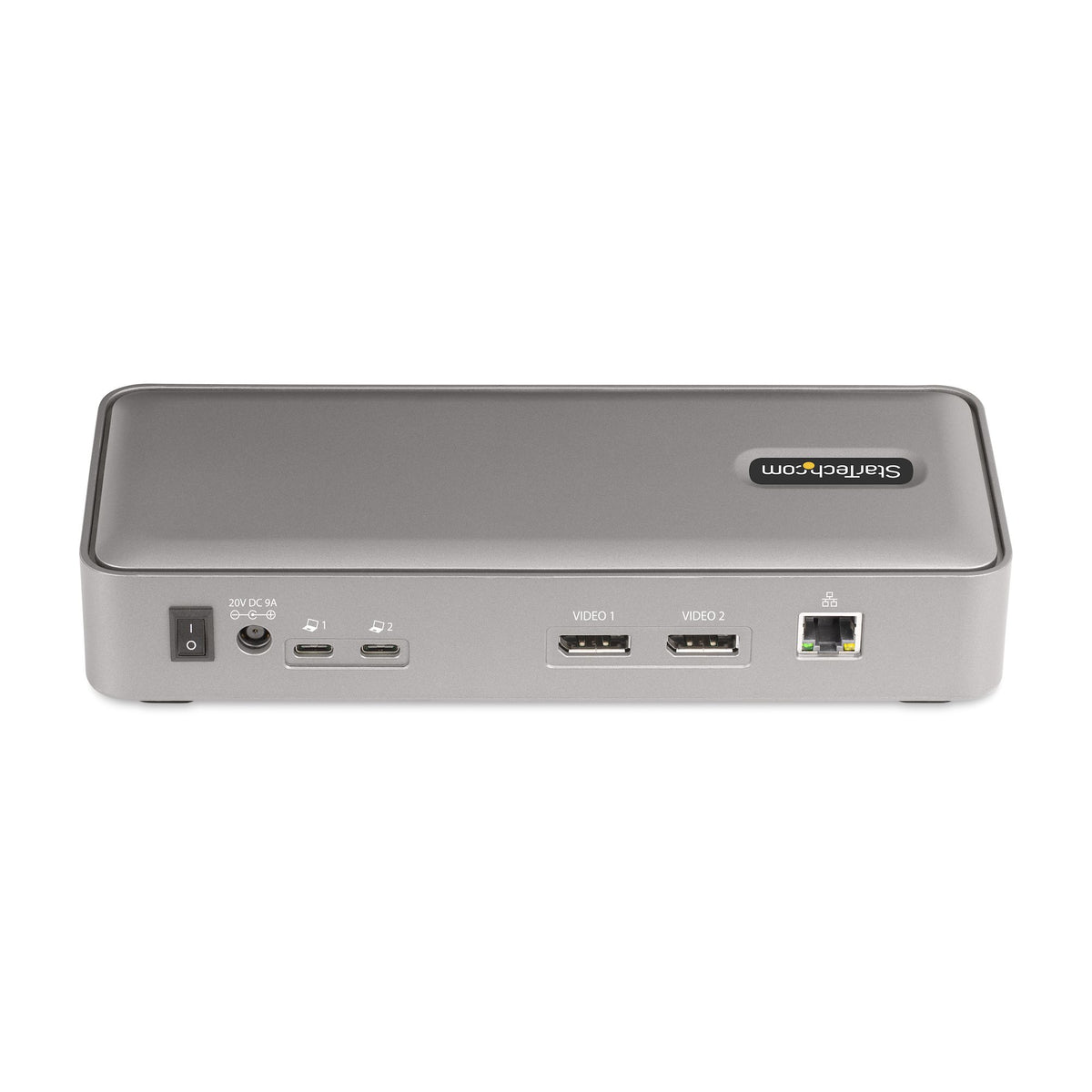

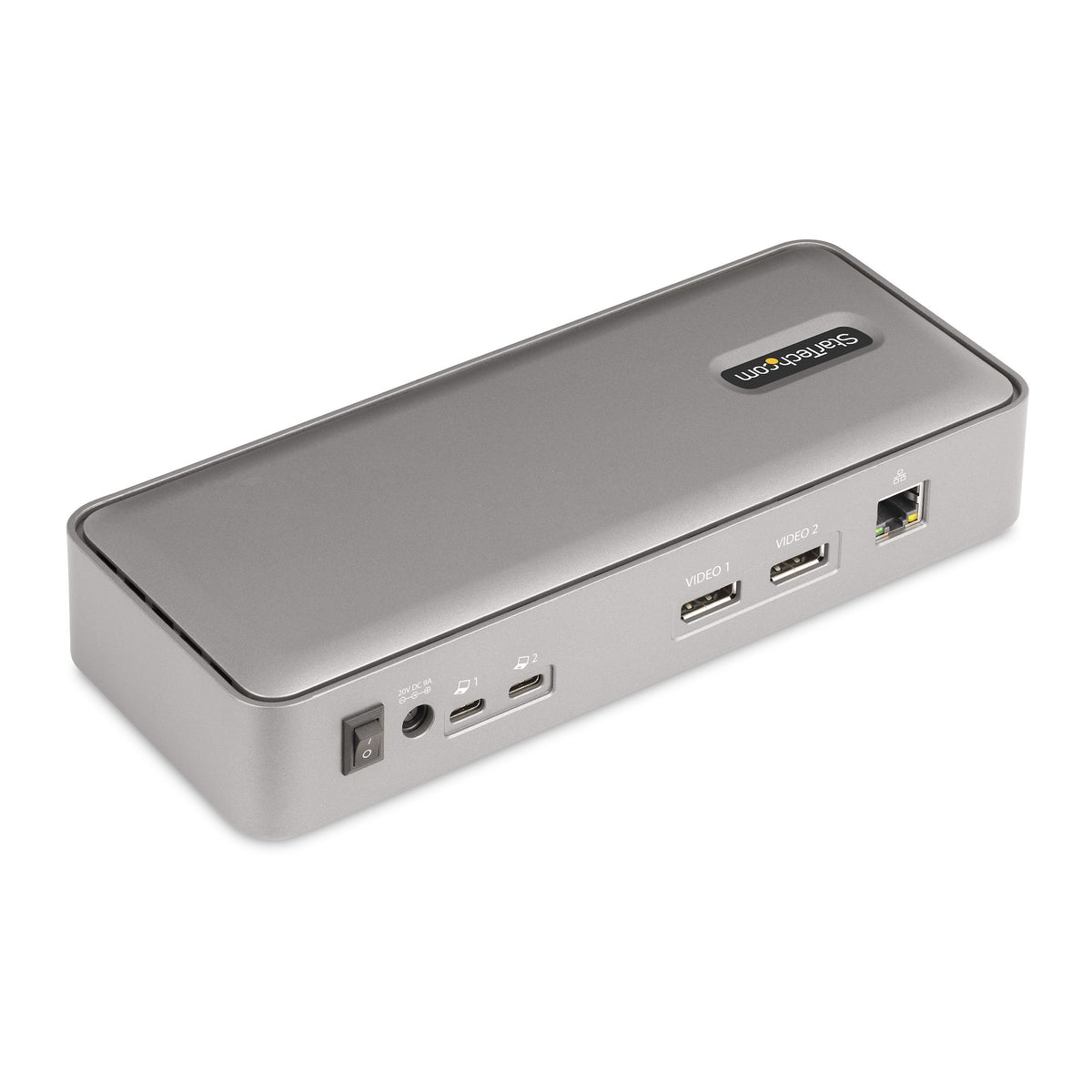

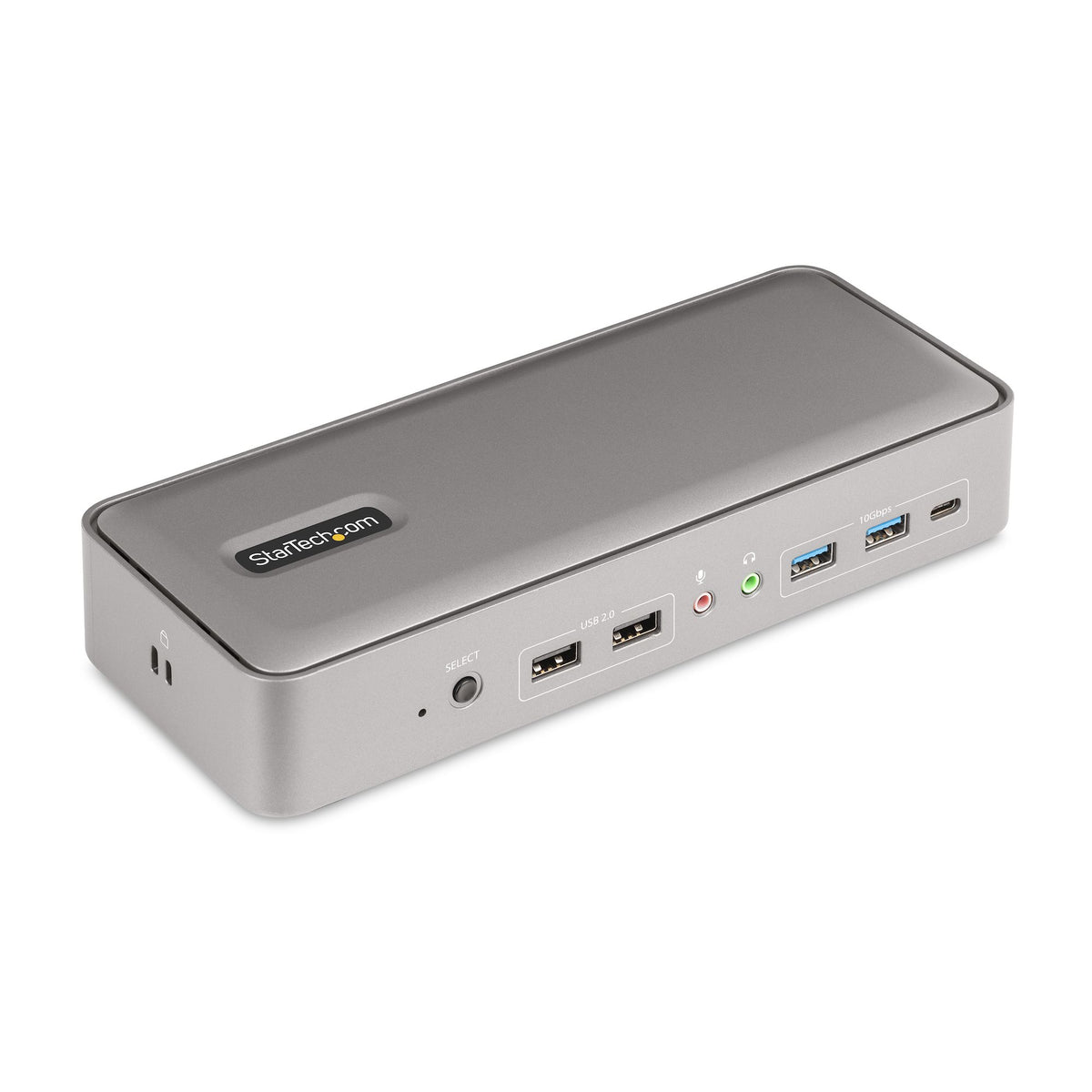

StarTech.com 129UE-USBC-KVM-DOCK KVM switch Silver

Share a dual 4K 60Hz workstation between two laptops via a USB Type-C connection

Connect and switch between two laptops to access your workstation peripherals, including two monitors, and easily switch between laptops with the push of a button. Downloadable Hot-Key software (available for Windows and macOS) allows users to switch between computers using keyboard shortcuts.

DisplayLink Certified

The dock is DisplayLink certified for Plug and Display compatibility with Windows, ChromeOS, and macOS, allowing operation and switching between multiple computers with different operating systems. DisplayLink technology also supports two extended displays on Apple M-series MacBooks, which are not natively capable of driving more than one external display. DisplayLink certification ensures compatibility with resolutions up to 4K 60Hz on both external displays.

Simultaneous Charging of Two Laptops

The KVM dock supports Power Delivery (PD) 3.0 and charges both connected laptops via USB-C. The dock provides 90W of power to the active host computer and 45W to the second PC, ensuring both laptops can be charged simultaneously.

Full-Featured Docking Station

Connect two USB-C computers to this dock to access a wide range of port connectivity, options, and features. The dock features:

- 2 DisplayPort ports for dual-display output with support for resolutions up to dual 4K at 60Hz.

- 2 USB-A (USB 2.0 at 480 Mbps) HID ports for USB devices, such as a keyboard and mouse.

- 2 USB-A and 1 USB-C port (USB 3.2 Gen 2 10 Gbps) for connecting high-speed USB peripherals, such as SSD storage.

- 1 Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.

- 1 3.5mm, 3-position TRRS connector for stereo audio output.

- 1 3.5mm, 2-position microphone connector for mono audio input.

- 2 K-slots (standard/nano) to secure the dock with a security cable (sold separately) for added security.

The dock features a mounting pattern so it can be mounted when combined with StarTech.com mounting accessories (sold separately). Our mounting accessories allow for mounting to the VESA pattern on the back of a monitor or on any flat surface. The following mounts are compatible with this product:

- SSPMSUDWM - Docking Station Surface Mounting Bracket

- SSPMSVESA - VESA Mount for Docking Station

Enhance productivity and device management with the StarTech.com Connectivity Tools application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of computer connectivity accessories. The software suite includes:

- Advanced Windows Layout Utility: Configure and save custom window layouts.

- MAC Address Pass-Through Utility: Improve network security.

- USB Event Monitoring Utility: Track and log connected USB devices.

- Wi-Fi Auto Switch Utility: Allow users to quickly access faster network speeds via a wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, visit: www.StarTech.com/Connectivity-Tools

Note: StarTechLink software is not supported on Linux; however, basic hardware KVM functionality is supported. Linux users will not have access to the following software features:

- Configure laptop screen location for mouse cursor/keyboard edge scrolling.

- UFP (Upstream Facing Port) switching.

- Ctrl-Alt-Del functionality.

- Hot-Key switching.

- KM Master for mouse cursor/keyboard edge scrolling

StarTech USB-C KVM Docking Station for Laptop - USB Type-C Port Replicator for 2x 4K 60Hz DisplayPort Monitors - 5x USB Hub - 90/45W PD for 2 Laptops - Win Mac (129UE-USBC-KVM-DOCK)

• DUAL LAPTOP DOCK: Dock and switch between two laptops and share two 4K 60Hz monitors, keyboard, mouse, and other USB peripherals - Switch between two laptops using a button on the front of the docking station
• CHARGE TWO LAPTOPS SIMULTANEOUSLY: USB-C KVM docking station charges two connected laptops via USB-C (PD 3.0) - The included 180W power adapter automatically provides 90W to the active host and 45W to the standby host
• COMPATIBILITY: Supports mixed systems, Win, macOS, ChromeOS, Linux - Works with Intel, AMD, and Apple M-series, allowing two external displays even on laptops that only support one natively - Drivers required on Win/macOS
• CONNECTIVITY: Ports for a variety of devices - 2x USB 2.0 Type-A HID, 2x USB-A (10Gbps), USB-C (10Gbps), 2x DisplayPort, 2 USB-C host ports, Gigabit Ethernet, 3.5mm stereo audio, 3.5mm microphone, 2 K-Slots (Standard/Nano)
• OUR ADVANTAGE: Connectivity Tools included such as MAC Address Pass-Through for network security, Wi-Fi Auto Switch to improve network performance, USB Event Monitoring, and Window Layout Configuration
