StarTech.com FPCEILBTB signage display stand 75" Black
- Brand:
- StarTech.com
- Part number:
- FPCEILBTB
- EAN:
- 0065030880671
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: StarTech.com Ltd., 45 Artisans Crescent, London, Ontario N5V 5E9, Canadá · www.startech.com
EU responsible person: StarTech.com Limited (entidad Europa), Celsiusweg 16, 5928 PR Venlo, Países Bajos. Tel. +31 (0)20 7006 073. Contacto: https://www.startech.com/en-eu/contact
Description
Dual-Monitor Mount | Full Motion | For 32" to 75" Displays
Create impressive and effective digital signage with this ceiling TV mount, which suspends two 32" to 75" TVs one behind the other. Ideal for open spaces in retail, hospitality, restaurants, and many other areas, the dual-monitor mount provides a versatile way to inform customers and doubles the audience viewing your content.
Back-to-Back TV Mounting
The dual-monitor mount securely holds two flat-screen TVs back-to-back in a landscape orientation. The steel mount is compatible with VESA-mounted displays up to 600 x 400 mm with a weight capacity of 50 kg (110 lb) per display.

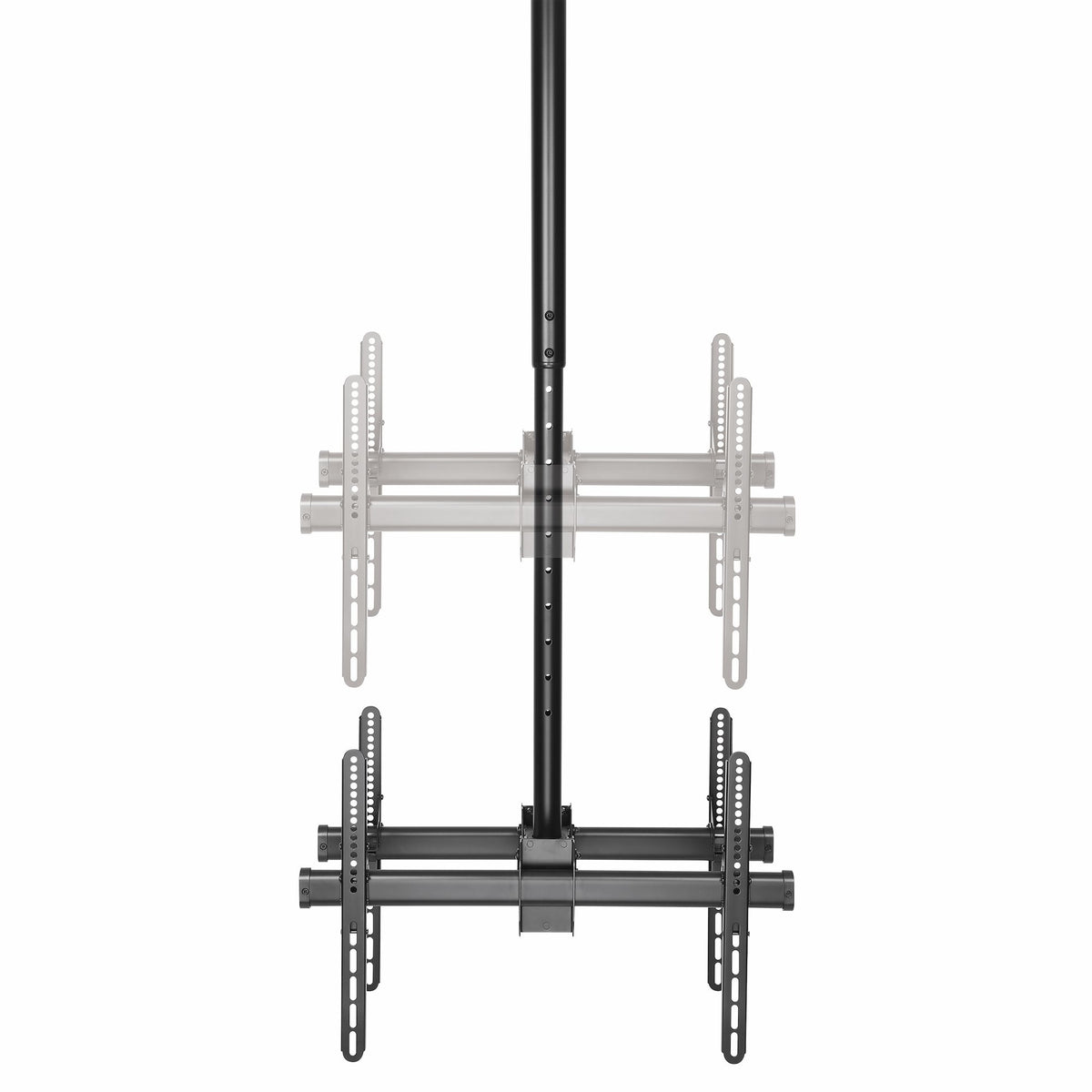

Height Adjustable
Featuring a telescopic pole, the ceiling TV mount allows you to suspend two displays at the desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).

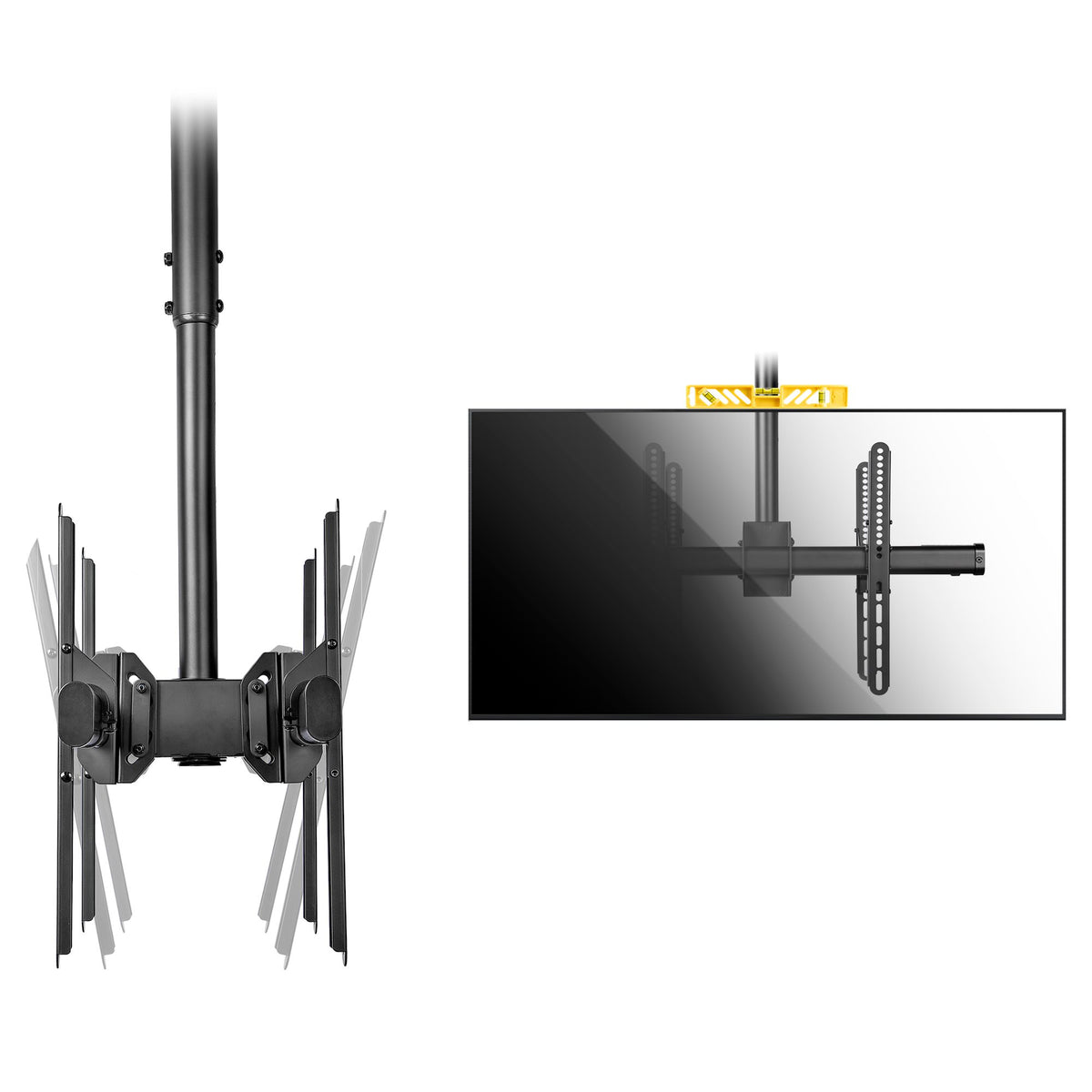

Easy Screen Adjustment
For optimal viewing, the mount allows you to swivel the screen 360 degrees around the pole. The free-tilt design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Fit the Ceiling
The dual-monitor mount adapts to a wide variety of ceiling types. Rotate the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Installation and Cable Management
The ceiling mount offers a hook-and-mount design for easy setup. Cable management channels keep cords hidden. Post-installation leveling adjustments of +/-3 degrees ensure an ideal position after hanging.
StarTech Dual Back-to-Back Ceiling TV Mount - Ceiling Mount for 2 TVs - VESA Mount for 32" to 75" TVs
- 75" DUAL CEILING MOUNT: Heavy-duty VESA-compatible ceiling mount supports displays, including curved TVs up to 75" (110 lb/50 kg) per display - Height-adjustable pole from 3.5' (106cm) to 5.0' (156cm) from the ceiling
- WIDE RANGE OF MOTION: Ceiling TV mount allows both screens to rotate 360° around the telescopic pole, and to individually swivel +/-3° and tilt +5/-20° - TV position is secured with the provided tools
- VERSATILE INSTALLATION: Adjustable multi-screen ceiling mount allows the pole to be adjusted and fixed at +/-60 degrees for sloped/angled ceilings to ensure screens are level
- COMPATIBILITY: Screws/spacers included. Compatible with VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
- NEAT AESTHETIC: Dual-screen ceiling mount offers a hook-and-mount design for easy installation and integrated cable management - Ideal for digital signage applications
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity | 90 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 45 kg |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Ceiling |
| Minimum VESA mount compatibility | 200 x 200 mm |
| Maximum VESA mount compatibility | 600 x 400 mm |
| Mounting panel interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Ergonomics | |
| Height adjustments | Yes |
| Height adjustment range | 1060 - 1560 mm |
| Tilt angle | -20 - 5° |
| Swivel angle (range) | -180 - 180° |
| Rotation angle | 360° |
| Adjustable | Yes |
| Design | |
| Product color | Black |
| Housing material | Steel |
| Anti-theft function | No |
| Weight and dimensions | |
| Width | 165 mm |
| Depth | 680 mm |
| Depth (max) | 68 cm |
| Height | 835 mm |
| Weight | 9.8 kg |
| Packaging | |
| Package width | 934 mm |
| Package depth | 317 mm |
| Package height | 153 mm |
| Package weight | 10.8 kg |
| Packaging content | |
| User manual | Yes |
| Screws included | Yes |
| Number of screws | 46 |
| Wrench included | Yes |
| Nuts included | Yes |
| Number of nuts | 2 |
| Washers included | Yes |
| Number of washers included | 12 |
| Spacers included | Yes |
| Number of spacers included | 32 |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Master (outer) case width | 345 mm |
| Master (outer) case length | 960 mm |
| Master (outer) case height | 312 mm |
| Quantity per master case | 2 piece(s) |
