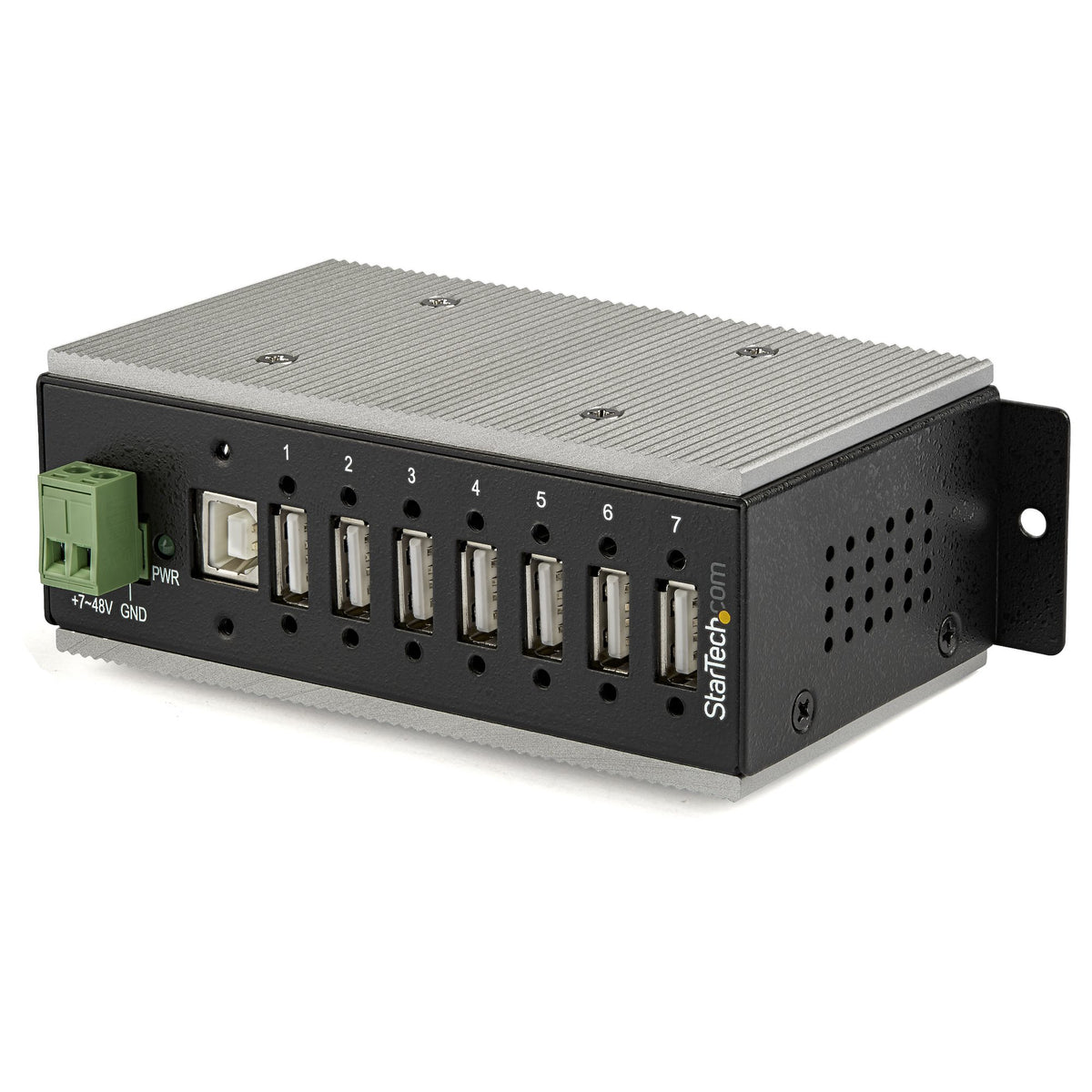

StarTech.com HB20A7AME USB 2.0 Type-B 480 Mbit/s interface hub Black
StarTech.com HB20A7AME USB 2.0 Type-B 480 Mbit/s interface hub Black
- Brand:
- StarTech.com
- Part number:
- HB20A7AME
- EAN:
- 0065030878616
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: StarTech.com Ltd., 45 Artisans Crescent, London, Ontario N5V 5E9, Canadá · www.startech.com
EU responsible person: StarTech.com Limited (entidad Europa), Celsiusweg 16, 5928 PR Venlo, Países Bajos. Tel. +31 (0)20 7006 073. Contacto: https://www.startech.com/en-eu/contact
Description
Extended Temperature | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
This industrial 7-port USB 2.0 hub, TAA compliant, provides the scalability needed in industrial environments under harsh conditions, as well as product labs, repair workshops, conference rooms, or office workstations. Thanks to its rugged, industrial-grade metal housing, it is designed to meet the advanced connection requirements of a large number of devices in factory or office settings.
Ideal for harsh environments
This industrial USB hub offers reliable performance thanks to its sturdy, high-quality metal housing. Compatible with a wide input range of a 7 to 48V DC terminal block, it offers the flexibility to power it as required, based on the power input capability of the user's environment.
It is perfect for harsh environments, as it also operates over a wide temperature range (-40°C to 85°C) and provides surge and electrostatic discharge (ESD) protection for each USB port, preventing damage to your connected devices.
Connect more USB devices
Designed for a high number of connections, this rugged USB 2.0 hub offers seven connection ports for connecting more USB devices and peripherals.
Place the hub where needed
Given the versatile installation options, it is possible to mount the hub where it is most appropriate within your usage environment. With integrated mounting brackets, included DIN rail mounting brackets, and an included 2-meter USB host cable, you can securely install the USB 2.0 hub on most surfaces, such as a wall, under a desk/table, or a rack.
StarTech.com also offers an external power adapter, ITB20D3250, sold separately. This universal DC power adapter has been designed as an alternative, backup, or replacement power source for StarTech.com's line of industrial USB hubs.
Works with legacy USB devices
The rugged USB hub is compatible with the full 480Mbps bandwidth of USB 2.0 and is backward compatible with legacy USB devices.
The HB20A7AME model is backed by StarTech.com's two-year warranty and free lifetime technical support.
The StarTech.com Advantage
- 7-PORT USB 2.0 HUB: Expand the connectivity of a USB Type-A equipped computer by adding 7x high-speed USB 2.0 ports with screw-lock; speeds up to 480Mbps, shared between devices; flexible power input between 7 to 48V DC
- EXTENDED TEMPERATURE RANGE: USB port expander rated for operation under temperatures between -40°C to 80°C, with 5% relative humidity
- ESD (ELECTROSTATIC DISCHARGE) PROTECTION: USB hub with 15kV (air) and 8kV (contact) protection against electromagnetic discharge (ESD) and 350W (surge protection); its sturdy metal enclosure is suitable for industrial or commercial environments under harsh conditions
StarTech.com Industrial 7-Port USB 2.0 Hub - 15kV ESD Protection - DIN Rail Mountable
- Host interface: USB 2.0 Type-B
- Hub interfaces: USB 2.0
- Number of ports: 7
- 480 Mbit/s
- Black Metal
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 2.0 Type-B |
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 7 |
| Ports quantity | 7 |
| Terminal block port | Yes |
| Performance | |
| Data transfer rate | 480 Mbit/s |
| Product colour | Black |
| Housing material | Metal |
| Overload protection | Yes |
| LED indicators | Power |
| Plug and Play | Yes |
| Certification | CE, FCC, TAA, RoHS, REACH |
| Power | |
| Power consumption | 28 W |
| Input voltage | 7 - 48 V |
| Input current | 4 A |
| Weight & dimensions | |
| Width | 63 mm |
| Depth | 130 mm |
| Height | 42 mm |
| Weight | 404 g |
| Packaging data | |
| Package width | 166 mm |
| Package depth | 242 mm |
| Package height | 55 mm |
| Package weight | 600 g |
| Packaging content | |
| Cables included | USB |
| User guide | Yes |
| DIN rail kit included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Master (outer) case width | 435 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 260 mm |
| Quantity per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Chipset | Genesys Logic - GL852GT |
