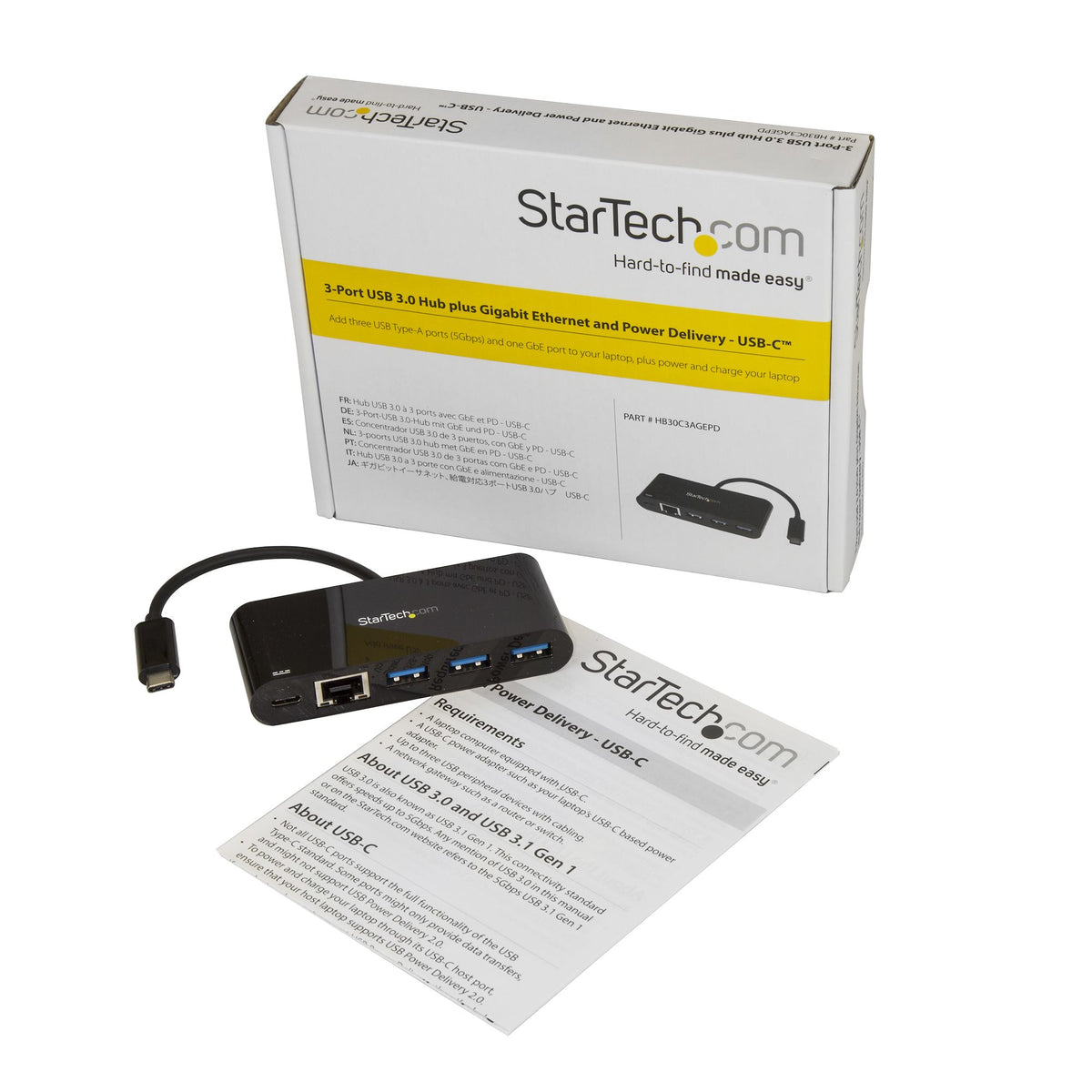

StarTech.com HB30C3AGEPD Wired laptop dock and port replicator
- Brand:
- StarTech.com
- Part number:
- HB30C3AGEPD
- EAN:
- 0065030867917
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: StarTech.com Ltd., 45 Artisans Crescent, London, Ontario N5V 5E9, Canadá · www.startech.com
EU responsible person: StarTech.com Limited (entidad Europa), Celsiusweg 16, 5928 PR Venlo, Países Bajos. Tel. +31 (0)20 7006 073. Contacto: https://www.startech.com/en-eu/contact
Description
Turn a laptop’s USB-C port into three USB Type-A ports (5Gbps) and one GbE port, plus provide power and charge your laptop
This 3-port USB 3.2 Gen 1 hub with Gigabit Ethernet pairs your USB peripheral and RJ45 network connections through a single hub, with support for USB Power Delivery. This means you can power and charge your laptop through its USB Type-C™ port, while simultaneously providing power to the hub. Thanks to its integrated USB Type-C™ cable and space-saving design, this versatile hub is a perfect portable solution for connecting devices that require conventional USB Type-A ports to your USB-C or Thunderbolt™ 3 equipped computer. Merge two essential port types into a single attractive hub. If your USB-C equipped laptop or MacBook lacks the ports you need, this hub can help. This versatile USB 3.2 Gen 1 multifunction hub allows you access not only to your USB peripheral devices, but also to wired Internet connections. It includes a Gigabit Ethernet port, so you can connect to a network in locations where a Wi-Fi® connection is unavailable or unreliable. Connect your USB devices in seconds. This USB hub has cross-platform compatibility, which means it works with a wide range of USB-C equipped laptop models that use a USB-C power adapter. It also works with various operating systems, such as Windows®, Mac, Linux®, and Chrome OS™. It installs automatically once you connect it to your laptop, so you can start working in seconds. Carry fewer cables and power adapters. This USB-C 3.0 hub supports USB Power Delivery 2.0 (USB PD 2.0), which means that instead of carrying several cables and power adapters, you can use your laptop's USB-C power adapter to power your laptop and the hub. Using a single power adapter, instead of two, avoids clutter and tangled cables while working. Take it wherever you go. Thanks to its compact and durable design, you can take this portable USB 3.2 Gen 1 hub wherever you go. Since it is compact, it is easy to carry inside your laptop bag, plus it takes up little space on a desk or table when connected to a workstation. For portable applications, the integrated (USB-C) host cable avoids having to remember to bring another cable.
StarTech 3-Port USB-C to USB 3.0 (5Gbps) Hub with Gigabit Ethernet and Power Delivery - USB C Adapter with Network Port (HB30C3AGEPD)
- 3-PORT USB-C HUB: Expand the connectivity of a USB-C equipped computer by adding 3x USB-A ports (USB 3.2 Gen 1 SuperSpeed 5Gbps) and a Gigabit Ethernet RJ45 port for wired network connectivity (WOL, "Wake-On-Lan", 10/100/1000 Mbps)
- POWER AND CHARGE YOUR LAPTOP: USB-C hub supports PD 2.0 (Power Delivery) passthrough up to 60W charging, when used with your USB Type-C power adapter; 7.4W reserved for hub operation/downstream ports
- SPEEDS UP TO 5Gbps: USB 3.2 Gen 1 SuperSpeed (5Gbps) shared with downstream devices, compatible with USB flash drives, data storage devices, keyboards, mice, webcams, headsets and microphones
- COMPACT AND PORTABLE: USB-C to USB-A adapter hub, lightweight, with plastic housing, integrated host USB-C cable (15cm) and small form factor [95mm x 41mm x 17mm]
- WIDE COMPATIBILITY: USB-C hub with Ethernet, OS independent, compatible with most operating systems, including Windows, macOS, Linux, iPadOS, and Chrome OS; compatible with USB 2.0 devices
Specifications
| Ports and Interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 60 W |
| Microphone, input jack | No |
| DC-in jack | No |
| Network | |
| Ethernet | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| VLAN tagging | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Product color | Black |
| UASP support | Yes |
| Housing material | Plastic |
| Power | |
| Wireless charger | No |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight and dimensions | |
| Width | 41 mm |
| Depth | 95 mm |
| Height | 17 mm |
| Weight | 44.9 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 145 mm |
| Package depth | 172 mm |
| Package height | 33 mm |
| Package weight | 115 g |
| Packaging content | |
| Quick start guide | Yes |
| Logistics data | |
| Quantity per master case | 60 pc(s) |
| Master (outer) case width | 95 mm |
| Master (outer) case length | 215 mm |
| Master (outer) case height | 60 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 0.15 m |
| Chipset | VIA/VLI - VL100, VIA/VLI - VL813, Realtek - RTL8153 |
