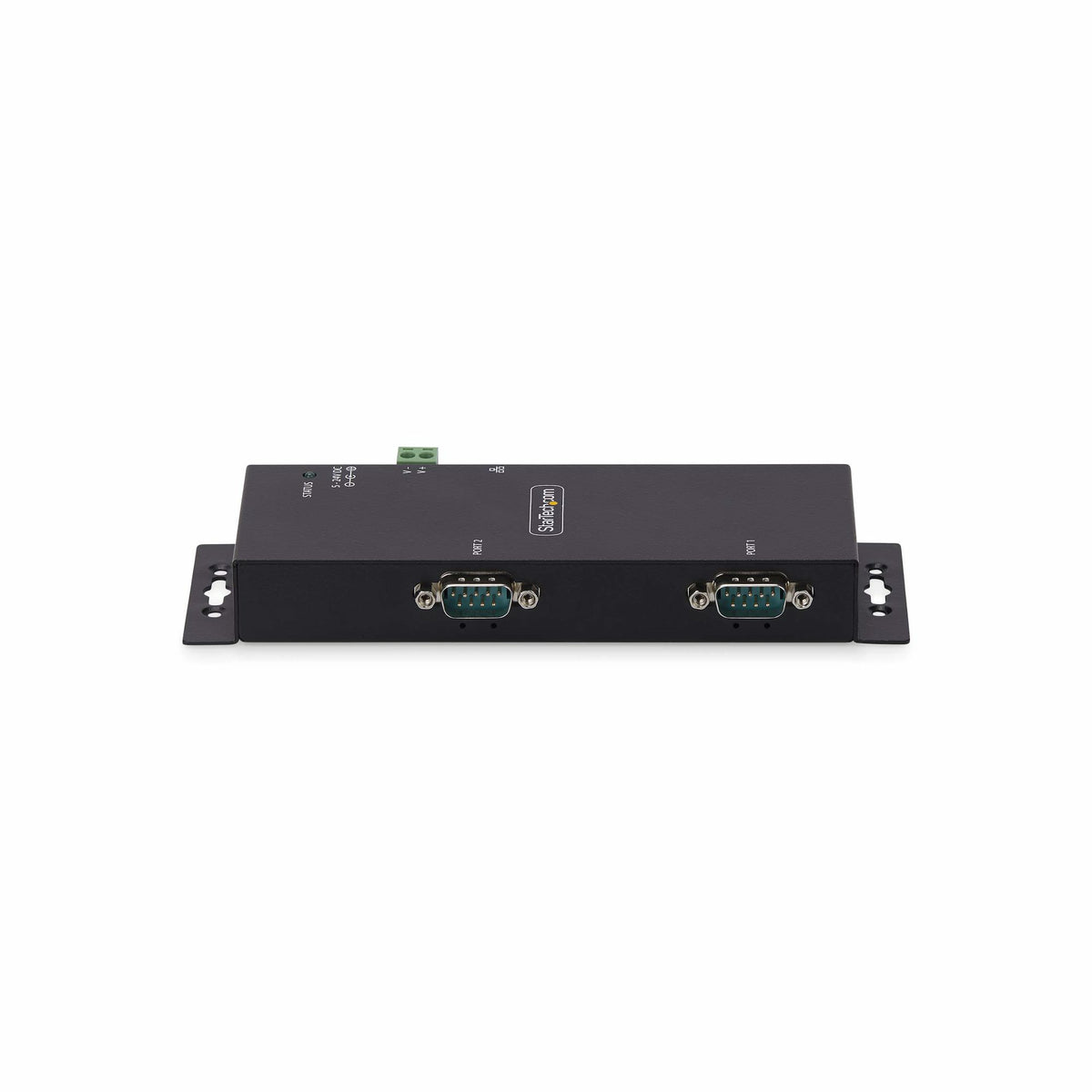

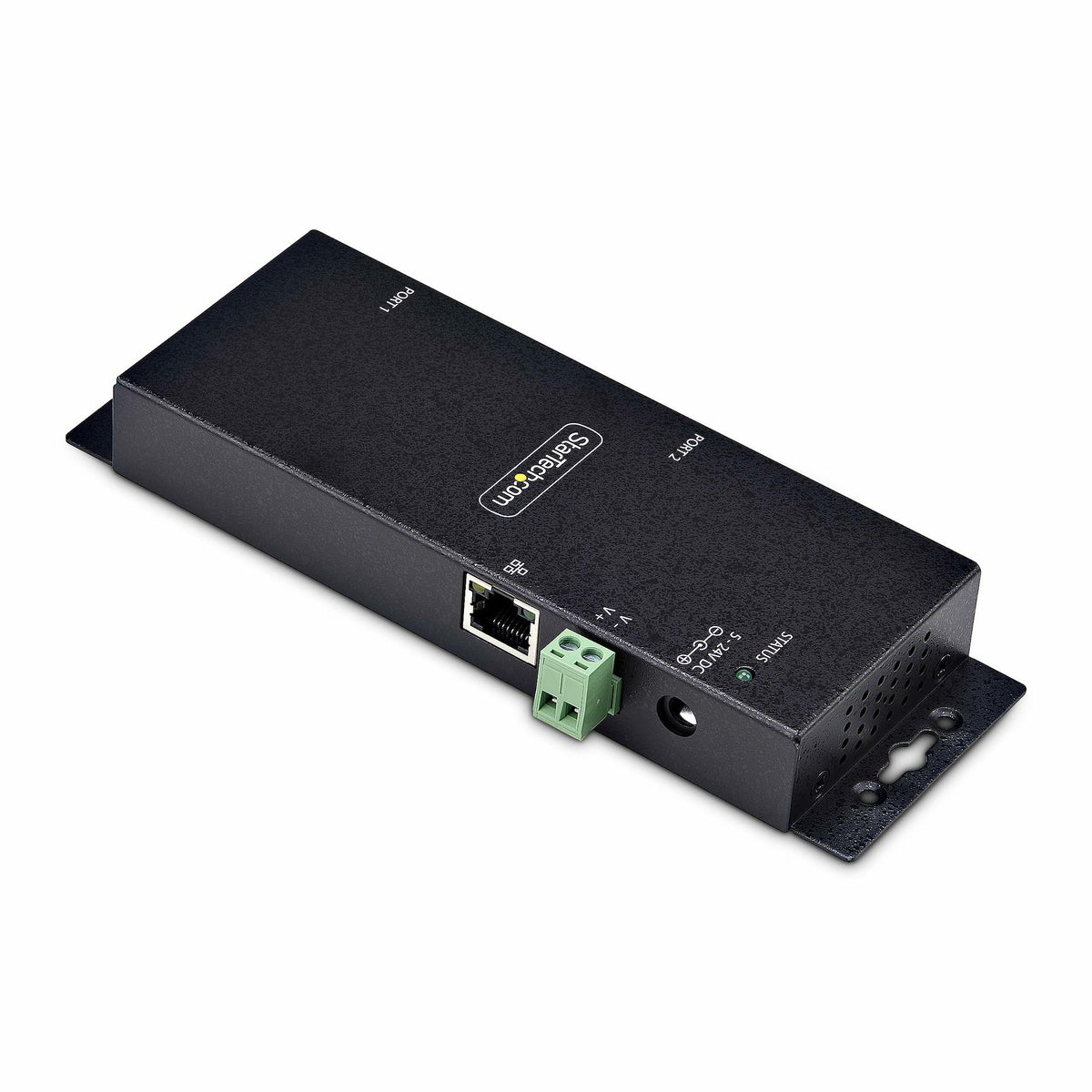

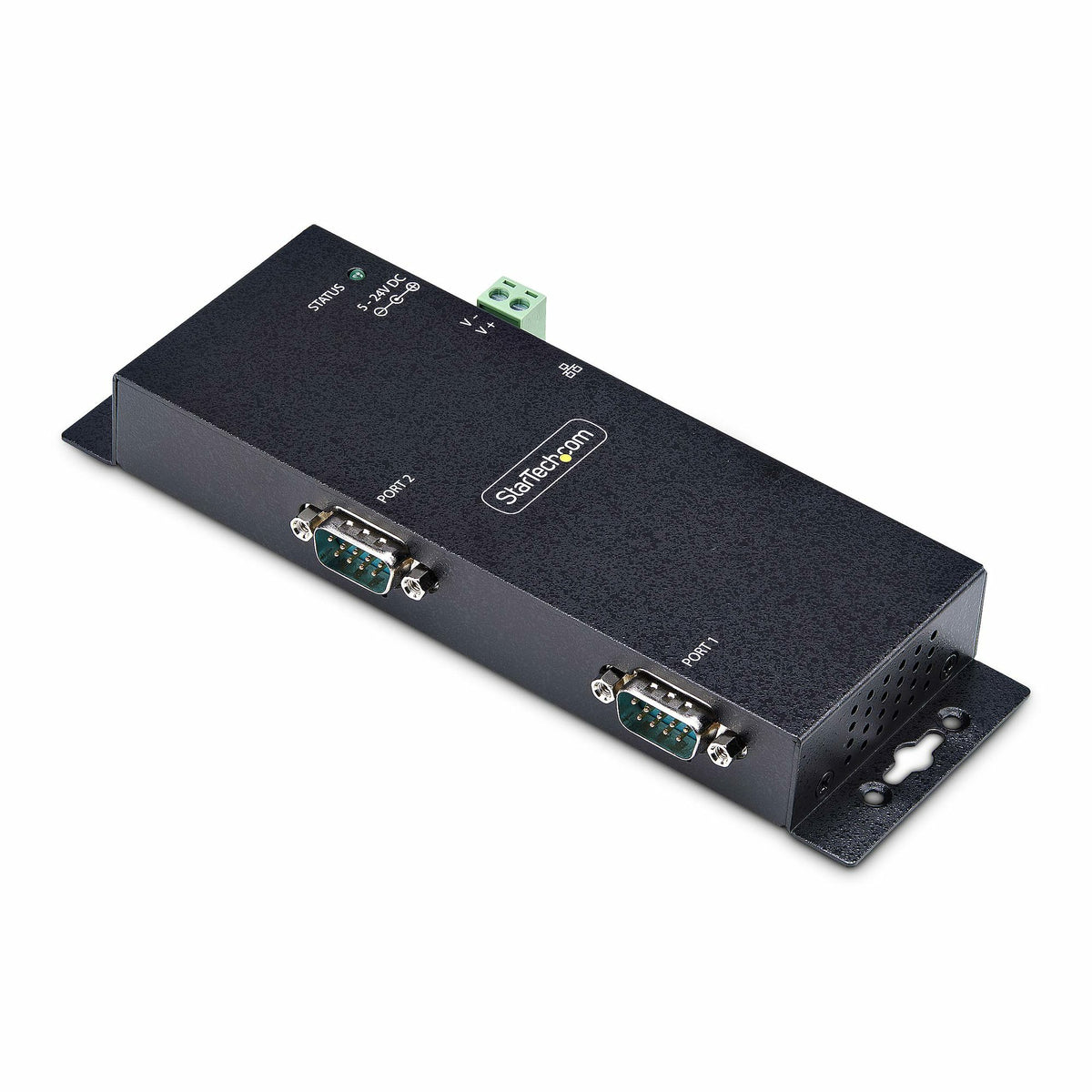

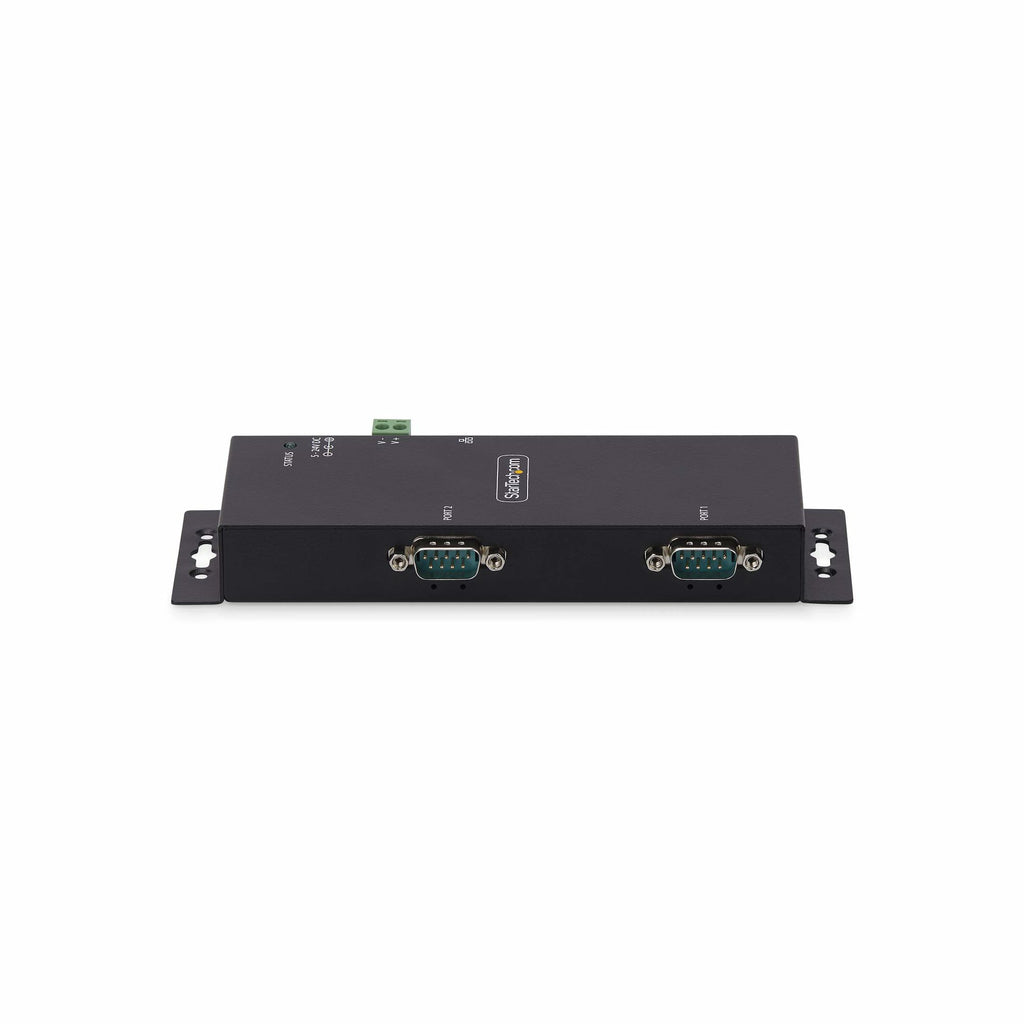

StarTech.com I23-SERIAL-ETHERNET converter

Optimized RS-232 connectivity for managing serial devices over IP

This 2-port serial-to-IP converter is an effective solution for remotely connecting and controlling a wide range of RS232 serial devices over an IP-based network.

Configuration and Management

The DB9 to Ethernet adapter family shares the same Windows virtual COM port software and web-based user interface (WebUI) for a unified experience. Users can use the Windows software to view and manage all device servers within a network and to configure virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can effectively manage their device server network, regardless of the operating system they use.

The product family includes the following options:

- 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)

- 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)

- 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)

- 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)

Flexible Installation and Robust Chassis

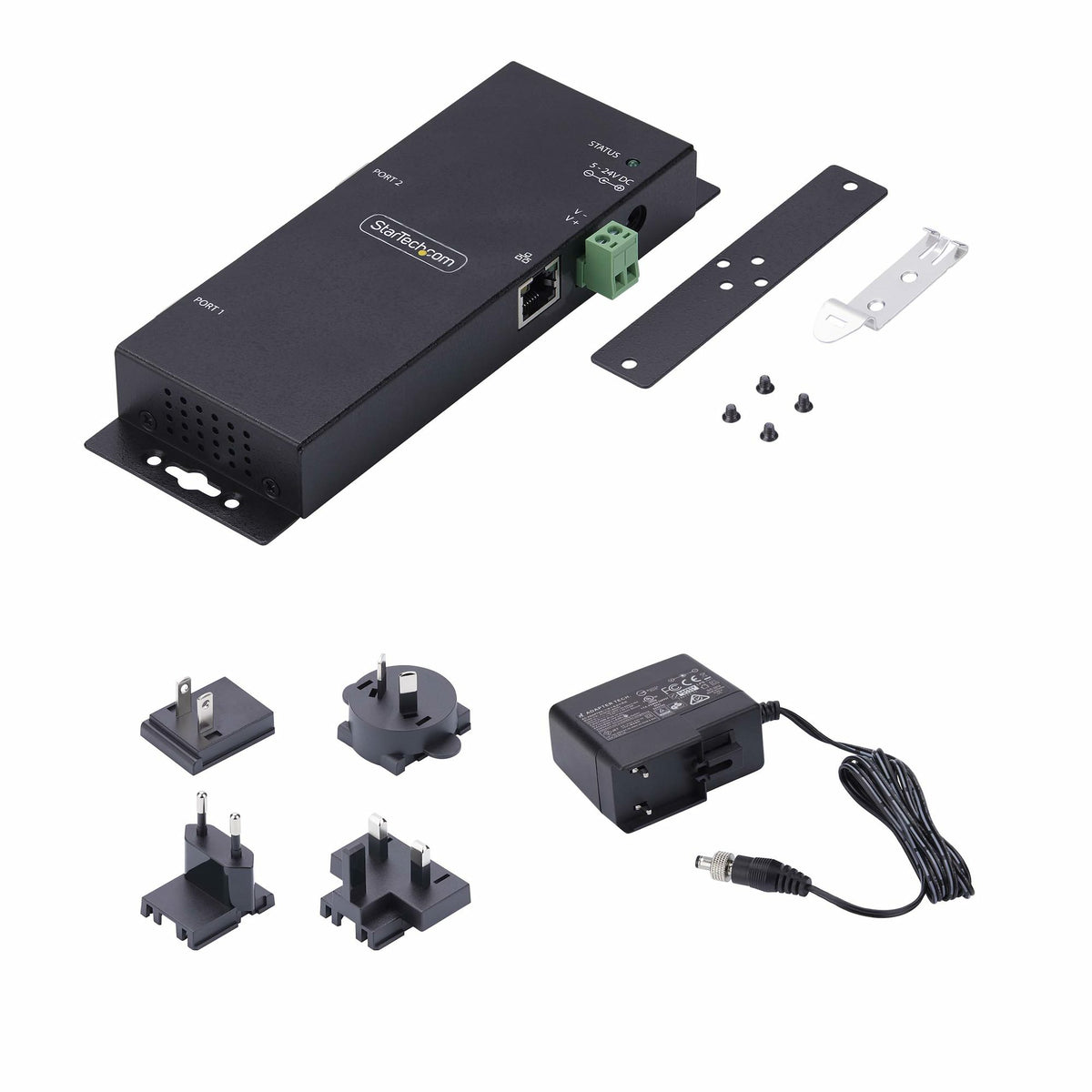

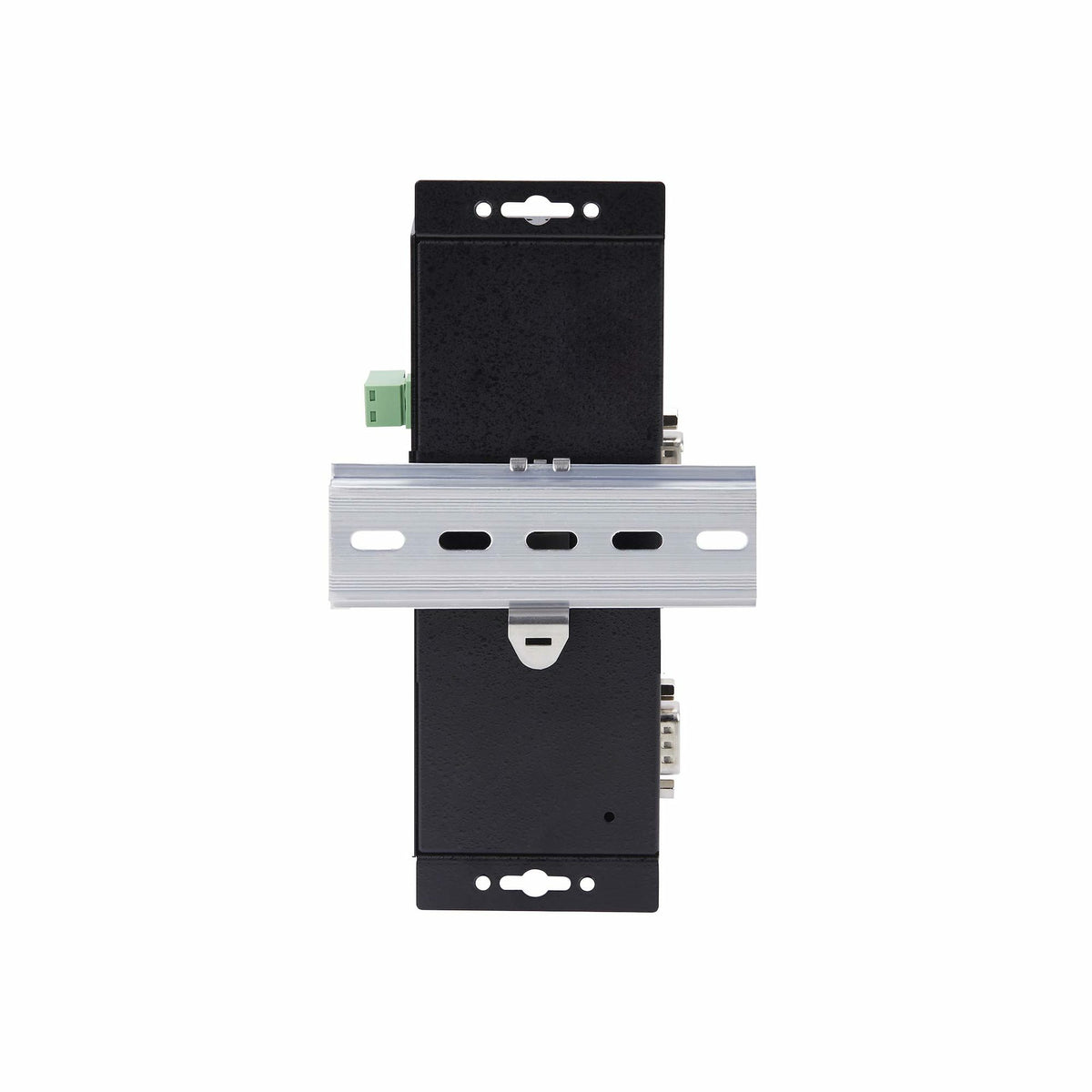

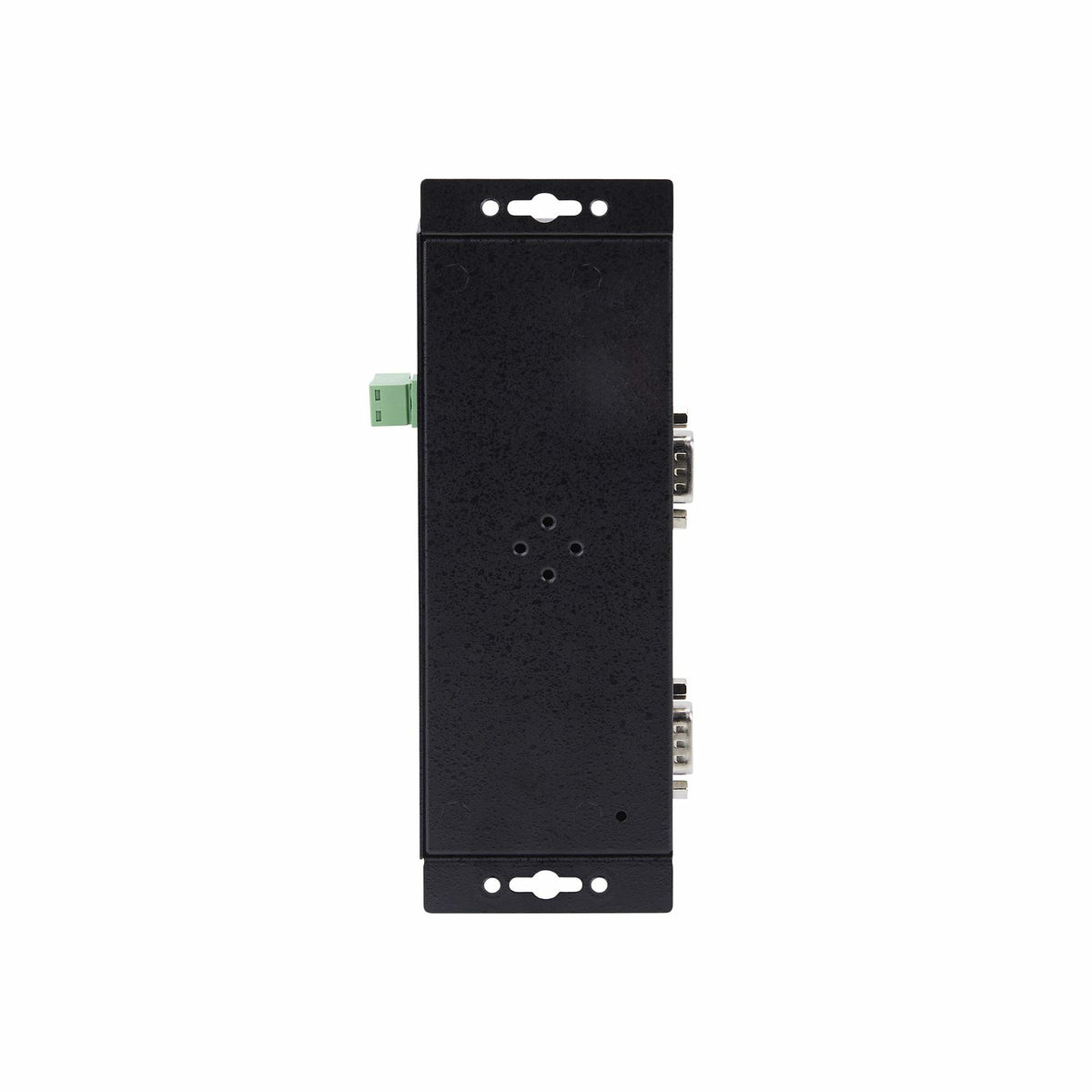

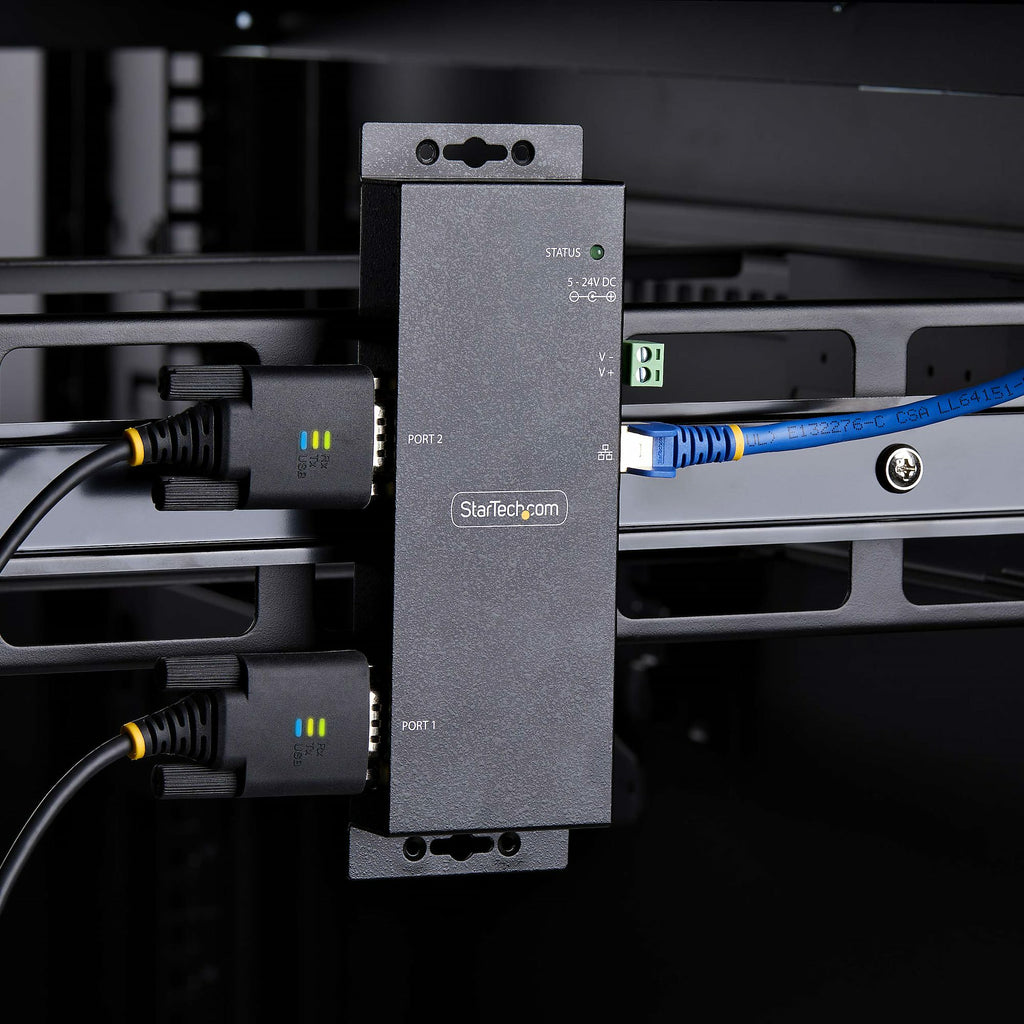

The two power options, DC jack and terminal block, provide flexibility and installation convenience. The converter is housed in an all-metal enclosure for increased durability in harsh environments. The DB9 over IP converter includes all the necessary hardware for wall and DIN-rail mounting. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions 178x59.4x23mm.

Ethernet and Power Options

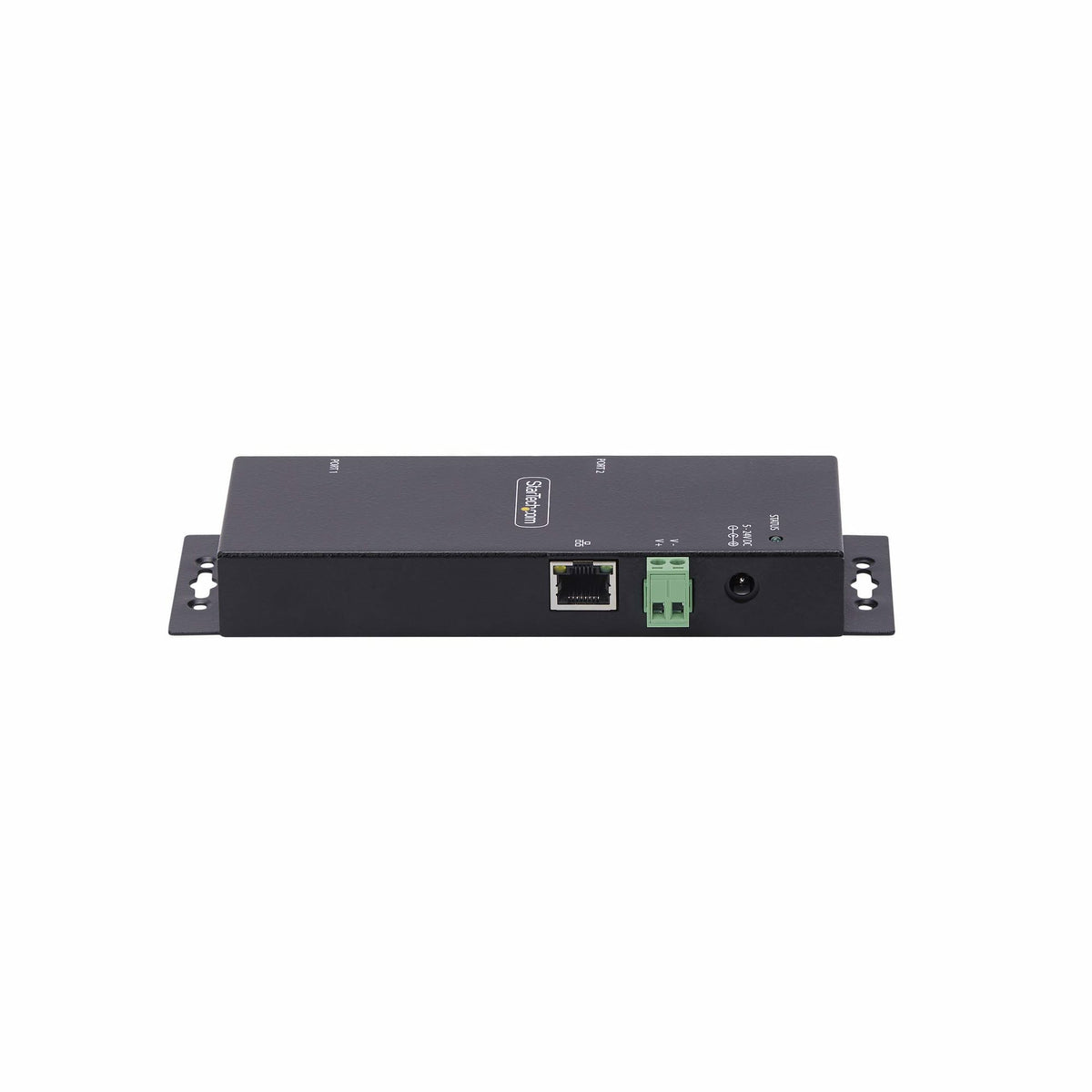

The TAA-compliant IP-to-serial converter features a single 10/100 Mbps RJ45 Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports level 4 ESD protection (15kV air/8kV contact), and can provide 5VDC through pin 9 if necessary.

StarTech Serial to Ethernet Adapter - 2-Port RS232 Serial Device LAN Server - Wall/DIN Rail

• DUAL SERIAL-TO-IP CONVERTER: Remotely connect RS232 serial devices over an IP-based network - Use for POS systems, sensors, CNC controllers, and PLCs - DB9 serial port supports up to 921.6Kbps - TAA
• UNIFIED ECOSYSTEM EXPERIENCE: Our device servers share software and web interface - Manage devices with a common interface - Windows software to configure virtual COM ports and manage network device servers
• VERSATILE CONFIGURATIONS: Supports TCP client/server mode to allow serial tunneling between two device servers - Export/import settings, custom naming/location, password protection, and updatable firmware
• ETHERNET AND POWER OPTIONS: Single 10/100 Mbps RJ45 port with auto-negotiation - Operates via Telnet (RFC2217)/UDP/TCP - Serial-to-LAN converter includes power adapter and supports 5V via pin 9 for serial devices
• ROBUST AND MOUNTABLE HOUSING: Metal housing ensures durability in harsh conditions - Supports level 4 ESD protection (15kV air/8kV contact) - Includes necessary hardware for wall and DIN-rail mounting - Dimensions 178x59.4x23mm
• SERIAL-TO-IP CONVERTER OPTIONS: Our device server family includes the following options: I13-SERIAL-ETHERNET (1 port), I13P-SERIAL-ETHERNET (1 port w/ PoE), I23-SERIAL-ETHERNET (2 ports), and I43-SERIAL-ETHERNET (4 ports)
