StarTech.com ICUSB232SM3 gender changer cable DB-9 USB 2.0 Blue
StarTech.com ICUSB232SM3 gender changer cable DB-9 USB 2.0 Blue
- Brand:
- StarTech.com
- Part number:
- ICUSB232SM3
- EAN:
- 0065030842440
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: StarTech.com Ltd., 45 Artisans Crescent, London, Ontario N5V 5E9, Canadá · www.startech.com
EU responsible person: StarTech.com Limited (entidad Europa), Celsiusweg 16, 5928 PR Venlo, Países Bajos. Tel. +31 (0)20 7006 073. Contacto: https://www.startech.com/en-eu/contact
Description
Add an RS232 serial port to your laptop or desktop computer via USB
The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect RS232 DB9 serial devices to your Mac® or PC laptop or desktop computer through an available USB port, as if the computer offered an onboard DB9M connector.
Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, StarTech.com's ICUSB232SM3 incorporates a converter chip at the USB end. Conversion at the USB source overcomes the 15ft (4.5m) technical limit of USB cables, allowing for a much greater DB-9 serial cable extension (more than 50ft/15m is possible depending on the application) if needed.
Simple to install and use, this USB to serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
StarTech 3ft USB to Serial Cable - 1 Port DB9 M/M - USB to RS232 Adapter - USB to DB9 Serial Adapter
- ADD LEGACY FUNCTIONALITY: The USB to serial (DB9) adapter lets you connect RS232 DB9 serial devices to your device through an available USB port, as if the computer offered a DB9M connector

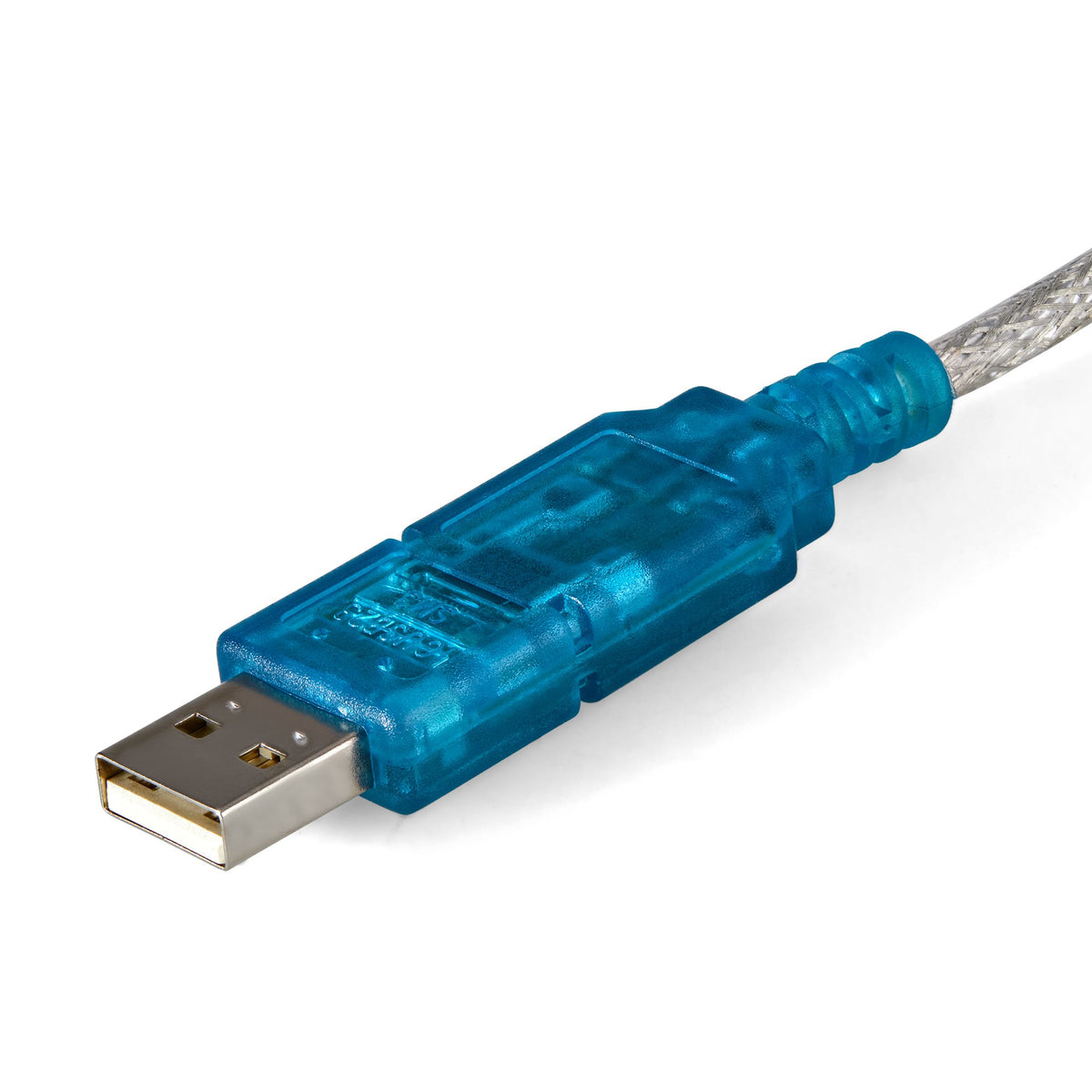

- UNIQUE CONVERTER CHIP: Unlike typical USB to serial cables where the conversion takes place at the DB9 end, this USB to RS232 serial adapter incorporates a converter chip at the USB end
- MAXIMUM COMPATIBILITY: Easy to install and use, this USB serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals
- OVERCOME DISTANCE LIMITATIONS: Conversion at the USB source overcomes the 15ft (4.6m) technical limit of USB cables - This USB to RS232 adapter cable allows for a much greater DB-9 serial cable extension
- TECHNICAL SPECIFICATIONS: 3ft (91cm) - Prolific PL2303GC Chipset - Max Baud Rate: 921.6 Kbps - 192 Byte FIFO
Specifications
| Ports & interfaces | |
|---|---|
| Connector 1 | DB-9 |
| Connector 2 | USB 2.0 A |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable length | 0.9 m |
| Performance | |
| Product color | Blue, Transparent |
| Housing material | Plastic |
| Chipset | Prolific - PL2303HXD |
| Data transfer rate | 921.6 Kbit/s |
| FIFO | 192 B |
| Compatible operating systems | Windows CE 4.2, 5.2, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux 2.4.x+ |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Certificates | |
| RoHS compliance | Yes |
| Certification | CE, FCC |
| Weight & dimensions | |
| Width | 35 mm |
| Depth | 914 mm |
| Height | 15 mm |
| Weight | 56 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 201 mm |
| Package depth | 110 mm |
| Package height | 33 mm |
| Package weight | 70 g |
| Logistics data | |
| Quantity per master (outer) case | 100 pc(s) |
| Master (outer) case width | 583 mm |
| Master (outer) case length | 367 mm |
| Master (outer) case height | 303 mm |
