StarTech.com IMC1GSFP 1000 Mbit/s Multimode, Single-mode Media Converter Black
StarTech.com IMC1GSFP 1000 Mbit/s Multimode, Single-mode Media Converter Black
- Brand:
- StarTech.com
- Part number:
- IMC1GSFP
- EAN:
- 0065030889612
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: StarTech.com Ltd., 45 Artisans Crescent, London, Ontario N5V 5E9, Canadá · www.startech.com
EU responsible person: StarTech.com Limited (entidad Europa), Celsiusweg 16, 5928 PR Venlo, Países Bajos. Tel. +31 (0)20 7006 073. Contacto: https://www.startech.com/en-eu/contact
Description
Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+ hrs @ 50°C | 12V to 56VDC | Works with 100 Mbps SFP

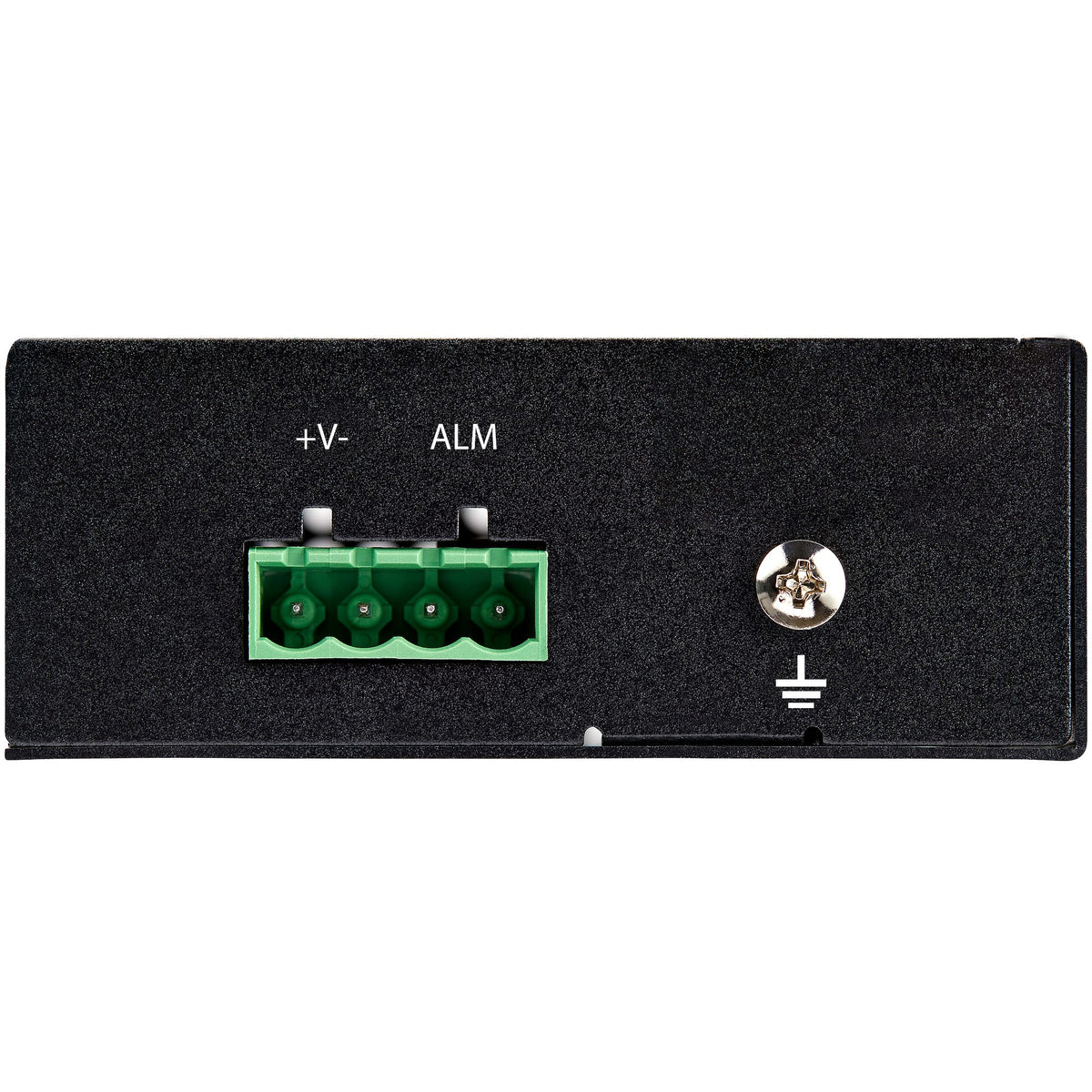

Industrial media converter that converts fiber optic to copper at a network connection point. A flexible solution that covers different requirements, this media converter includes an open SFP slot for any standard Gigabit SFP used for incoming fiber optic connections, and is easily deployed in various applications or fiber optic cable types. Supports power via terminal block or coaxial power connectors, with a barrel jack adapter, allowing the product to be hardwired or used with an external power source (not included); no professional installation is required. DC power between 12V and 56V is possible for solar power, automotive, train, and other applications, and a minimum power input of 12V is required. Includes hardware for wall or DIN rail mounting.
Essential Applications IP-30 rated housing design with MTBF >500,000 hours (Telcordia/Bellcore) at 50°C, and an operating temperature range that includes values between -40°C to 75°C, for durability; complies with vibration, shock, and free-fall standards: - Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free fall: EN 60068-2-32
StarTech Industrial Fiber Media Converter, Multi or Single-Mode to 1Gb Ethernet - SFP to RJ45 - Converter - IP30 (IMC1GSFP)
- INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Converts a 1Gbps fiber signal to RJ45. Resistant to operating temperatures between -40°C and 75°C. 12V to 56V DC power
- THE STARTECH.COM ADVANTAGE: StarTech.com has been the choice of IT professionals for over 30 years. 2-year StarTech.com warranty with 24/5 technical support
- OPEN SFP SLOT: Compatible with any standard SFP, and can also be used for multi or single-mode fiber connections. Easy deployment in fiber optic cable applications
- HEAVY-DUTY DESIGN: Industrial Gigabit network media converter, with MTBF of 500,000+ hours at 50°C / Rated for vibration, shock, and free fall / Rugged IP-30 aluminum housing
- TECHNICAL SPECIFICATIONS: 10/100/1000 Mbps / DC (12V to 56V) / Single and Multimode / 16K Jumbo Frames / LFP / IP-30 Housing / DIN/Wall / Redundant power via terminal block or wall adapter
Specifications
| Connection | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3x |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
| Supported cable types | Cat6 |
| Performance | |
| Fiber mode structure | Multi-mode, Single-mode |
| Mean time between failures (MTBF) | 569265 h |
| Features | |
| Internal | No |
| LED indicators | Yes |
| Product color | Black |
| Housing material | Aluminum |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports quantity | 1 |
| Fiber optic ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Input voltage | 12 - 56 V |
| Power over Ethernet (PoE) | No |
| Plug type | Type N |
| Weight & dimensions | |
| Width | 81.5 mm |
| Depth | 104 mm |
| Height | 32 mm |
| Weight | 144 g |
| Operational conditions | |
| Operating temperature range | -40 - 75 °C |
| Storage temperature range | -40 - 85 °C |
| Operating relative humidity | 5 - 95% |
| Packaging content | |
| User guide | Yes |
| Packaging data | |
| Package width | 168 mm |
| Package depth | 215 mm |
| Package height | 67 mm |
| Package weight | 386 g |
| Regulatory approvals | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 366 mm |
| Master (outer) case length | 368 mm |
| Master (outer) case height | 255 mm |
| Quantity per master (outer) case | 10 pc(s) |
