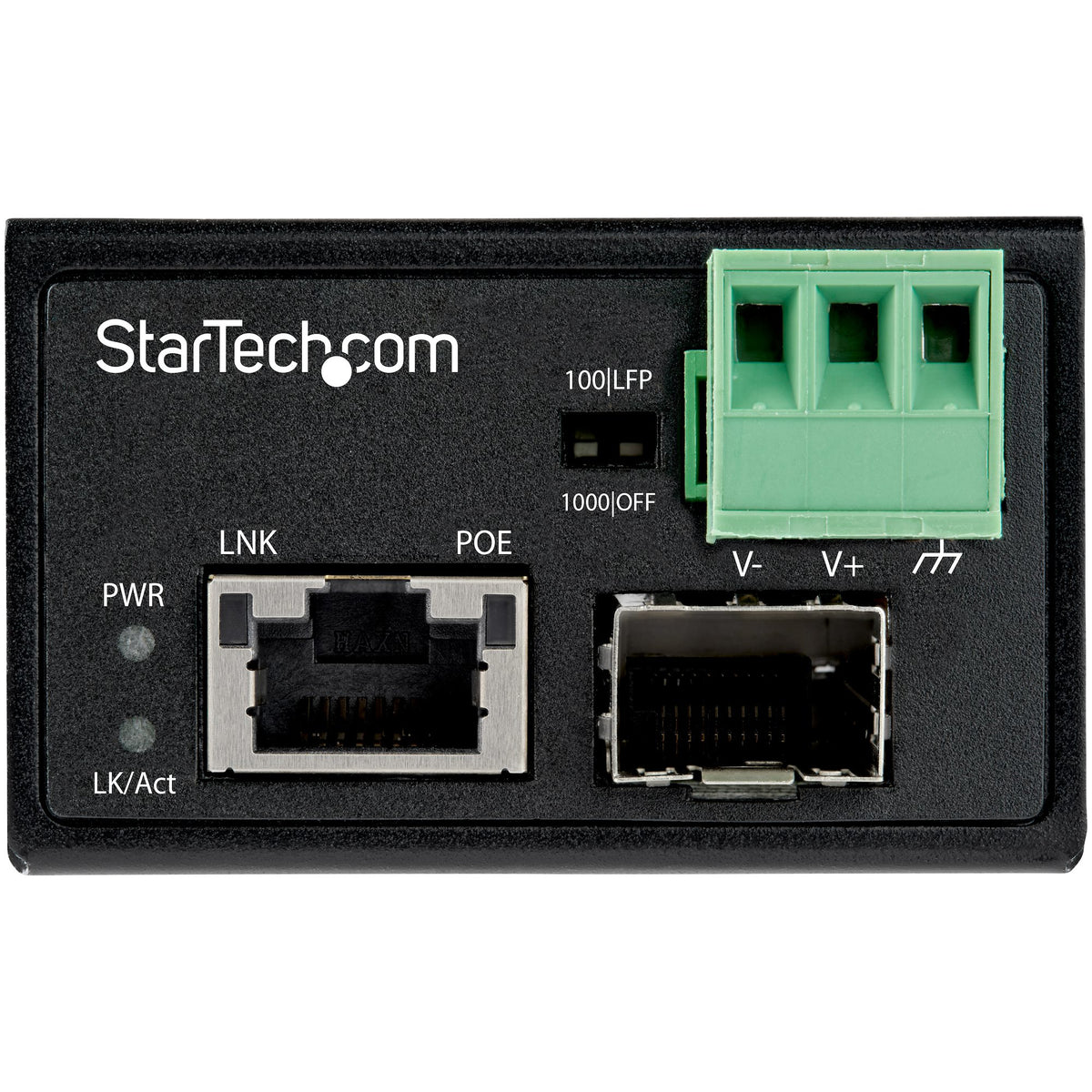

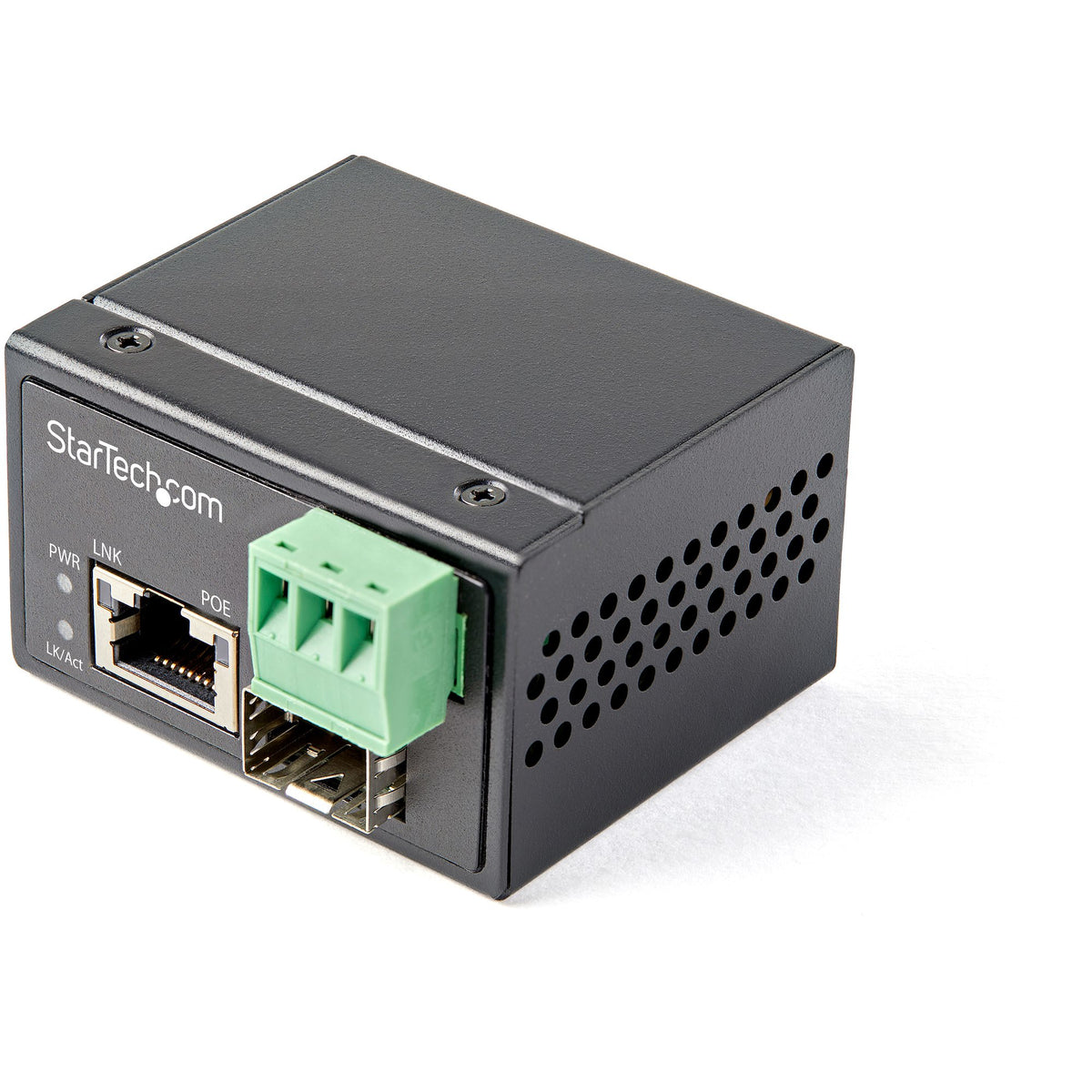

StarTech.com IMC1GSFP30W media converter 1000 Mbit/s Multi-mode

Industrial PoE Media Converter | 10/100/1000 Mbps | 30 Watts | Open SFP | DIN Rail Mount

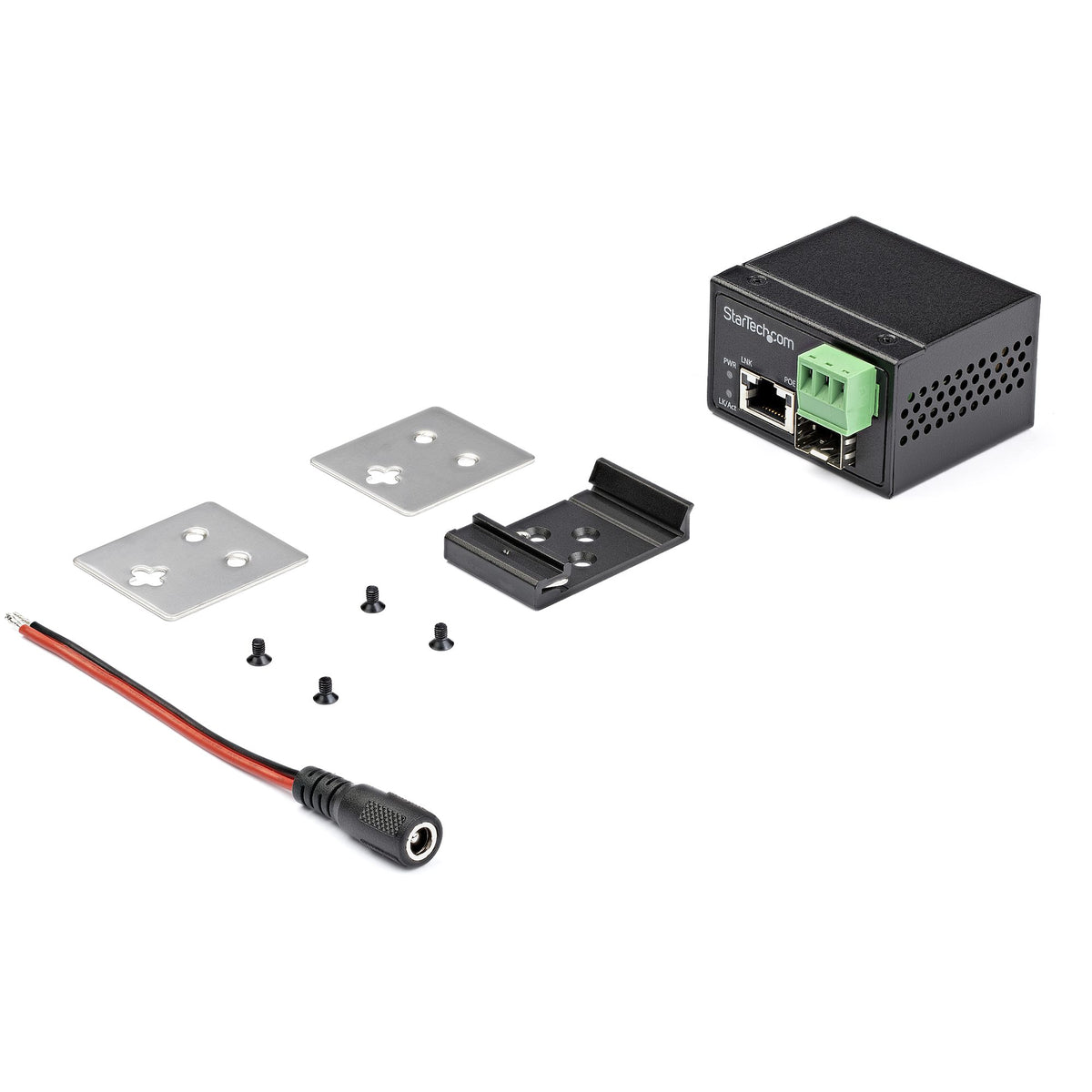

This fiber-optic PoE SFP media converter offers an easy, cost-effective way to extend your network and power your devices in remote locations via fiber optics, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector. It converts a fiber-optic network link to a PoE-enabled RJ45 copper Ethernet connection to provide data and power to remote PoE devices, such as security cameras, sensors, wireless devices, lights, and many others. The converter is a powerful networking solution for academic campuses, warehouses, factories, or other environments that require PoE and connectivity over long distances. Designed for small spaces and harsh environments, this mini media converter measures 29cm² and weighs approximately 80 grams, so it can be installed almost anywhere it is needed, and it has been designed to operate in environments with wide temperature fluctuations. The converter also includes a set of DIN mounting rails for additional installation options. OPERATING TEMPERATURE STORAGE TEMPERATURE -40°C to 75°C -40°C to 85°C -40°F to 167°F -40°F to 185°F Up to 30W of power for connected devices 30W available allows for a wide range of powered devices, such as: - Surveillance cameras
- Wireless access points
- Locks and sensors
- Lights
Open SFP slot to leverage your current infrastructure The Gigabit fiber media converter offers a cost-effective way to connect remote devices over a fiber-optic link. It includes an open SFP slot that allows you to choose the MSA-compliant Gigabit SFP best suited to your fiber connection mode (single-mode / multi-mode) and distance requirements. Industrial IoT ("Internet of Things") and connectivity beyond the data center Fully compatible with 10/100/1000 Base-T Ethernet networks, this fiber media converter supports auto-negotiation, enabling compatibility between devices and networks with different speeds and a Gigabit fiber network. It offers versatile connectivity with existing networks and devices, maximizing the use and performance of legacy equipment.

StarTech Industrial 30W PoE+ Fiber to Ethernet Media Converter - IP30 Fiber to RJ45 SFP Converter (IMC1GSFP30W)

• COMPACT SIZE + PoE: Small form factor size with PoE. Extends and converts fiber optic to RJ-45. PSE power delivery up to 30W to PoE/PoE+ PD devices
• TECHNICAL SPECIFICATIONS: 1Gbps / 1x SFP (MSA) / 1x RJ45 / 48V to 56V DC / IEEE 802.3af / IEEE 802.3at (30W) / 10/100/1000 Mbps / LFP / 16K Jumbo Frames / For DIN rail or wall mounting
• RUGGED DESIGN: 500,000+ hour MTBF at 50°C / Vibration, shock, and free-fall resistant / IP-30 Aluminum housing / Temperature resistant between -40°C and 75°C / 2-year warranty
• OPEN SFP SLOT: Compatible with any MSA SFP, for use in multi-mode or single-mode fiber optic input connections. Easy implementation across various applications or fiber cable types
• POWER INPUT FLEXIBILITY: Allows input via terminal block (48 to 56V DC) or standard Type-N wall adapter (48 to 56V DC) (not included)
• THE STARTECH.COM ADVANTAGE: StarTech.com has been the choice of IT professionals for over 30 years / 2-year warranty with free 24/5 technical support
