StarTech.com SMLCSC-OS2-50M Fiber Optic and InfiniBand Cable Yellow

Improve the throughput capacity of CWDM applications across an OS2 fiber network

The LC to SC OS2 single-mode duplex fiber optic patch cable facilitates connectivity in 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across a wide range of 1260-1625 nm wavelengths, improving channel isolation for optimal signal strength over long distances.

Compatibility

This 9/125µm single-mode fiber cable supports laser-optimized sources from 1260-1625 nm and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Designed for Optimal Performance

Precision-manufactured ceramic ferrules ensure exact fiber alignment for an insertion loss of less than 0.3 dB. The Ultra Physical Contact (UPC) polished LC to SC fiber ends vastly improve return loss characteristics compared to older PC polishing techniques. The bend-insensitive fiber core is surrounded by a layer of low-refractive-index material. This material reduces the amount of light that can escape from the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cable is designed for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.

LSZH Cable Jacket

Encased in a Low Smoke Zero Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits few fumes and toxic gases when exposed to extreme heat or in the event of a fire. This allows for safer cable installations in areas with poor ventilation, including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building code compliance must be considered.

Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report to ensure 100% compatibility and reliability.

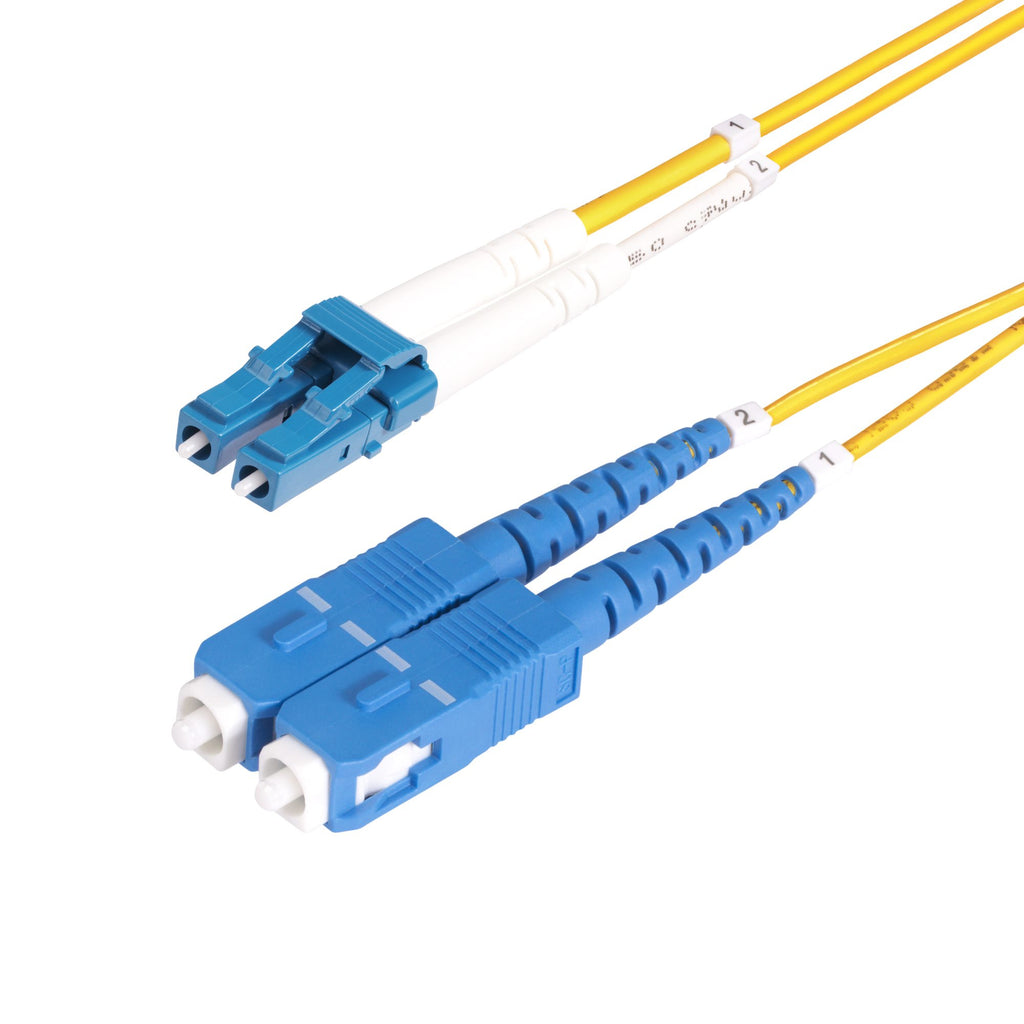

StarTech LC to SC (UPC) Fiber Optic Cable - OS2 Single-Mode 9/125µm 100G LSZH - 50m Patch Cable

• OS2 FIBER CABLE: Immune to electromagnetic interference and optimized for 100Gbps networks - Coarse Wavelength Division Multiplexing (CWDM) allows for expanded 1260-1625nm wavelength support
• QUALITY CONSTRUCTION: Improved return loss over PC polishing - Numbered connectors to indicate polarity - Bend-insensitive fiber core - Aramid-reinforced jacket for a 10mm loaded bend radius
• SAFETY AND RELIABILITY: Individually tested - Test report included - LSZH jacket emits few toxic fumes if burned - Safe for enclosed spaces - Attenuation value below 0.35 dB/km exceeds industry standards
• COMPATIBILITY: The cable supports 100G networks - Backward compatible with OS1 - High resistance to micro-bends facilitates tight bends in complex installations - Ideal for connecting between servers/switches and data center equipment
• SPECIFICATIONS: 50 meters - OS2 single-mode - LC/SC (UPC) duplex - 100Gbps - 9/125µm - 1260-1625nm laser-optimized - Insertion loss: ≤0.3dB - Return loss: ≥55dB - Cable outside diameter: 2mm - Bend radius: 10mm
