StarTech.com SV231HU34K6 4-Port Rackmount KVM Switch
StarTech.com SV231HU34K6 4-Port Rackmount KVM Switch
- Brand:
- StarTech.com
- Part number:
- SV231HU34K6
- EAN:
- 0065030882002
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: StarTech.com Ltd., 45 Artisans Crescent, London, Ontario N5V 5E9, Canadá · www.startech.com
EU responsible person: StarTech.com Limited (entidad Europa), Celsiusweg 16, 5928 PR Venlo, Países Bajos. Tel. +31 (0)20 7006 073. Contacto: https://www.startech.com/en-eu/contact
Description
KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Analog and Digital Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to two connected computers.
4K 60Hz Image Quality and Full Audio Support
The HDMI KVM switch supports resolutions up to 4K at 60Hz. It supports one large monitor at full 4K resolution. It includes HDCP and EDID signal emulation, so monitors are always synchronized for faster switching, and desktop configuration settings are maintained to prevent workflow interruptions.
With support for digital audio (with compatible displays and sources) and independent 3.5mm stereo audio, the HDMI 2.0 KVM switch offers full audio support.
Integrated USB Hub
The integrated USB 3.0 hub allows you to share two additional peripherals (in addition to your keyboard and mouse) between connected computers, just as if they were connected directly to your host computer, avoiding the cost of purchasing duplicate devices such as printers and scanners.
Windows, Mac, and Linux Compatible
In addition to Windows support, this HDMI KVM switch is also compatible with Mac and Linux operating systems.
Easy to Use

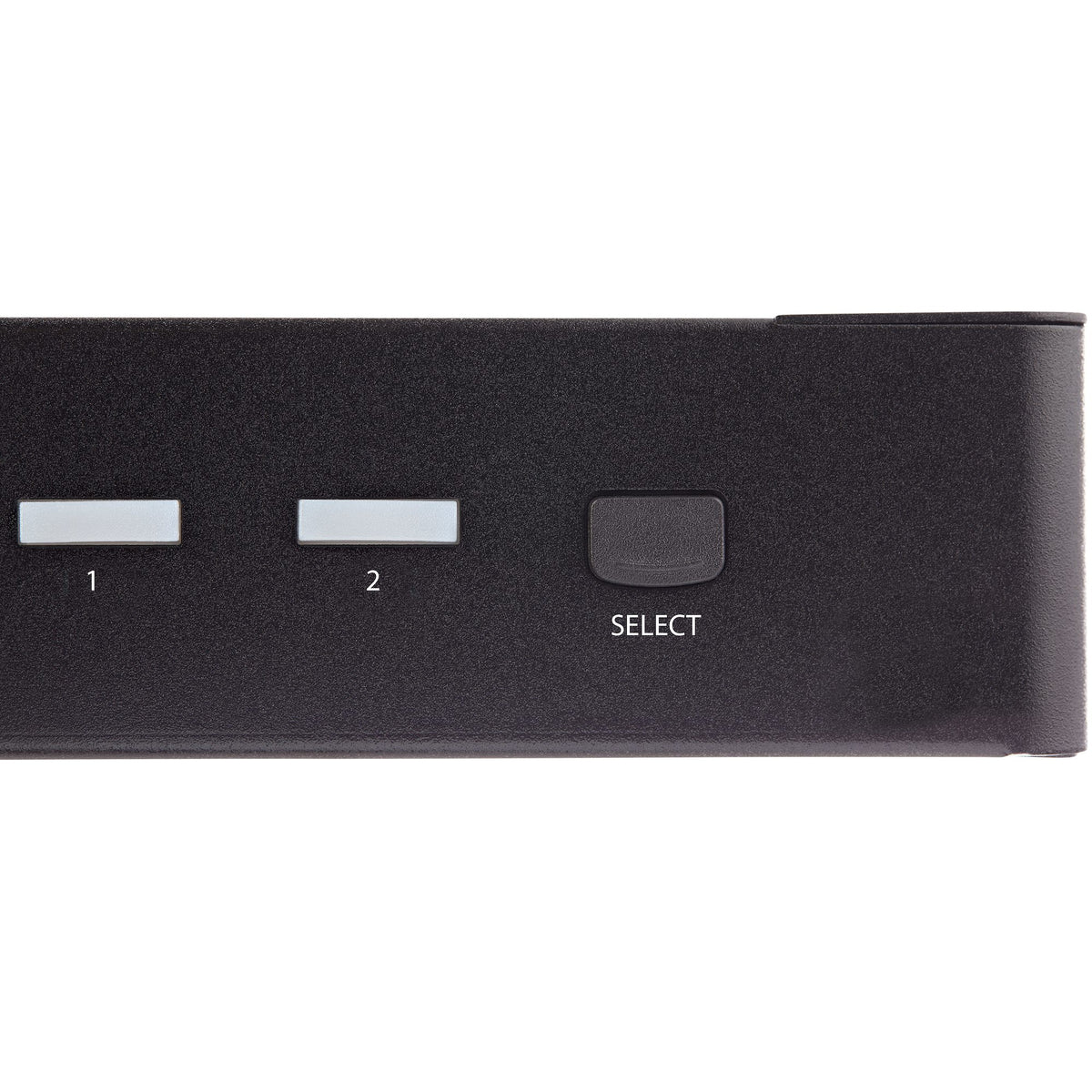

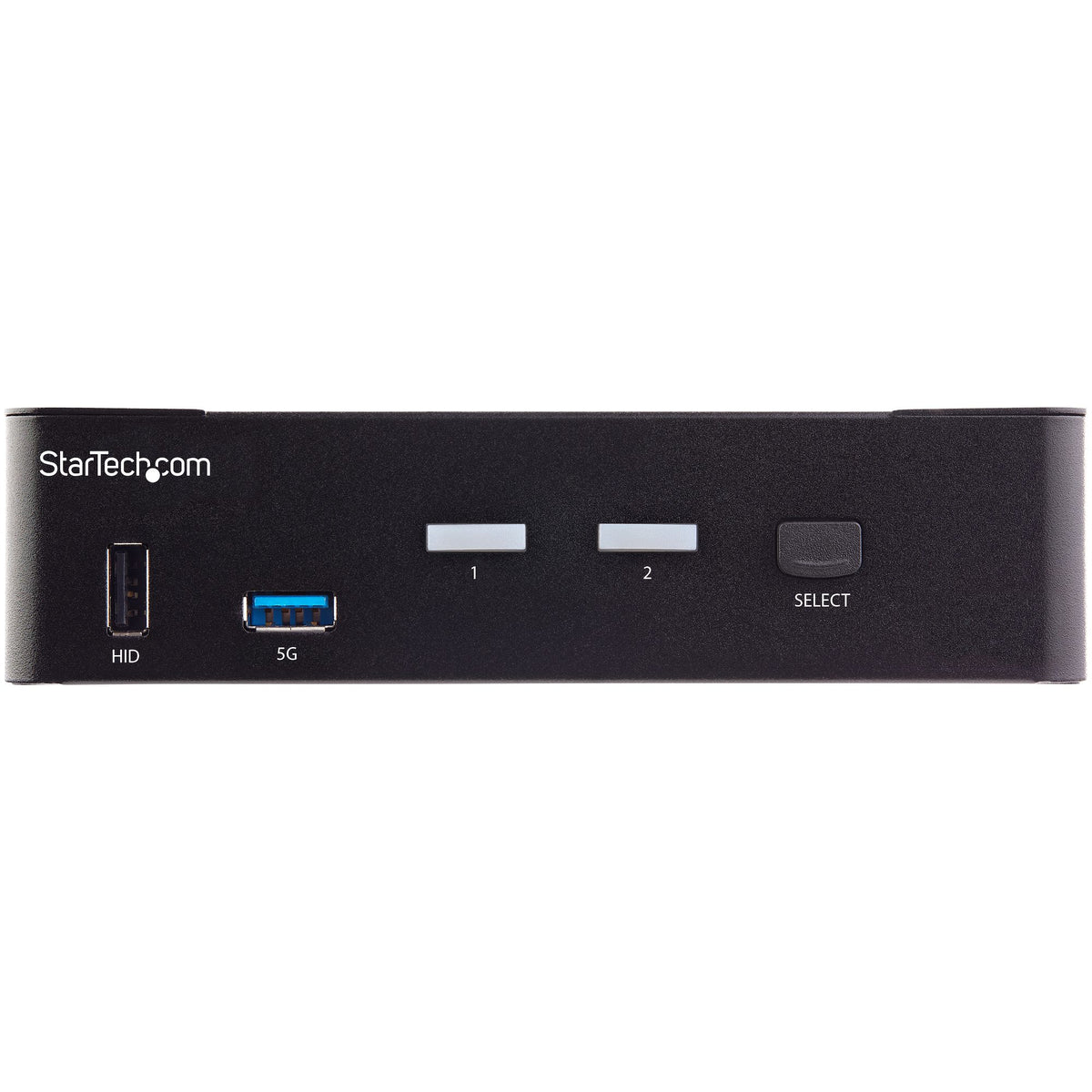

Front-panel pushbuttons make it easy to switch between systems and activate the auto-scan function. Hotkey functionality makes accessing the system quick, while a beep confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products, allowing you to access your systems more efficiently without the extra cost or clutter of additional keyboards, mice, and monitors.
StarTech 2-Port HDMI 2.0 4K KVM Switch for 1 Monitor - 4K 60Hz Ultra HD HDR Video - 2-Port USB 3.0 Hub and 4-Port USB 2.0 Audio HotKey - TAA (SV231HU34K6)
- 4K 60Hz UHD: The 2-port HDMI KVM switch supports a maximum resolution of 4K at 60Hz on one monitor, for applications such as CAD/CAM, video editing, and content creation; works with major brands such as Dell, HP, and Lenovo
- FAST SWITCHING: Includes HDCP and EDID signal emulation, so monitors are always synchronized for faster switching; desktop configuration settings are also maintained to prevent workflow interruptions when switching between up to 2 computers
- TECHNICAL SPECIFICATIONS: HDMI 2.0, 2 ports / 3840 x 2160 / HDCP 2.2 / HDR10 support / USB 3.0 Hub (5Gbps), 2 ports / 4x USB HID ports / Hotkeys, pushbuttons / Analog + digital 7.1 stereo audio / EDID and HDCP signal emulation / OS independent
- EASY TO USE: The KVM switch, with a compact design made of a durable steel housing, includes easy-access front-facing buttons and an integrated USB hub (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers
Specifications
| Ports and Interfaces | |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Number of HDMI ports | 3 |
| HDMI version | 2.0 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports | 2 |
| Console ports | 3.5 mm headphones, HDMI, USB A |
| Quantity of console USB ports | 4 |
| USB hub | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Audio connection | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| HDCP | Yes |
| Daisy chaining | No |
| Number of users | 1 user(s) |
| Integrated circuit | Genesys Logic - GL3523 |
| Audio channels | 7.1 |
| Design | |
| Rack mounting | Yes |
| Product color | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push buttons | Yes |
| Hotkey control | Yes |
| Mean time between failures (MTBF) | 143000 h |
| Certification | CE, RoHS, FCC |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power control | |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption | 36 W |
| External power adapter | Yes |
| Plug type | Type M |
| Compatible power plug types | EU, JP, UK, US |
| Environmental conditions | |
| Operating temperature range | 0 - 40 °C |
| Storage temperature range | -10 - 60 °C |
| Operating relative humidity range | 0 - 80% |
| Weight and dimensions | |
| Width | 100 mm |
| Depth | 160 mm |
| Height | 40 mm |
| Weight | 640 g |
| Packaging | |
| Package width | 186 mm |
| Package depth | 242 mm |
| Package height | 93 mm |
| Package weight | 147 g |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 408 mm |
| Master (outer) case length | 271 mm |
| Master (outer) case height | 309 mm |
| Products per master (outer) case | 6 piece(s) |
