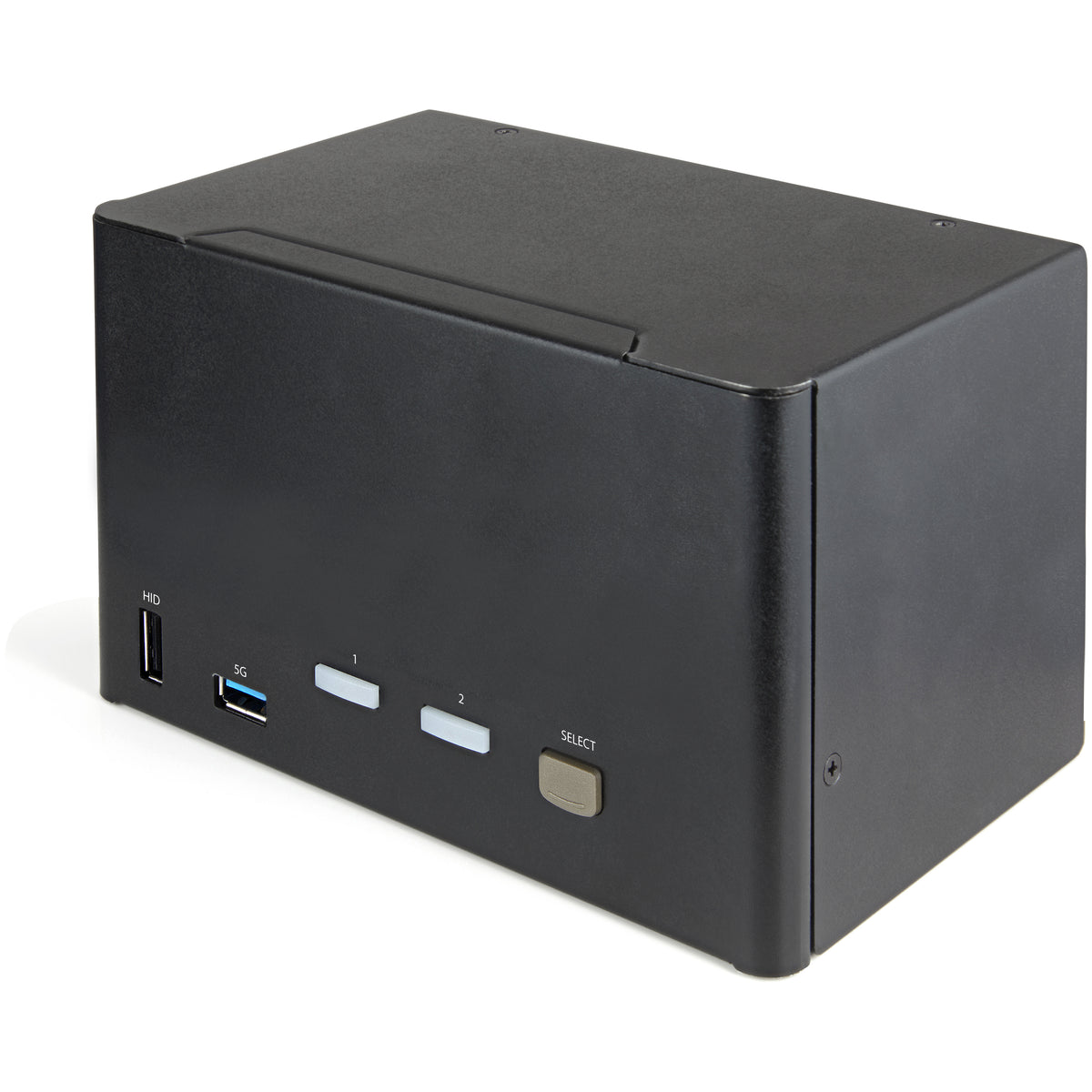

StarTech.com SV231QDPU34K KVM Switch Black
StarTech.com SV231QDPU34K KVM Switch Black
- Brand:
- StarTech.com
- Part number:
- SV231QDPU34K
- EAN:
- 0065030881777
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: StarTech.com Ltd., 45 Artisans Crescent, London, Ontario N5V 5E9, Canadá · www.startech.com
EU responsible person: StarTech.com Limited (entidad Europa), Celsiusweg 16, 5928 PR Venlo, Países Bajos. Tel. +31 (0)20 7006 073. Contacto: https://www.startech.com/en-eu/contact
Description
KVM with USB | 4 Monitors | TAA | USB 3.0 Hub | DisplayPort 1.2 | Digital and Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capability with control of up to two connected computers. 4K 60Hz image quality and full audio support The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive four large monitors at full 4K resolution. It includes USB emulation for faster switching speeds and to avoid workflow interruptions. Supporting digital audio (with compatible displays and sources) and independent 3.5mm stereo audio, the DisplayPort 1.2 KVM switch offers full audio compatibility. Integrated USB hub The integrated USB 3.0 hub allows you to share two additional peripherals (in addition to your keyboard and mouse) between the connected computers, as if they were connected directly to your host computer, avoiding the cost of purchasing duplicate devices, such as printers and scanners. Compatible with Windows, Mac, and Linux In addition to Windows compatibility, this DP KVM switch is also compatible with Mac and Linux operating systems. Easy to use The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. Hotkey functionality makes accessing your systems fast, while a beep confirms the switch. StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products that help you access your systems more efficiently, without the extra expense and clutter of extra keyboards, mice, and monitors.
StarTech 2-Port DisplayPort 1.2 KVM Switch for 4 Monitors - DP HDR UHD 4K at 60Hz - 2-Port USB 3.0 (5Gbps) Hub - 4 Port USB 2.0 Audio Hotkeys (SV231QDPU34K)
- IMPROVED EFFICIENCY: Switch between two computers, with four monitors, using DisplayPort and USB video, with a single keyboard, monitor, and mouse, with hotkeys or buttons that allow you to switch between active computers
- FOUR 4K 60Hz UHD DISPLAYS: The DisplayPort quad-monitor KVM switch supports a maximum resolution of 4K at 60Hz on four monitors, for applications such as CAD/CAM, video editing, and content creation / Works with major brands, such as Dell, HP, and Lenovo
- TECHNICAL SPECIFICATIONS: 2-port KVM switch / Quad-display / DisplayPort 1.2 / 3840 x 2160 60Hz / HDCP 2.2 / HDR support / 2-port USB 3.0 hub / 4x USB HID / Pushbutton and hotkey / OS independent / Analog + digital stereo audio / DP + USB console
- EASY TO USE: The KVM switch, with a compact design and manufactured in a durable steel housing, includes large buttons and an integrated front-access port, USB 3.0 at 5Gbps (USB 3.1/3.2 Gen 1), for sharing USB devices between connected computers
- THE STARTECH.COM ADVANTAGE: TAA compliant product, backed by a 2-year StarTech.com warranty and free lifetime multilingual 24/5 technical support based in North America
Specifications
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 12 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5 mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Audio connection | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3, 8, 15, 30 s |
| HDCP | Yes |
| Daisy chain | No |
| Chipset | Genesys Logic - GL3523 |
| Audio channels | 5.1 |
| Number of screens supported | 4 |
| Design | |
| Rack mounting | No |
| Product color | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push buttons | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 156000 h |
| Certification | CE, FCC, RoHS |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption | 36 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | EU, JP, UK, US |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 438 mm |
| Height | 43 mm |
| Weight | 959 g |
| Packaging data | |
| Package width | 187 mm |
| Package depth | 253 mm |
| Package height | 102 mm |
| Packaging content | |
| User guide | Yes |
| Rubber feet | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 398 mm |
| Master (outer) case length | 322 mm |
| Master (outer) case height | 291 mm |
| Quantity per master (outer) case | 6 pc(s) |
