StarTech.com TB3CDK2DHUE Wired laptop dock and port replicator

A high-performance Certified Thunderbolt™ 3 docking station with USB Type-C compatibility that features dual 4K 60Hz monitor DSC support from dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5-port USB 3.2 hub with 2 BC 1.2 fast-charge ports, Gigabit Ethernet (PXE Boot/Wake-on-LAN) & headset ports.

Flexible Dual Display Outputs

This universal docking station features two DisplayPort 1.4 video outputs (single 8K30 on HBR3 host) and dual HDMI that can be configured in three different ways:

DisplayPort + DisplayPort
HDMI + HDMI
DisplayPort + HDMI
Video resolutions and outputs depend on the host.

More Downstream USB Ports

With an integrated USB 3.2 hub, this docking station features 5 downstream USB ports:

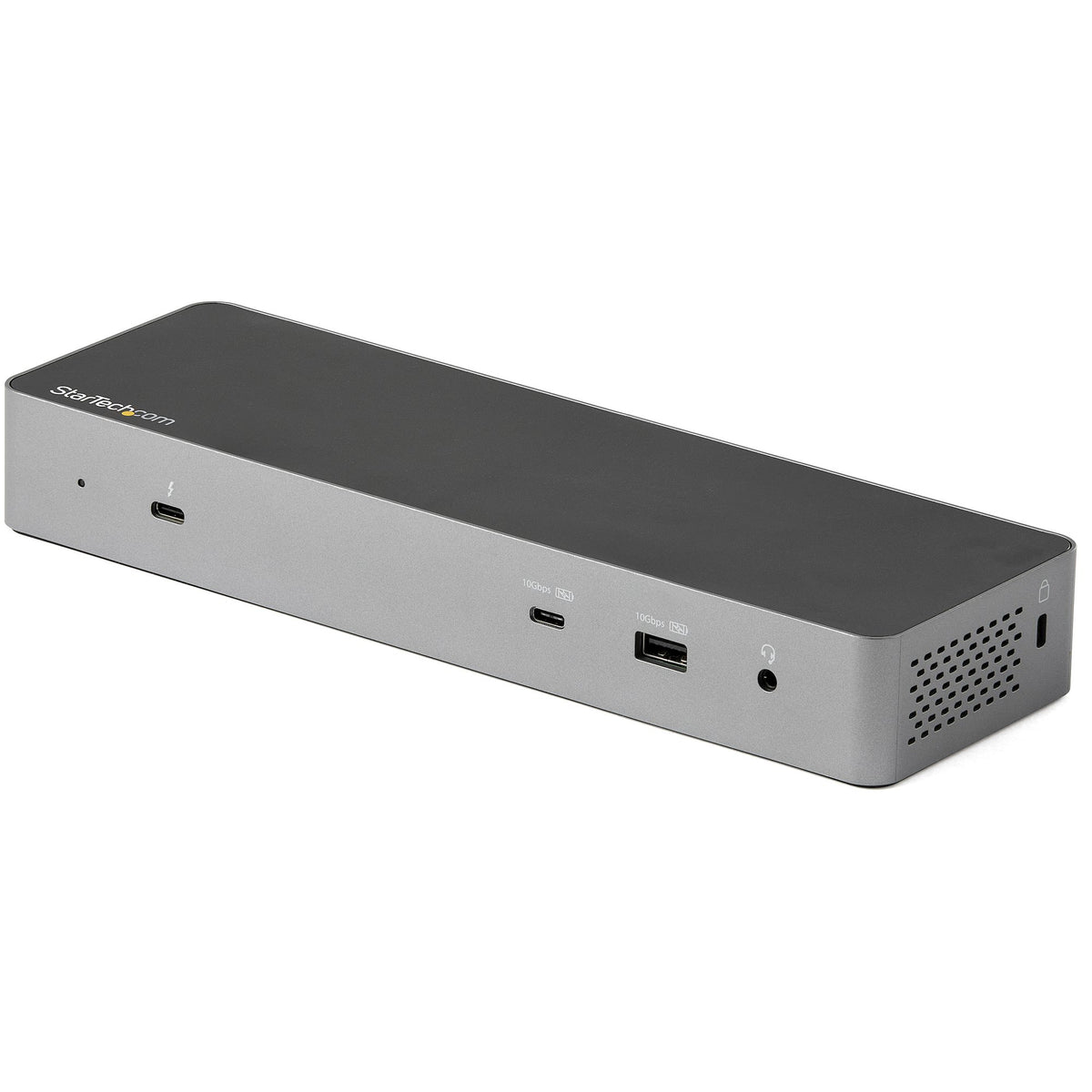

Front:

1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W charging (3A, 5V)
1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 fast charge

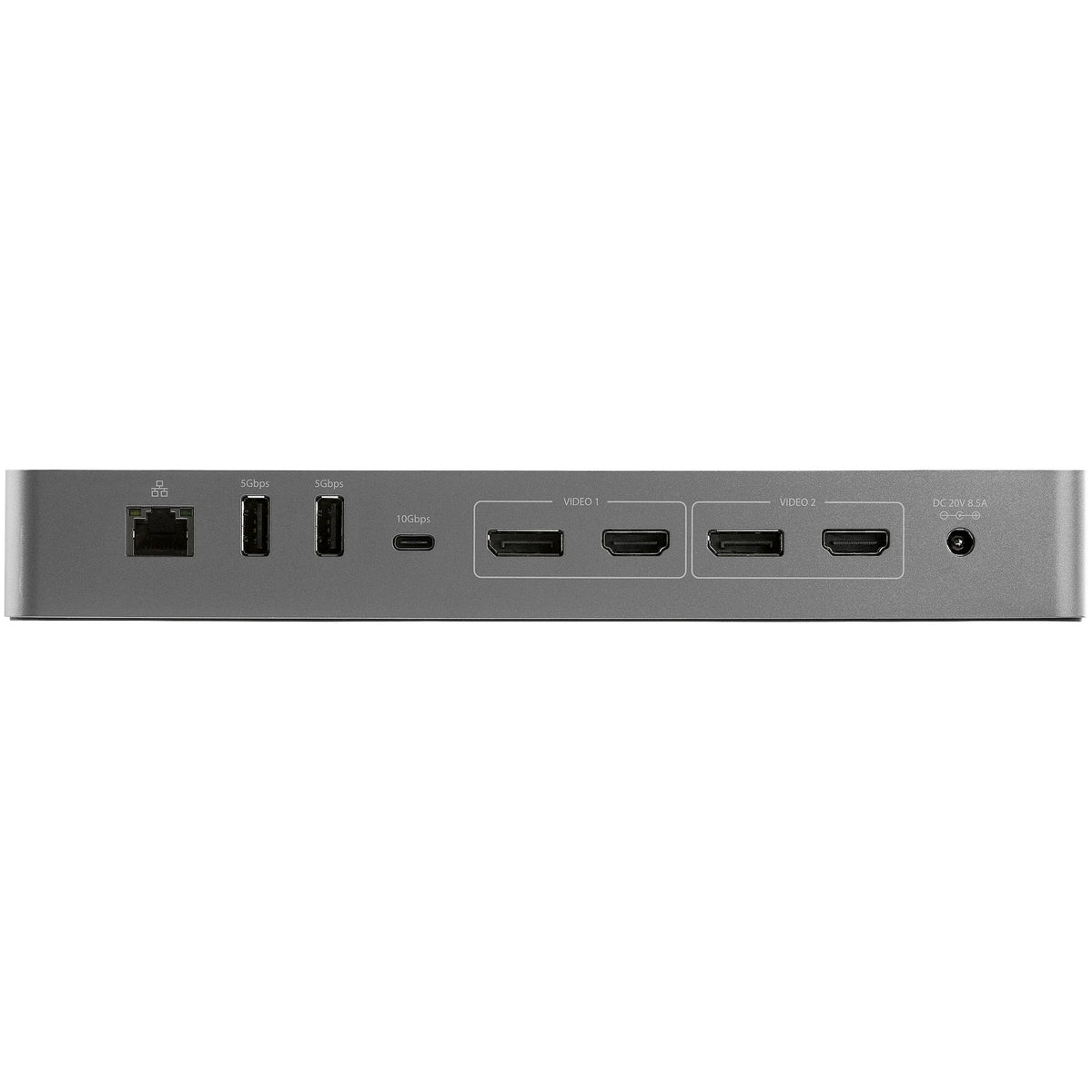

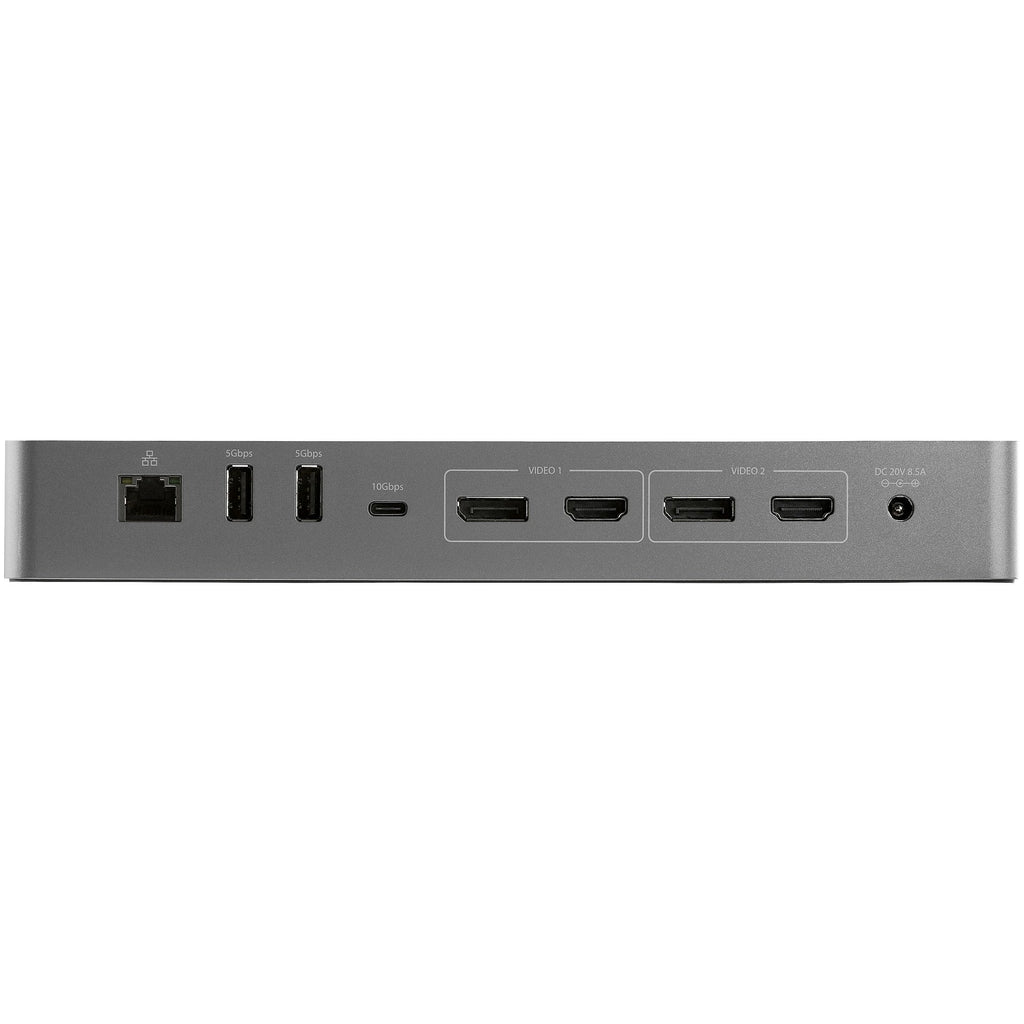

Back:

2x USB 3.2 Gen 1 Type-A (5 Gbps)
1x USB 3.2 Gen 2 Type-C (10 Gbps)
Easy to Set Up and Manage

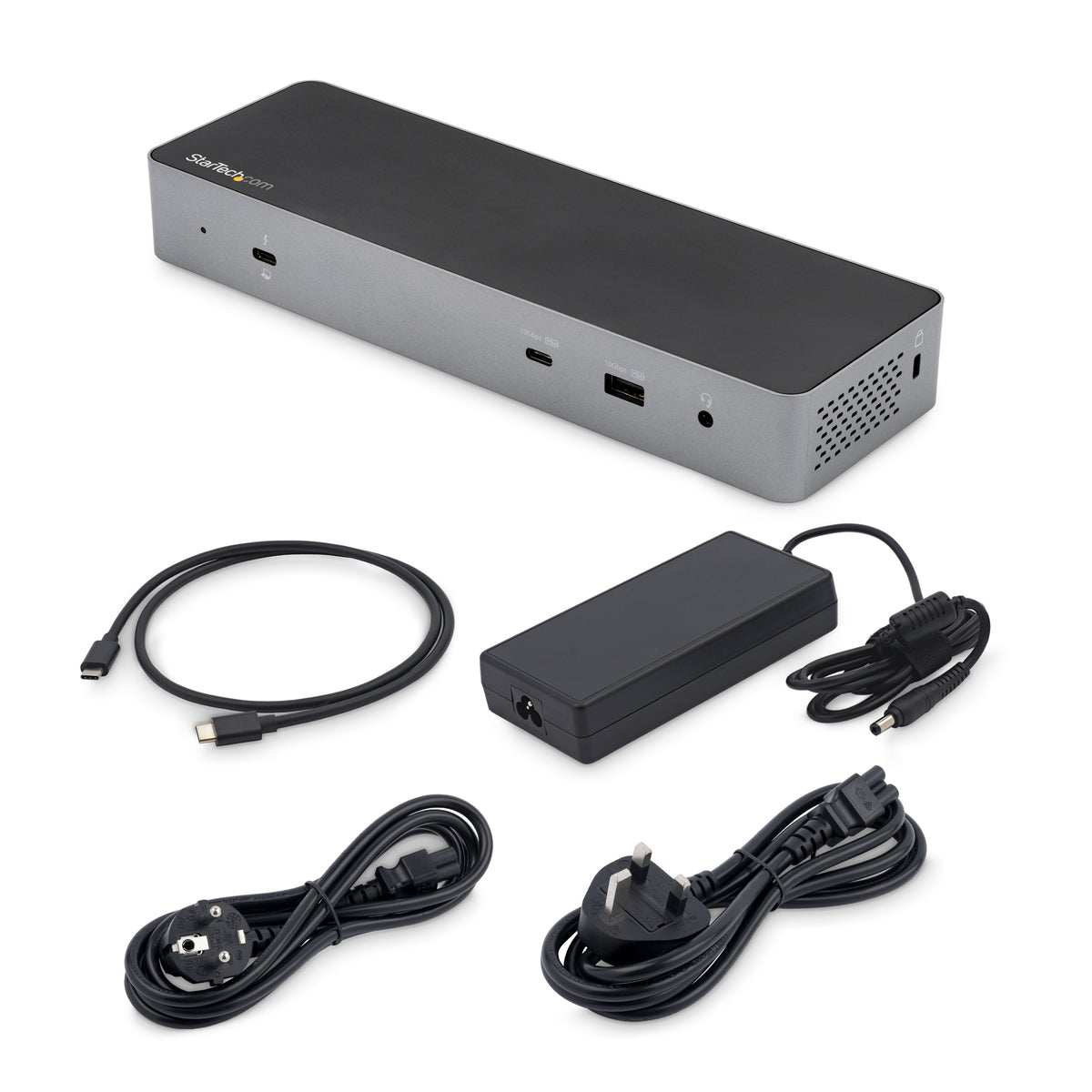

This universal Thunderbolt 3 / USB-C dock features automatic driver configuration and includes a longer 0.8-meter Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for optional stand, K-slot for security lock & MAC Address Changer utility.

Enhance productivity and device management with the StarTech.com Connectivity Tools application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

Advanced Windows Layout Utility: To set up and save custom window layouts.

MAC Address Pass-Through Utility: To improve network security.

USB Event Monitoring Utility: To track and log connected USB devices.

Wi-Fi Auto Switch Utility: Allows users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, visit: www.StarTech.com/Connectivity-Tools

StarTech.com Thunderbolt 3 or USB-C Docking Station - 2x DisplayPort 1.4 4K 60Hz or 2x HDMI - 1x 8K - USB Type C - 96W PD (TB3CDK2DHUE)

• HIGH-PERFORMANCE DOCK: Alternative to TB3DK2DPPDUE - Driverless - Dual 4K 60Hz Monitors - 5x USB Hub (2x fast-charge) with 3x USB-A (1x USB 3.2/3.1 Gen 2 10Gbps) and 2x USB-C 10Gbps - Gigabit Ethernet (WoL/PXE) - Headset ports - 96W PD
• FLEXIBLE MONITOR OUTPUTS: 2x 4K 60Hz video outputs using direct GPU performance without software or compression - For DP or HDMI monitors - Up to 2x 4K 30Hz on USB-C (non-TB3) laptops - 2x DP 1.4 and 2x HDMI 2.0 Thunderbolt 3 dock
• COMPATIBILITY: Compatible with Windows, macOS, and Ubuntu - Supports Thunderbolt or USB4 laptops - Dual display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and M1+ iPad Pro
• 96W PD 3.0 CERTIFIED: Includes power adapter that provides power to the laptop and peripheral devices, unlike consumer docks that use SMART power - 100W peak power (96W sustained)
• DEVICE SECURITY: Thunderbolt/USB-C Dock includes 0.8m Thunderbolt 3 host cable - Mounting holes for optional stands (SSPMSVESA, SSPMSUDWM) - K-slot for security lock
• OUR ADVANTAGE: Connectivity tools included with MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring and Windows Layout Setup
