StarTech.com TB3DK2DHVUE base para portátil y replicador de puertos Alámbrico

StarTech.com TB3DK2DHVUE Wired laptop dock and port replicator

€94,99
€78,50 excl. VAT · VAT 21 % included in the price
Skip to product information
StarTech.com TB3DK2DHVUE base para portátil y replicador de puertos Alámbrico

StarTech.com TB3DK2DHVUE Wired laptop dock and port replicator

Part number:
TB3DK2DHVUE
EAN:
0065030876247
New
Available in 24/48 h

Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.

€94,99
€78,50 excl. VAT · VAT 21 % included in the price

Manufacturer: StarTech.com Ltd., 45 Artisans Crescent, London, Ontario N5V 5E9, Canadá · www.startech.com
EU responsible person: StarTech.com Limited (entidad Europa), Celsiusweg 16, 5928 PR Venlo, Países Bajos. Tel. +31 (0)20 7006 073. Contacto: https://www.startech.com/en-eu/contact

Description

Laptop Docking Station | for Mac & Windows | HDMI | DisplayPort | VGA | with 85W Power Delivery Create a powerful and flexible workstation with this Thunderbolt™ 3 docking station. With dual dedicated video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows® laptop to two 4K monitors using a single Thunderbolt 3 cable. Easy setup and deployment To start working immediately, simply connect the Thunderbolt 3 dock to your laptop using the included Thunderbolt 3 cable. No time-consuming driver installation is required. Speed and flexibility with 3 monitor options Ideal for 4K video editing or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy the ultimate in flexibility for configuring your workstation, with monitor options including DisplayPort (DP), HDMI, and VGA. The docking station offers many dedicated dual-video options: 2x DisplayPort (4096 x 2160 @ 60Hz) 1x DisplayPort + 1x HDMI (4096 x 2160 @ 60Hz) 1x VGA (1920 x 1200 @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz) 1x VGA (1920 x 1200 @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz) The ports you need most Take full advantage of the reliability and speed of a wired network with a Gigabit Ethernet port (supporting PXE Boot and WOL). Connect your USB devices with two USB 3.0 Type-A ports. Power and charge with 85W Power Delivery Through a single 120W power adapter, the Thunderbolt 3 dock simultaneously powers and charges your laptop and your connected peripherals. It provides up to 85W of charging power via Power Delivery. The TB3DK2DHVUE is fully Thunderbolt 3 certified and is backed by a 3-year StarTech.com warranty, with free lifetime technical support.The StarTech.com Advantage

StarTech.com Thunderbolt 3 Docking Station with Dual 4K Video and 85W Power Delivery PD - Mac & Windows

  • HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Plug-and-play setup - Thunderbolt 3 (40Gbps) - Dual video up to 4K 60Hz - 2x DisplayPort, 1x HDMI, 1x VGA - 2-port USB-A hub (USB 3.2 Gen 1 5Gbps) - Gigabit Ethernet - 85W Power Delivery
  • FLEXIBLE MONITOR OUTPUTS: Connect up to two external monitors for dual 4K video with any combination of 2x DP (4K 60Hz), 1x HDMI (4K 60Hz), or VGA (1080p 60Hz) - Video output utilizes GPU performance with no software or compression
  • COMPATIBILITY: Compatible with Windows, macOS, ChromeOS, and Ubuntu - Works with USB-C and Thunderbolt 3/4 laptops - Dual extended displays on M3 and M1/M2/M3 Max and Pro MacBooks - Single display on base M1/M2 MacBooks
  • EASY TO INSTALL AND CONFIGURE: No driver setup or additional display adapters required - 0.5m Thunderbolt 3 host cable included - Front-facing Thunderbolt 3 host port for hassle-free installation
  • OUR ADVANTAGE: 85W adapter to charge the laptop and provide full power to all ports - Tools featuring network MAC address pass-through, WiFi auto-switching, USB event monitoring, and Windows layout configuration

Specifications

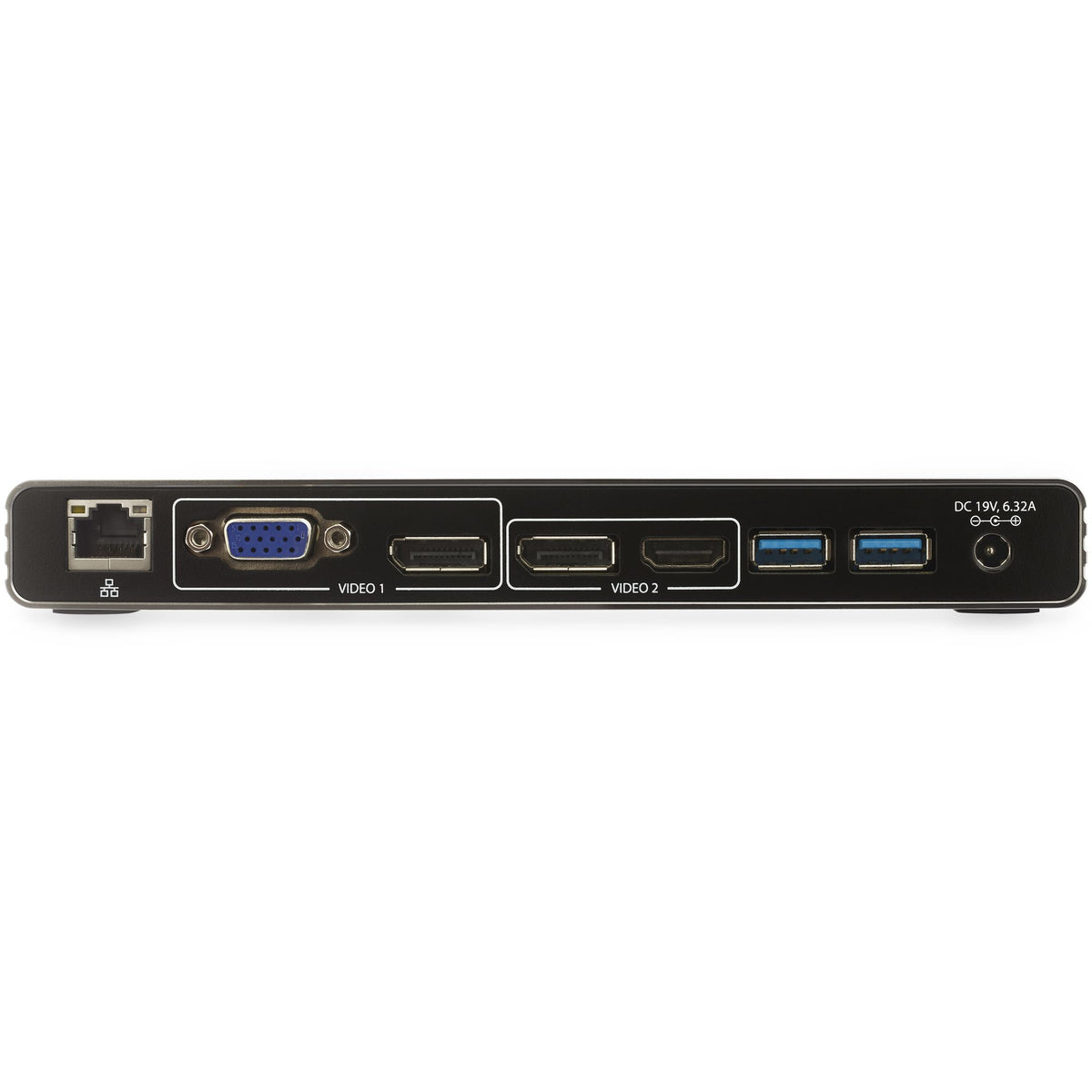

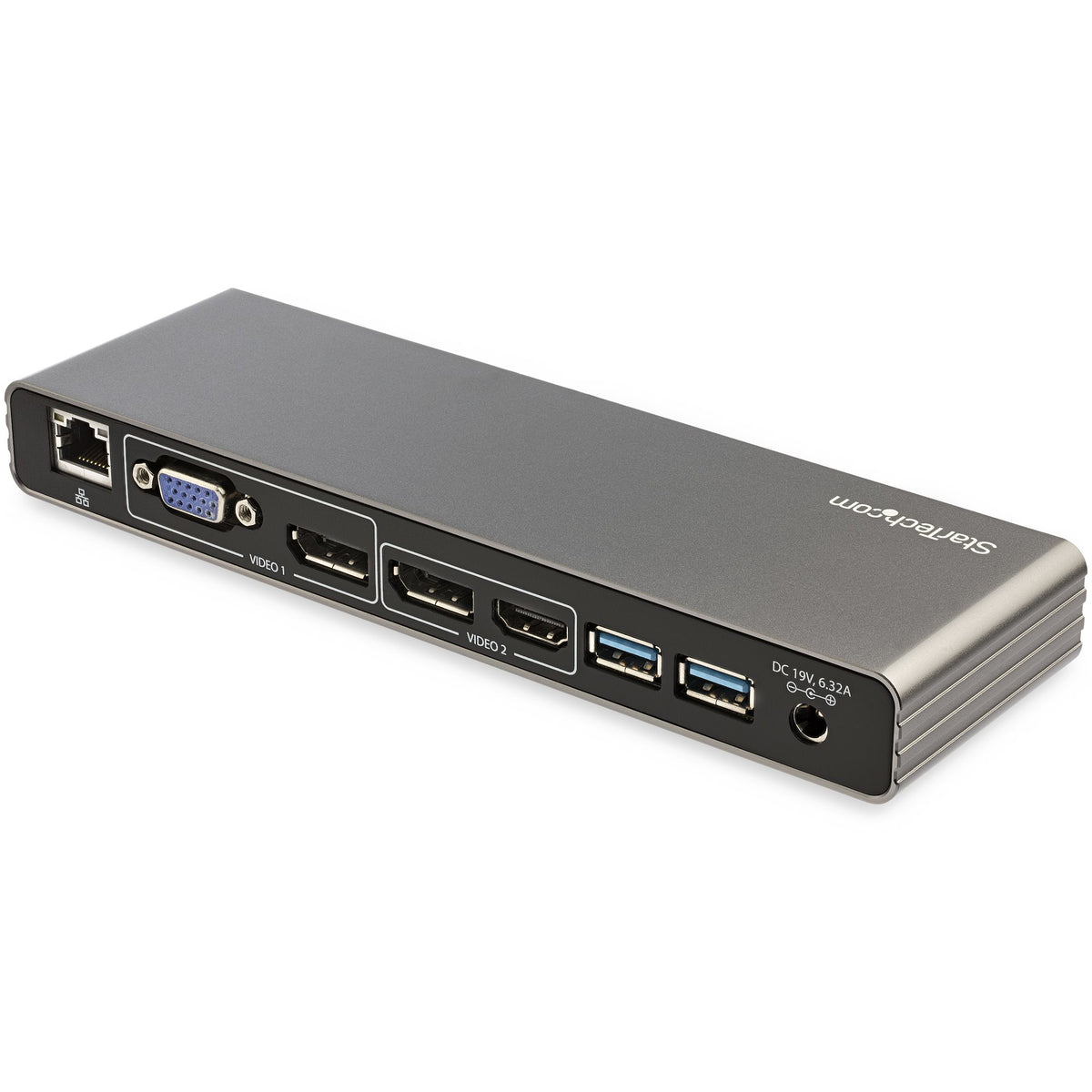

Ports & Interfaces
Connectivity technology Wired
Host interface Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB Power Delivery Yes
USB Power Delivery up to 85 W
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1
DisplayPorts quantity 2
Microphone in No
DC-in jack Yes
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X Yes
Full duplex Yes
Performance
Card reader integrated No
HD type 4K Ultra HD
Maximum digital resolution 4096 x 2160 pixels
Product color Gray
UASP support Yes
Housing material Aluminum
Certification CE, FCC, REACH
Power
Power source type AC
AC input voltage 100 - 240 V
Input current 1.8 A
Output voltage 19 V
Output current 6.32 A
Power consumption 120 W
Plug type Type N
Power plug types included EU, UK
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 20 - 80%
Weight & dimensions
Width 58.6 mm
Depth 196 mm
Height 24 mm
Weight 340 g
Packaging data
Package width 187 mm
Package depth 254 mm
Package height 65 mm
Package weight 1.3 kg

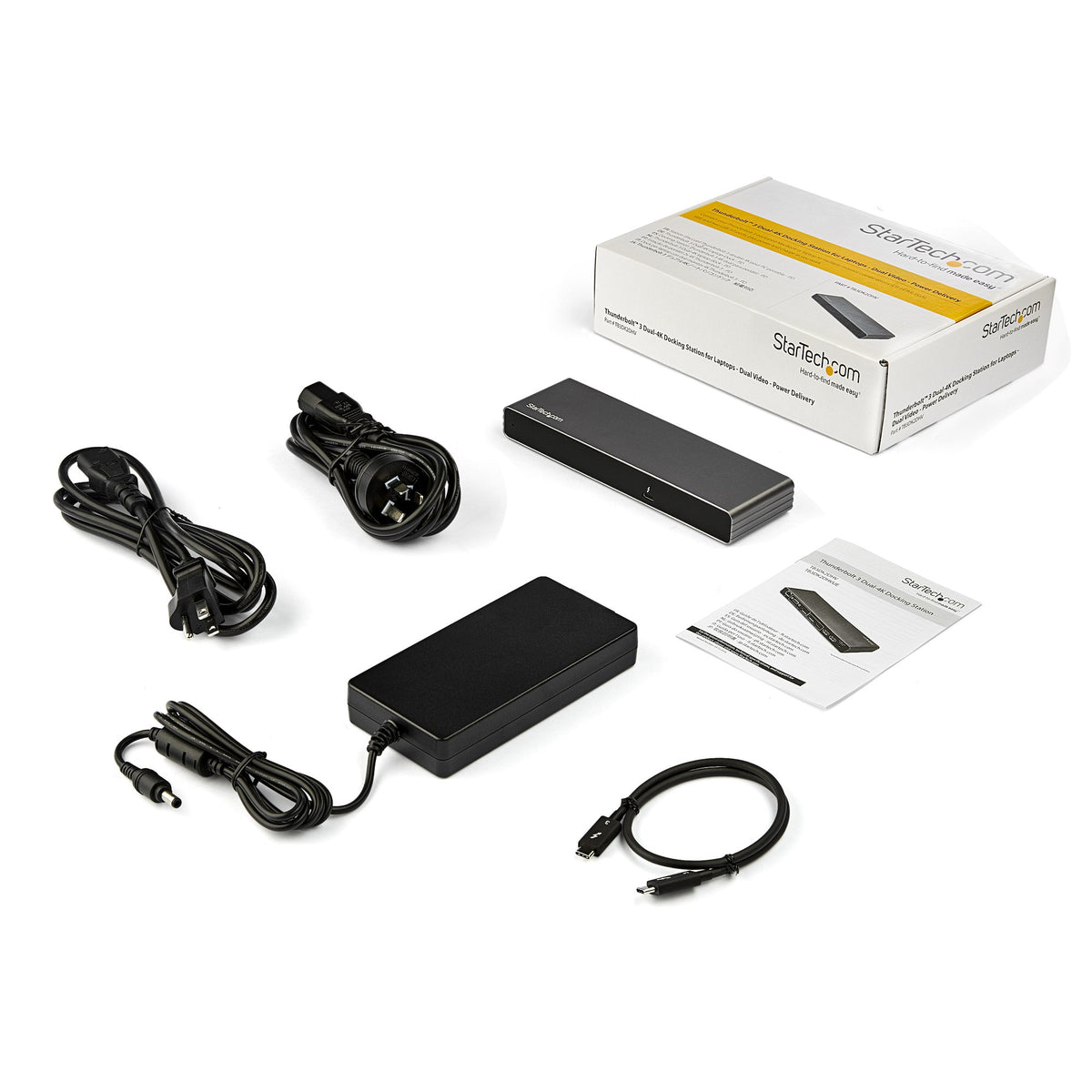

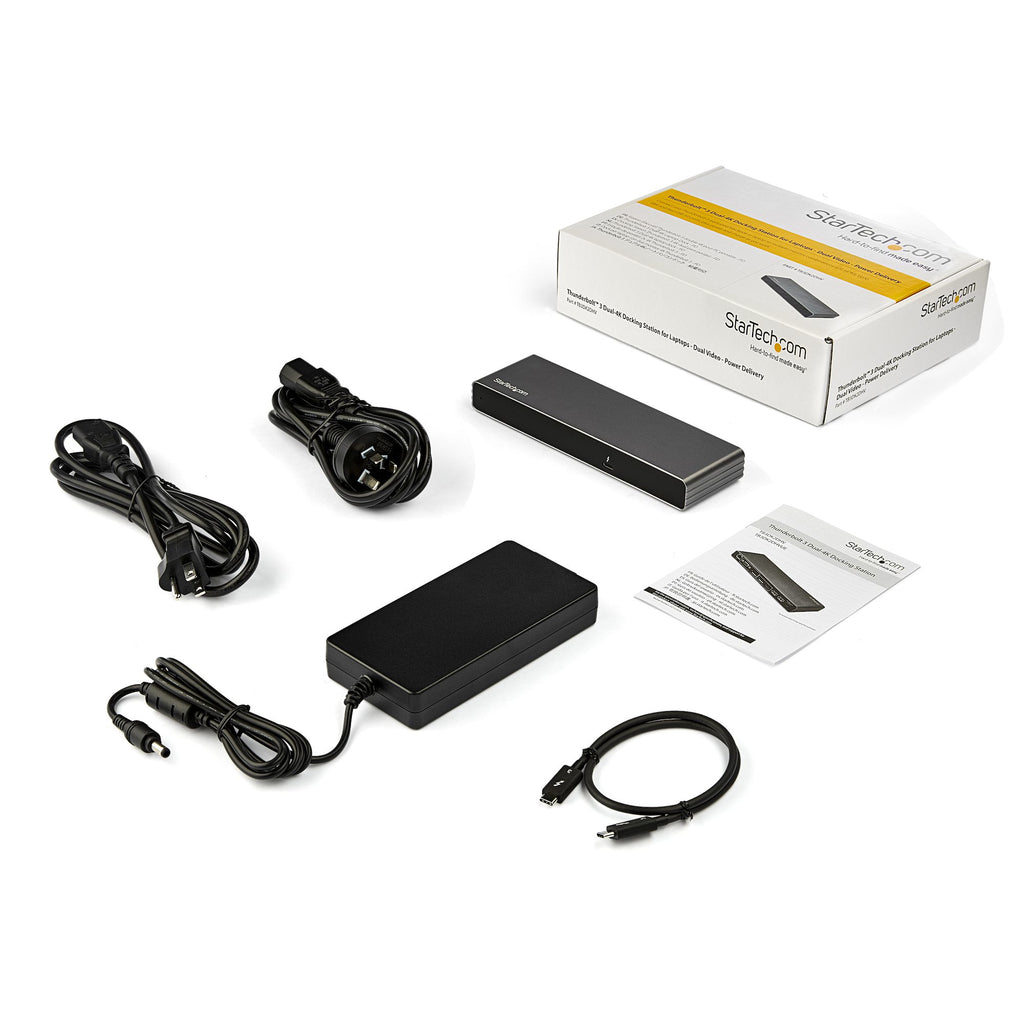

Packaging content
Cables included AC, Thunderbolt
AC adapter included Yes
User guide Yes
Technical details
Sustainability compliance RoHS
Logistics data
Quantity per master (outer) case 20 pc(s)
Master (outer) case width 390 mm
Master (outer) case length 676 mm
Master (outer) case height 280 mm
Harmonized System (HS) code 84733020
Other features
Cable length 0.5 m
Chipset Intel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517
