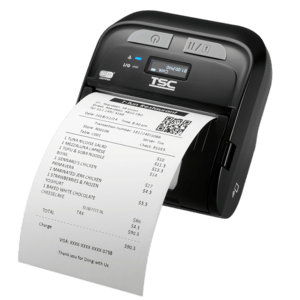

TSC TDM-30, 203 dpi, USB, BT, NFC 99-083A401-0012
TSC TDM-30, 203 dpi, USB, BT, NFC 99-083A401-0012
- Brand:
- TSC
- Part number:
- 99-083A401-0012
- Model:
- TDM-30
- New
- Available in 1 week
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: TSC Auto ID Technology Co., Ltd., 9F., No.95, Minquan Rd., Xindian Dist., New Taipei City 23141, Taiwán · emea_sales@tscprinters.com
EU responsible person: TSC Auto ID Technology EMEA GmbH, Georg-Wimmer-Ring 8b, 85604 Zorneding, Alemania. Tel. +49 (0)8106 37979 000. E-mail: emea_sales@tscprinters.com
Description
mobile printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 80 mm, print width (max.): 72 mm, roll diameter (max.): 40 mm, speed (max.): 102 mm/s, USB, Bluetooth, NFC, RAM: 32 MB, Flash: 16 MB, label sensor, incl.: power supply, power cable, belt clip, battery, QSG
Specifications
| Print speed | |
|---|---|
| Color | No |
| Print technology | Direct thermal |
| Type | Portable printer |
| Paper handling | |
| Media thickness | 60 - 160 µm |
| Maximum roll diameter | 4 cm |
| Supported paper width | 80 mm |
| Maximum print width | 7.2 cm |
| Maximum media length | 2.79 m |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Connectivity technology | Wired & wireless |
| Standard interfaces | Bluetooth, USB 2.0 |
| Network | |
| Ethernet | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Features | |
| Built-in barcodes | 1D, 2D, AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, QR Code, UPC-A, UPC-E |
| Page description languages | CPCL-native, DPL, EPL2, ESC/POS, ZPL II |
| Storage drive | Flash |
| Flash memory | 16 MB |
| RAM capacity | 0.032 GB |
| Certification | RoHS, WEEE, REACH |
| Design | |
| Product color | Black |
| Built-in display | No |
| Power | |
| Power source type | Battery |
| Battery voltage | 7.4 V |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 49.5 mm |
| Height | 116 mm |
| Weight | 375 g |
| Packaging content | |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3080 mAh |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Other features | |
| LED indicators | Status |
| International Protection (IP) code | IP42 |
| Rechargeable | Yes |
| Compatible formats | Reflective sensor model: receipt paper, bline receipt paper (black mark in printing side) & selected label, Transmissive sensor model: receipt paper, bline receipt paper (black mark in printing side or backside) & label with gap |
| Storage type | Flash |
