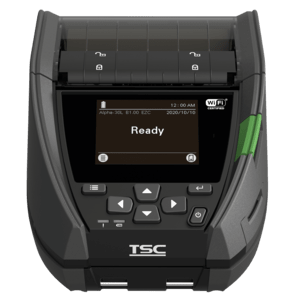

TSC Alpha-30L USB-C BT NFC 8 dots/mm linerless RTC
TSC Alpha-30L USB-C BT NFC 8 dots/mm linerless RTC
- Brand:
- TSC
- Part number:
- A30L-A001-0012
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: TSC Auto ID Technology Co., Ltd., 9F., No.95, Minquan Rd., Xindian Dist., New Taipei City 23141, Taiwán · emea_sales@tscprinters.com
EU responsible person: TSC Auto ID Technology EMEA GmbH, Georg-Wimmer-Ring 8b, 85604 Zorneding, Alemania. Tel. +49 (0)8106 37979 000. E-mail: emea_sales@tscprinters.com
Description
mobile printer, retail, industrial, warehouse, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 80 mm, print width (max.): 72 mm, roll diameter (max.): 67 mm, speed (max.): 127 mm/s, USB-C, Bluetooth (iOS), NFC, Micro SD slot, linerless platen, real-time clock, LCD display, RAM: 128 MB, Flash: 128 MB, incl.: power supply unit, power cable (EU), belt clip, battery, QSG
Specifications
| Print speed | |
|---|---|
| Print technology | Direct thermal |
| Color | Yes |
| Maximum resolution | 203 x 203 DPI |
| Number of printable dots | 8 dot |
| Print speed | 127 mm/s |
| Maximum print width | 7.2 cm |
| Paper handling | |
| Auto-cutter | Yes |
| Maximum roll diameter | 6.7 cm |
| Media thickness | 0.06 - 0.16 mm |
| Supported paper width | 80 mm |
| Core diameter | 1.27 cm |
| Ports & interfaces | |
| Connectivity technology | Wired & wireless |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| USB port | Yes |
| Optional connectivity | Bluetooth, USB 2.0 |
| Performance | |
| Page description languages | ESC/POS, TSPL-EZ |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Built-in barcode | 1D, 2D, China post, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, ITF-14, Interleaved 2/5, LOGMARS, Planet, Standard 2/5, TELEPEN, UPC-A |
| Processor built-in | Yes |
| Certification | FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/Safety, CCC, RoHS, WEEE |
| Design | |
| Product color | Black, Gray |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 5.84 cm (2.3") |
| Display resolution | 320 x 240 pixels |
| Color display | Yes |
| Backlight display | Yes |
| Control type | Buttons |
| Battery | |

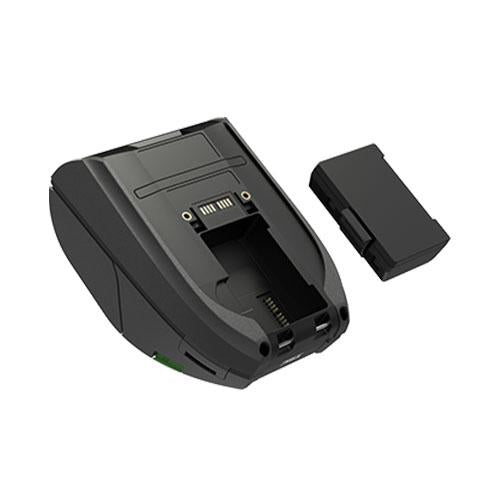

| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3030 mAh |
| System requirements | |
| Mobile operating systems supported | iOS |
| Operational conditions | |
| Operating relative humidity | 10 - 90% |
| Storage relative humidity | 10 - 90% |
| Operating temperature | -20 - 50 °C |
| Storage temperature | -30 - 70 °C |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 79 mm |
| Height | 173 mm |
| Weight | 745 g |
| Packaging content | |
| Package type | Box |
| Technical details | |
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS, TÜV mark, UL, WEEE, cUL |
| Other features | |
| Warranty period | 2 year(s) |
