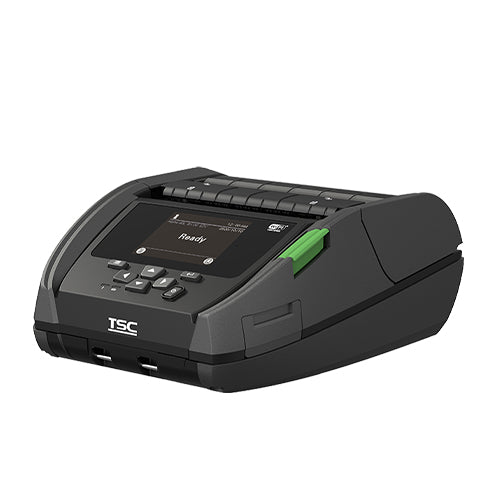

TSC Alpha-40L USB Bluetooth NFC 8 dpi RTC display
TSC Alpha-40L USB Bluetooth NFC 8 dpi RTC display
- Brand:
- TSC
- Part number:
- A40LR-A001-0002
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: TSC Auto ID Technology Co., Ltd., 9F., No.95, Minquan Rd., Xindian Dist., New Taipei City 23141, Taiwán · emea_sales@tscprinters.com
EU responsible person: TSC Auto ID Technology EMEA GmbH, Georg-Wimmer-Ring 8b, 85604 Zorneding, Alemania. Tel. +49 (0)8106 37979 000. E-mail: emea_sales@tscprinters.com
Description
mobile printer, direct thermal, 8 dots/mm (203 dpi), media width (max.): 112 mm, print width (max.): 104 mm, roll diameter (max.): 67 mm, speed (max.): 127 mm/s, USB (2.0), Bluetooth (iOS, class 5.0), NFC, Micro SD slot, 7 function keys, real-time clock, LCD display, RFID, emulation: OPOS, RAM: 128 MB, Flash: 128 MB, incl.: power supply unit (connection: EU), power cable (connection: EU), belt clip
Specifications
| Print speed | |
|---|---|
| Print technology | Direct thermal |
| Color | No |
| Maximum resolution | 203 x 203 DPI |
| Print dots | 8 dots |
| Print speed | 127 mm/s |
| Maximum printing width | 10.4 cm |
| Maximum print height | 2.79 m |
| Paper handling | |
| Auto-cutter | Yes |
| Maximum roll diameter | 6.7 cm |
| Supported paper width | 50.8 - 112 mm |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| USB port | Yes |
| Performance | |
| Page description languages | ESC/POS, TSPL-EZ |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Built-in barcodes | 1D, 2D, China post, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, ITF-14, Interleaved 2/5, LOGMARS, Planet, Standard 2/5, TELEPEN, UPC-A |
| Built-in processor | Yes |
| Certification | RoHS, WEEE, REACH, China RoHS |
| Design | |
| Product color | Black, Grey |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 5.84 cm (2.3") |
| Display resolution | 320 x 240 pixels |
| Color display | Yes |
| Backlight display | Yes |
| Control type | Buttons |
| Power control | |
| Battery voltage | 7.4 V |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 6200 mAh |
| System requirements | |
| Mobile operating systems supported | iOS |
| Operational conditions | |
| Operating relative humidity | 10 - 90% |
| Storage relative humidity | 10 - 90% |
| Operating temperature | -20 - 50 °C |
| Storage temperature | -30 - 70 °C |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 191 mm |
| Height | 79 mm |
| Weight | 985 g |
| Packaging | |
| Package type | Box |
| Technical details | |
| Sustainability certificates | China RoHS, REACH, RoHS, WEEE |
