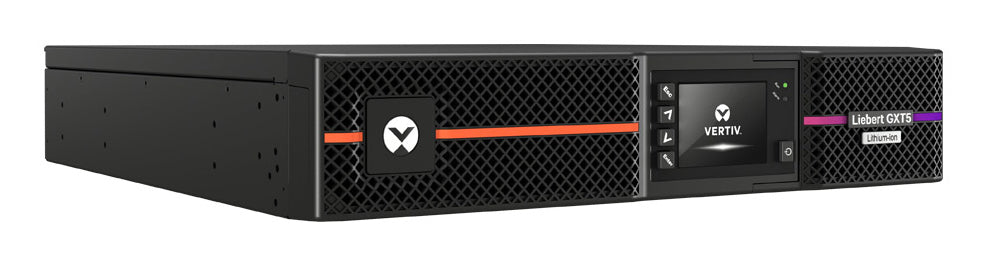

Vertiv GXT5-3000IRT2UXLN UPS (rack mount / external) AC 230 V
€2.916,99
€2.410,74 excl. VAT
· VAT 21 % included in the price
Skip to product information
Vertiv GXT5-3000IRT2UXLN UPS (rack mount / external) AC 230 V
- Brand:
- Vertiv
- Part number:
- GXT5-3000IRT2UXLN
- EAN:
- 4061471435261
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
€2.916,99
€2.410,74 excl. VAT
· VAT 21 % included in the price
Manufacturer: Vertiv Group Corporation, 1050 Dearborn Drive, Columbus, OH 43085, Estados Unidos · www.vertiv.com
EU responsible person: Vertiv S.r.l., Via Leonardo da Vinci 16/18, 35028 Piove di Sacco (PD), Italia
Description
UPS (rack mount / external) - AC 230 V - 3000 Watts - 3000 VA - Lead Acid - RS-232, USB - output connectors: 7 - 2U - with RDU101 network card
Specifications
| Features | |
|---|---|
| UPS topology | Double conversion (online) |
| Output power capacity (VA) | 3 kVA |
| Output power | 3000 W |
| Waveform | Pure sine wave |
| Input operation voltage (min) | 115 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output voltage regulation | ±3% |
| Efficiency | 95% |
| Power factor | 1 |
| ECO mode | Yes |
| Noise level | 48 dB |
| Overload protection | Yes |
| Audible alarm(s) | Yes |

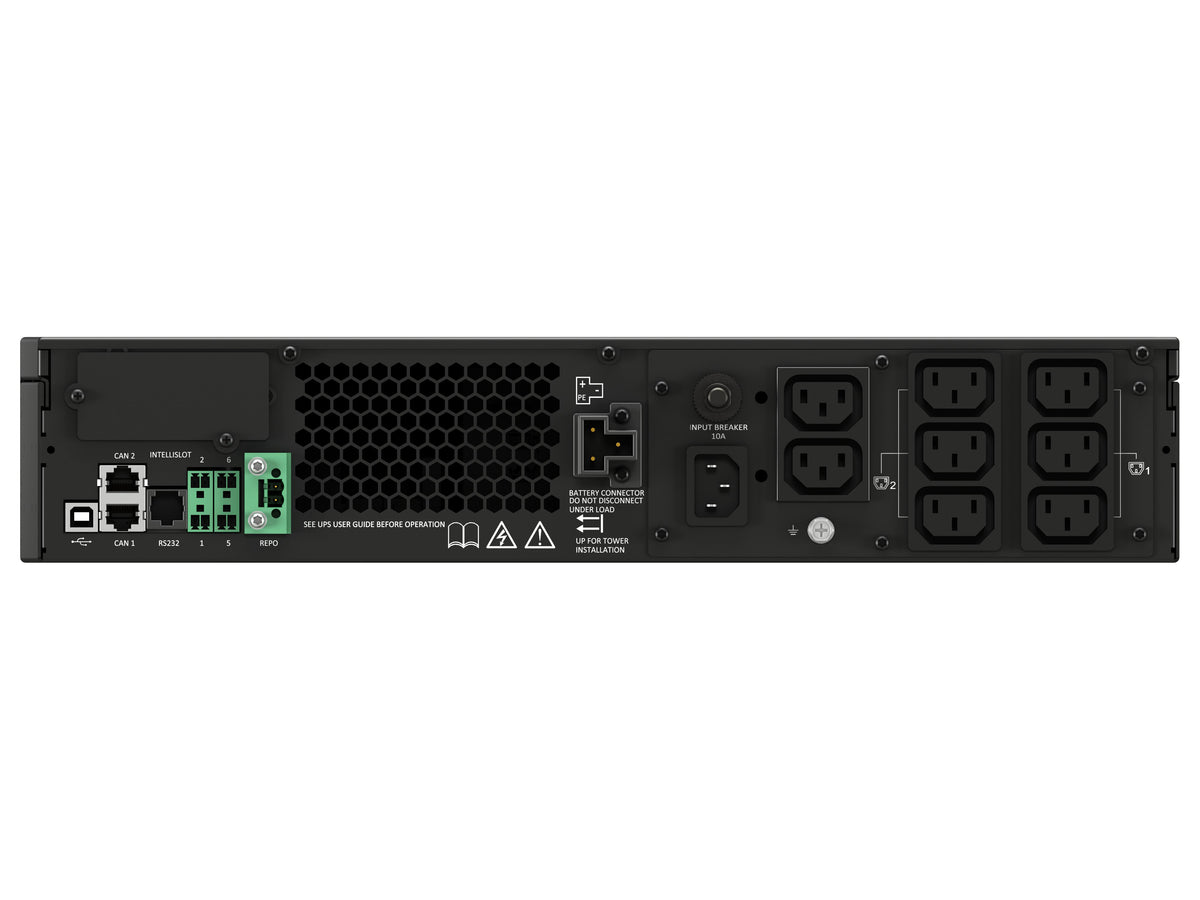

| Ports and interfaces | |
| AC outlet type | C13 coupler, C19 coupler |
| Connector | C20 coupler |
| Quantity of AC outlets | 7 AC outlets |
| USB port | Yes |
| Quantity of USB 2.0 ports | 1 |
| USB port type | USB Type B |
| Modem ports (RJ-11) | 1 |
| Ethernet LAN (RJ-45) quantity of ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries included | 6 piece(s) |
| Typical backup time at full load | 6.5 min |
| Typical backup time at half load | 14.5 min |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Product color | Black |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Yes |
| Environmental conditions | |
| Operating temperature range | 0 - 40 °C |
| Storage temperature range | -15 - 40 °C |
| Operating relative humidity range | 0 - 95% |
| Storage relative humidity range | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Regulatory approvals | |
| Compliance certificates | REACH, RoHS, WEEE |
| Packaging content | |
| Cables included | USB cable |
| User manual | Yes |
| Quick installation guide | Yes |
| Safety regulation & standards | |
| Safety | EN 62040-1:2008+A1:2013 |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Weight and dimensions | |
| Width | 430 mm |
| Depth | 546 mm |
| Height | 85 mm |
| Weight | 19.5 kg |
| Packaging | |
| Package width | 570 mm |
| Package depth | 597 mm |
| Package height | 242 mm |
| Package weight | 27 kg |
| Logistics data | |
| Country of origin | China |
