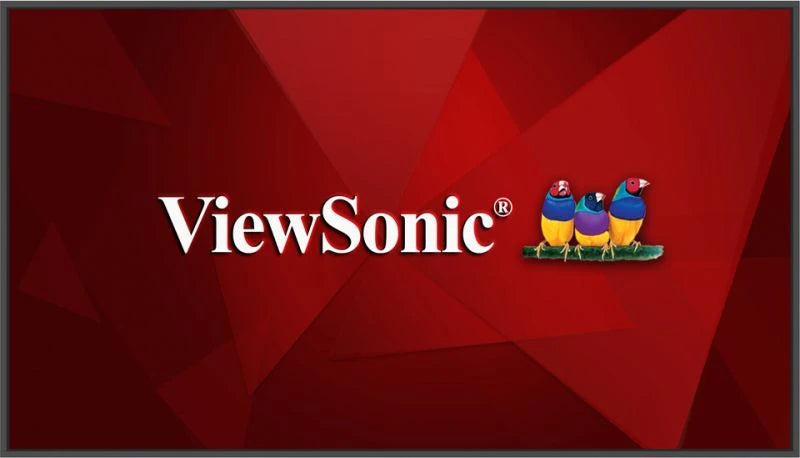

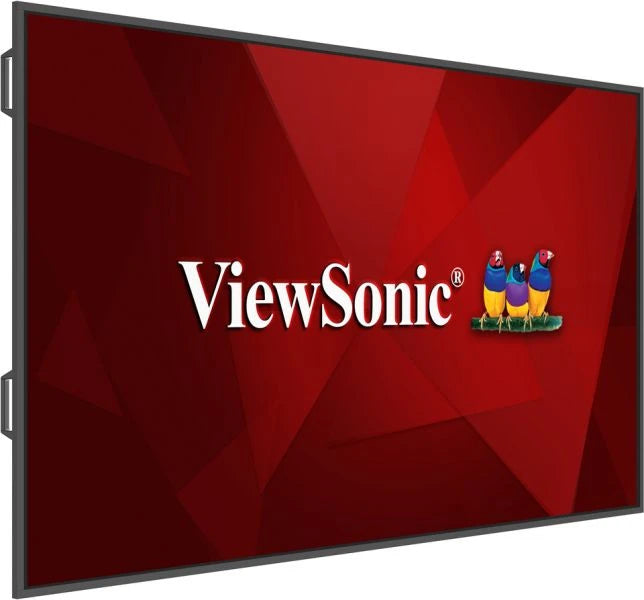

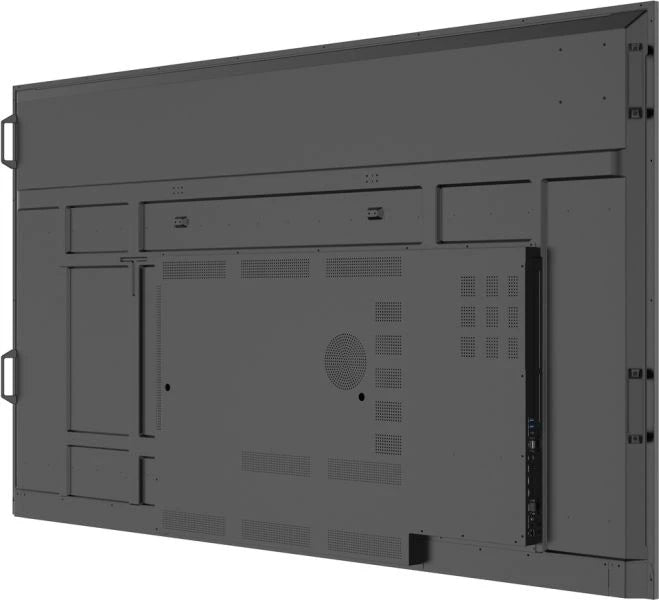

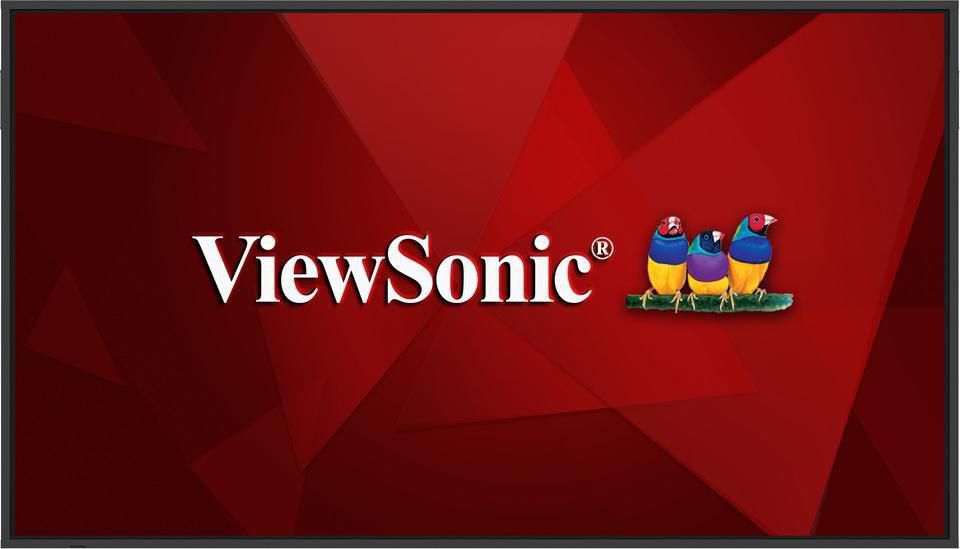

Viewsonic CDE86G3-1C Signage Display Flat Panel for Signage
€2.042,99
€1.688,42 excl. VAT
· VAT 21 % included in the price
Skip to product information
Viewsonic CDE86G3-1C Signage Display Flat Panel for Signage
- Brand:
- ViewSonic
- Part number:
- CDE86G3-1C
- EAN:
- 0766907035681
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
€2.042,99
€1.688,42 excl. VAT
· VAT 21 % included in the price
Manufacturer: ViewSonic Netherlands B.V., Haaksbergweg 75, 1101 BR Amsterdam, Países Bajos · www.viewsonic.com
Description
- Indoor Digital signage flat panel Black
- 2.18 m (86") 3840 x 2160 Pixels LCD 500 cd / m²
- Direct-LED 60 Hz 8 ms
- Ethernet
- Built-in speaker(s) 20 W
Specifications
| Display | |
|---|---|
| Display type | TFT |
| LED backlight | Yes |
| LED backlight type | Direct-LED |
| Display diagonal | 2.18 m (86") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 Pixels |
| Display brightness | 500 cd / m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Active display area (W x H) | 941.184 x 529.416 mm |
| Display lifetime | 50000 h |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Surface hardness | 3H |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
| HDMI input ports quantity | 3 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 3 |
| USB version | 2.0 |
| USB connector | USB Type-A, USB Type-C |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| PC audio input | Yes |
| RS-232 | Yes |
| Digital audio optical out | 1 |
| PC audio output | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |

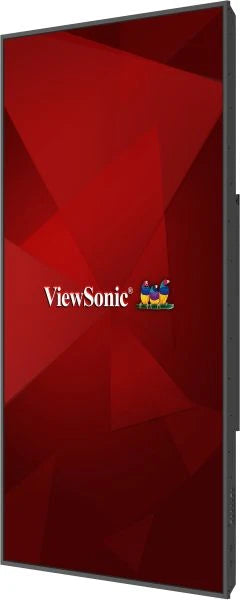

| Orientation | Landscape/Portrait |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.59 cm |
| Bezel width (side) | 1.59 cm |
| Bezel width (top) | 1.59 cm |
| Anti-glare screen | Yes |
| Performance | |
| Purpose | Commercial |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Power | |
| Power consumption | 138.3 W |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | F |
| Energy consumption (SDR) per 1000 hours | 220 kWh |
| Energy consumption (HDR) per 1000 hours | 219 kWh |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Display width | 1933.8 mm |
| Display depth | 79.7 mm |
| Display height | 1103.8 mm |
| Display weight | 39.5 kg |
| Weight | 42.8 kg |
| Packaging data | |
| Package width | 2095 mm |
| Package depth | 185 mm |
| Package height | 1220 mm |
| Package weight | 58.9 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI, RS-232 |
| Mounting kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Pallet length | 114 cm |
| Pallet width | 2.17 m |
| Pallet height | 134 cm |
| Harmonized System (HS) code | 8528521000 |
| Network | |
| Ethernet | Yes |
| Technical details | |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP |
| Compliance certificates | CB, CE, EAC, Federal Communications Commission (FCC), RCM, REACH, RoHS, WEEE, cTUVus |
