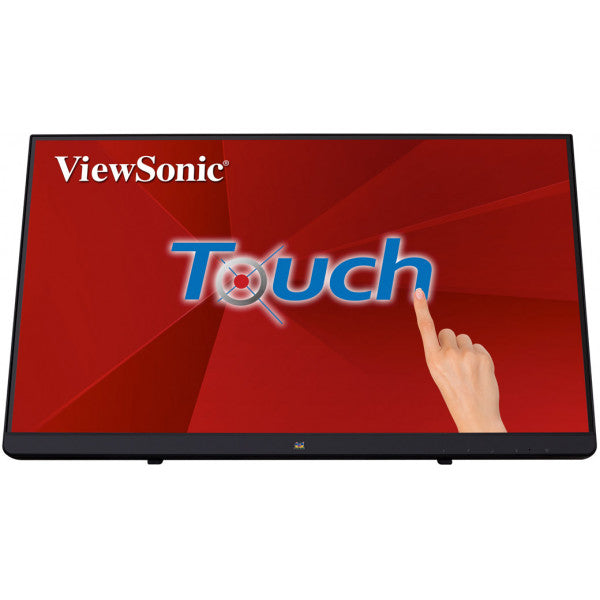

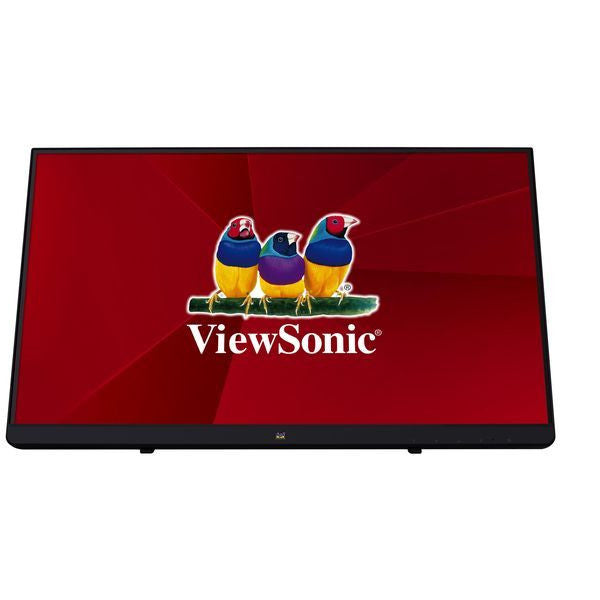

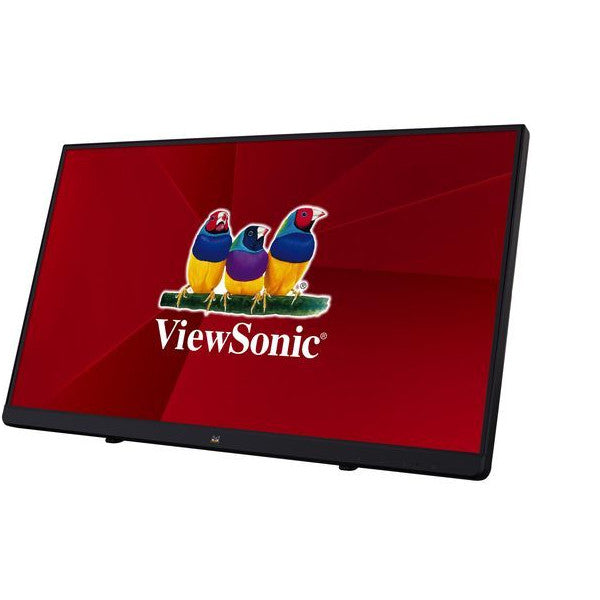

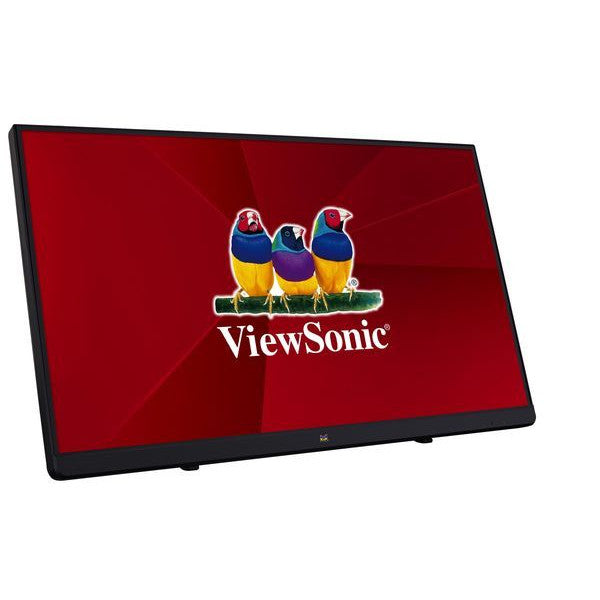

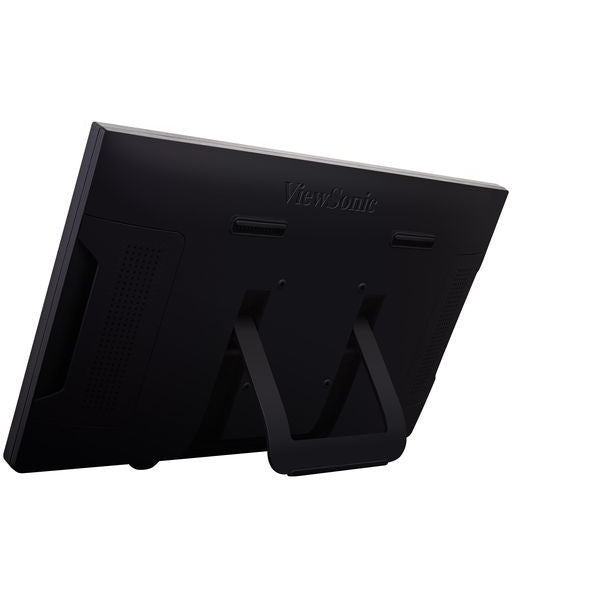

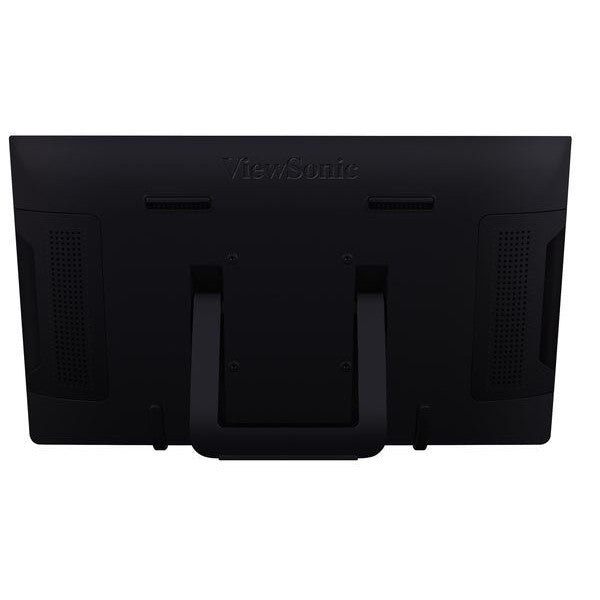

Viewsonic TD2230 monitor 54.6 cm
Viewsonic TD2230 monitor 54.6 cm
- Brand:
- ViewSonic
- Part number:
- TD2230
- EAN:
- 0766907842418
- New
- Available in 24/48 h
Shipping: €6.99 in Spain, €8.99 to the rest of the EU, free from €121 incl. VAT (€100 excl. VAT). Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: ViewSonic Netherlands B.V., Haaksbergweg 75, 1101 BR Amsterdam, Países Bajos · www.viewsonic.com
Description
The ViewSonic TD2230 is a 22” (21.5” viewable) Full HD display with 10-point projected capacitive touch and SuperClear® IPS panel, offering a responsive, intuitive touch experience with high-quality image performance at wide viewing angles for multi-user interactive environments. Users can tap, swipe, slide, pinch and nudge their fingers directly on the touch screen during group activities. This display is ideal for use as an informative kiosk in hospitality, retail, healthcare and corporate sectors, utilising customised applications for simple touch interaction. It is also suitable for group studies at schools, encouraging interactive learning, or for families enjoying multimedia entertainment or gaming at home.
22" 10-point Touch Screen Monitor
- 54.6 cm (21.5") Black
- Built-in speakers
- USB charging port type: USB Type-B HDMI HDMI version: 1.4 DisplayPorts quantity: 1 DisplayPort version: 1.2
- Screen shape: Flat
- Maximum refresh rate: 76 Hz Response time: 5 ms
- 1920 x 1080 pixels Full HD Display type: ADS
- Energy efficiency class (SDR): E EPEAT Bronze, ErP CE, REACH, RoHS
Specifications
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Display type | ADS |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touch points | 10 |
| Display brightness | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Maximum refresh rate | 76 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.24825 x 0.24825 mm |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 76 Hz |
| Display diagonal (metric) | 54.6 cm |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| MAC operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
| Multimedia | |
| Number of speakers | 2 | RMS rated power | 6 W |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |

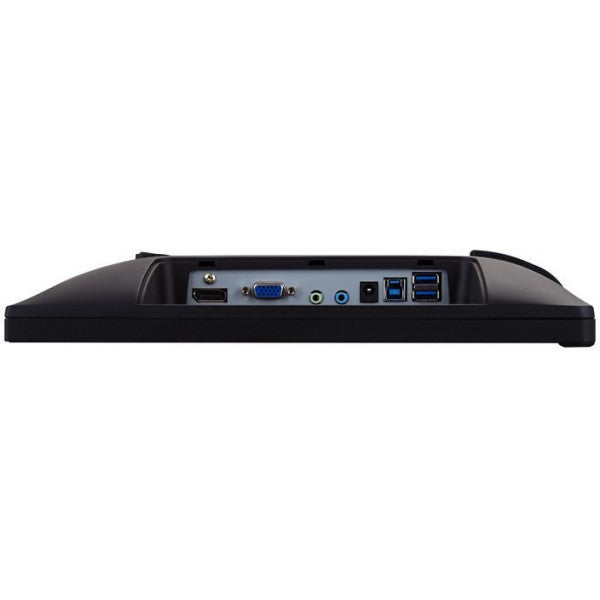

| Ports & interfaces | |
| Built-in USB connector | Yes |
| USB connector version | 3.2 Gen 1 (3.1 Gen 1) |
| USB charging port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | 1 |
| Audio output | 1 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 20 - 70° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 12 |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width (with stand) | 490 mm |
| Depth (with stand) | 47 mm |
| Height (with stand) | 299 mm |
| Weight (with stand) | 3.58 kg |
| Packaging data | |
| Package width | 550 mm |
| Package depth | 114 mm |
| Package height | 371 mm |
| Package weight | 4.7 kg |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), HDMI, USB |
| Sustainability | |
| Sustainability certificates | EPEAT Bronze, ErP |
| Other features | |
| Display viewable area (H x V) | 476.64 x 268.11 mm |
| Weight | 3.6 kg |
| Compliance certificates | CE, REACH, RoHS |
| Certification | cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Pallet width | 120 cm |
| Pallet length | 100 cm |
| Pallet height | 197.5 cm |
| Harmonized System (HS) code | 8528521000 |
