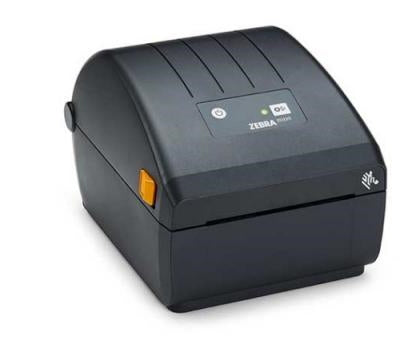

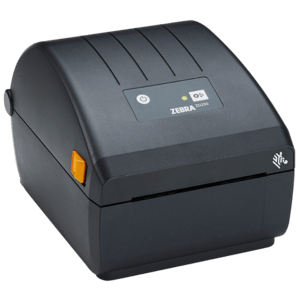

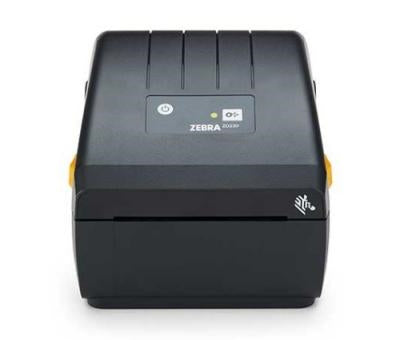

Zebra ZD230 203 dpi EPLII ZPLII USB BT Wi-Fi ZD23042-D0ED02EZ
Zebra ZD230 203 dpi EPLII ZPLII USB BT Wi-Fi ZD23042-D0ED02EZ
- Brand:
- Zebra
- Part number:
- ZD23042-D0ED02EZ
- Model:
- ZD230
- New
- Available in 24/48 h
Shipping: €8.99 to Spain and the rest of the EU, free from €250 incl. VAT. Delivery in 24 h to 1 week depending on availability and address.
Manufacturer: Zebra Technologies Corporation, 3 Overlook Point, Lincolnshire, IL 60069, Estados Unidos · support.zebra.com
EU responsible person: Zebra Technologies Spain SLU, Martínez Villergas 52, Bloque C, 28027 Madrid, España - https://support.zebra.com/es/contact-support
Description
label printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 112 mm, print width (max.): 104 mm, roll diameter (max.): 127 mm, speed (max.): 152 mm/s, USB, Bluetooth (class 4.1), Wi-Fi (802.11ac), emulation: EPLII, ZPLII, XML, incl.: cable (USB), power supply, power cable (EU, UK), color: black
Specifications
| Print speed | |
|---|---|
| Print technology | Direct thermal |
| Color | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 152 mm/s |
| Maximum print width | 10.4 cm |
| Paper handling | |
| Ribbon width | 10.9 cm |
| Ribbon length | 300 m |
| Maximum label width | 11.2 cm |
| Maximum label length | 0.991 m |
| Maximum roll diameter | 12.7 cm |
| Media thickness | 0.08 - 0.1905 mm |
| Supported paper width | 25.4 - 112 mm |
| Core diameter | 1.27 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Performance | |
| Page description languages | EZPL, XML, ZPL II |
| Internal memory | 128 MB |
| Flash memory | 256 MB |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Number of characters | 23 |
| Certification | IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
| Design | |
| Product color | Black |
| Built-in display | No |
| Display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating relative humidity | 10 - 90% |
| Storage relative humidity | 5 - 95% |
| Operating temperature | 4.4 - 41 °C |
| Storage temperature | -40 - 60 °C |
| Weight & dimensions | |
| Width | 176 mm |
| Depth | 220 mm |
| Height | 151 mm |
| Weight | 1.1 kg |
| Packaging content | |
| Quantity per pack | 1 piece(s) |
| Packaging content | |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
